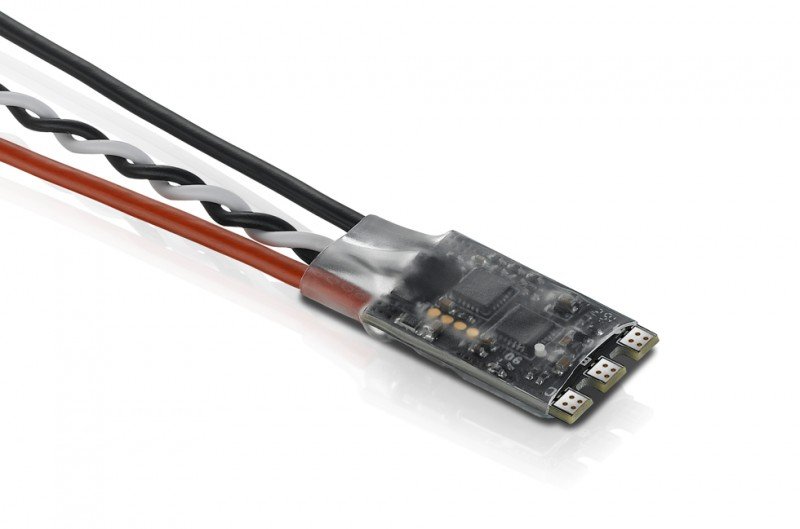

HOBBYWING XRotor micro 30A BLHeli - 30901071  [HW-30901071]

Super Small & Light

ESCs with incredibly little size and light-weight are
particularly created for competition FPV drones.

Quality Components

The utilization of F396 48MHz MCU, brought in MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 layers of PCBs as well as other
quality components guarantees less temperature, greater effectiveness and rapider reaction.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the signal cable (on ESCs), and program 4 ESCs at the same time after
connecting their journey controller towards the BLHeliSuite computer software in the event that journey controller makes use of the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the motor retardation and enables
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, trip some time heat
dissipation. The ESCs help OneShot125 high speed throttle
signal and regular throttle sign (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle signal cable effortlessly reduces disturbance stated in alert
transmission and makes the trip even more stable and dependable.

Specifications

• Cont./Peak Current : 30A/40A
• LiPo Cells : 2-4S LiPo
• BEC Output : No

Wires & Connectors

• Output Wires : No wires but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : maybe not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 24.0x13.9x5.5mm
• Weight : 7g

Applications

• FPVs with 130-280mm Diagonal Wheelbase
