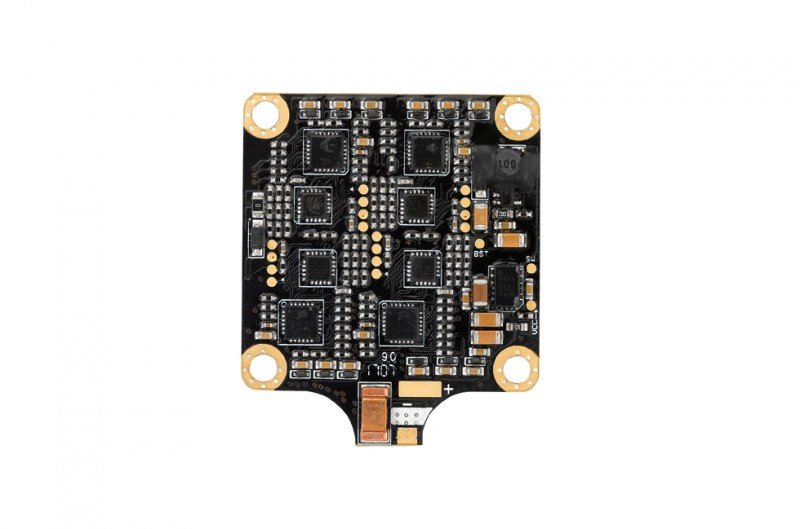

Extremely incorporated & Compact
The 4-in-1 ESC not only includes 4 superior 40A ESCs, 1 integral BEC,
but also an Amp/Volt monitoring port which allows FC observe the volt & amp
instantly (on condition that the FC supports this function); it’s as small as a
FC for FPV(s) and simple for installation and wiring. Utilizing the remarkably tiny
size, it's a great match for competition FPV(s).
High-quality Components
The utilization of EMF8BB21F16G MCUs utilizing the operating regularity as high as
48MHz, imported good quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 layers of PCBs guarantees less temperature,
higher effectiveness and rapider response.
BLHeli-S Firmware Ready
The ESC (with great performance and rich functions)
utilizes the initial BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via various techniques
(in other words. via throttle signal cable with using other development
board or a FC flashed with the cleanfight/betaflight firmware).
DShot150/300/600 Ready
Besides the normal PWM mode,
Oneshot125/Oneshot42/Multishot modes, the latest
DShot150/300/600 modes will also be supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and rapid reaction.
Hardware Generated PWM &
Damped Light Mode
The ESC firmware utilizes hardware produced motor pwm for smooth
throttle response and silent operation. Damped light does regenerative
breaking, causing very fast engine retardation, and it inherently additionally
does active freewheeling.
Specifications
- Cont./Peak active : 40Ax4/50Ax4
- Input Voltage : 2-5S Lipo
- BEC output : 5V & 1.5A
Wires & Connectors
- Input Wires : Red-14AWG-130mm / Black-14AWG-130mm
- Output Wires : No wires but solder tabs
- Input Connectors : XT60 (w/ cables Soldered on)
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : Stick Programming, BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle number Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 42.6x36x4mm
- Weight : 10g
