Powerful Hardware for very fast working Speed
The STM32F405 MCU, which features effective computing capacity & super running rate,
combined with the high-sensitivity ICM20602 6-axis movement sensor supports 32KHz PID controller &
gyro. The integral OSD chip permits users to adjust or set OSD parameters through the
Betaflight/Cleanflight/Butterflight/invaflight software or transmitter easily. The interior TF-card
expansion slot permits users to place a SD card to record more trip data.
Revolutionary Shock-absorbing Structure
The Innovative linking technique via a soft cable (*it works better
whenever pairing because of the XRotor Micro 45A 4in1 BLHeli_32 DShot1200)
combined with shock-absorbing design of mounting holes
effectively reduces the affect high-sensitivity FC components
from outside shock to produce every flight more stable and accurate.
On-board Filter Circuit

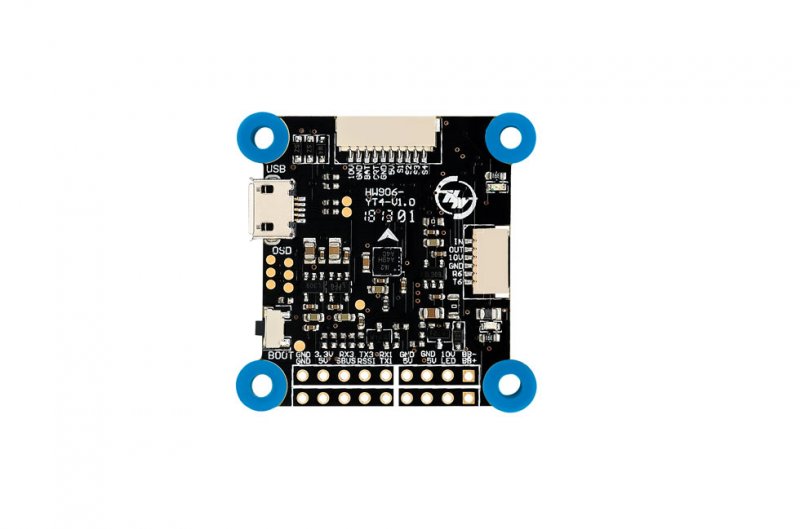

The XRotor Micro-F4-G2, which integrates with a filter circuit
module (*it only functions when pairing with all the 10V BEC regarding the
XRotor Micro 45A 4in1 BLHeli_32 DShot1200), provides purer
powering condition for VTX to help make pictures more clear and stable.
Several Throttle Signal
Modes Supported
Besides the newest DShot 150/300/600/1200
high-speed electronic throttle sign modes and the
Proshot1000 blended throttle sign mode, the
Oneshot125/Oneshot42/Multishot and regular PWM
throttle sign modes will also be supported.
Multiple FPV Firmware Supported
The XRotor Micro-F4-G2 not just supports numerous conventional FPV firmware like BetaFlight, Cleanflight,
Butterflight and invaflight, but additionally allows users to regulate or set parameters via the matching
software. All this makes the machine more relevant to different FPV routes & racing.
Compatible(with all the Hobbywing 4IN1 ESC&VTX)
It’s very easy to wire and install when pairing the FC with a Hobbywing 4-in-1 tower ESC & a HOBBYWING VTX (movie Transmitter).
Item Specification
Basic Features
- Compatible with (Multirotors) : Quadcopter
- Firmware : OMNIBUSF4SD
- FC Programming : Supported
- Programming via : Betaflight/Cleanflight-configurator or Others
- Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
Dshot600, DShot1200, Proshot1000 and etc. - suitable for (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
- OSD : Built-in
- Voltage Monitoring : Supported
- Current Monitoring : Supported
- External Buzzer : Supported
- LED Control : Supported
- BEC : No
- USB Port : MicroUSB
Size & Weight
- Size : 36*36mm
- Weight : 6g
