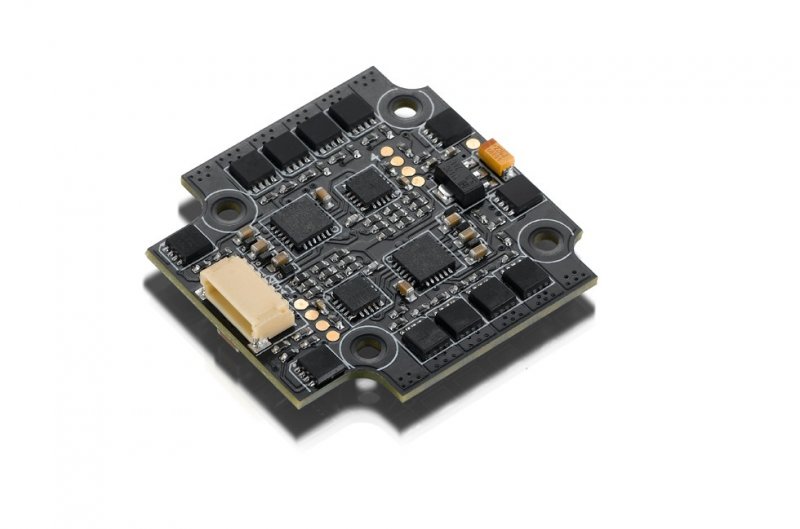

HOBBYWING XRotor Nano 20A 4in1 BLHeli-S DShot600 - 30901068  [HW-30901068]

Highly Integrated & Compact

The XRotor Nano 20A 4in1 BLHeli-S DShot600 not only includes 4
superior 20A ESCs, but also a volt monitoring port makes it possible for FC to
monitor the voltage instantly (on condition your FC supports this function).
Because of the extremely tiny size, the installation and wiring can be quite simple
and easy whenever pairing it because of the Hobbywing XRotor Nano Flight Controller.
It’s an ESC especially created for super mini-sized interior FPV(s).

Top-notch Components

The utilization of EMF8BB21F16G MCUs with the running regularity of up to
48MHz, brought in top quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 levels of PCBs guarantees less heat,
greater effectiveness and rapider response.

BLHeli-S Firmware Ready

The ESC (with great performance and rich functions)
makes use of the initial BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via different practices
(i.e. via throttle signal wire with making use of other development board
or a FC flashed because of the Cleanfight / Betaflight firmware).

DShot150/300/600 Ready

Besides the regular PWM mode,
Oneshot125/Oneshot42/Multishot modes, the newest
DShot150/300/600 modes may supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and fast response.

Hardware Generated PWM &
Damped Light Mode

The ESC firmware uses equipment generated engine pwm for smooth
throttle response and quiet procedure. Damped light does regenerative
breaking, causing extremely fast motor retardation, and it inherently also
does active freewheeling.

Specifications

• Cont./Peak active : 20Ax4/ 30Ax4
• Input Voltage : 2-4S Lipo
• BEC output : No

Wires & Connectors

• Input Wires : Red-16AWG-85mm/ Black-16AWG-85mm
• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : BLHeli-S A-H-50 16.5
• ESC Programming : BLHeliSuite
• Stick Programming : Supported
• DEO : Supported
• Throttle number Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• DShot150/300/600 : Supported
• Timing : Supported
• Motor Rotation : Supported

Size & Weight

• Size : 32x31.9x5.8mm
• Weight : 6g

Applications

• 130-280mm FPVs
