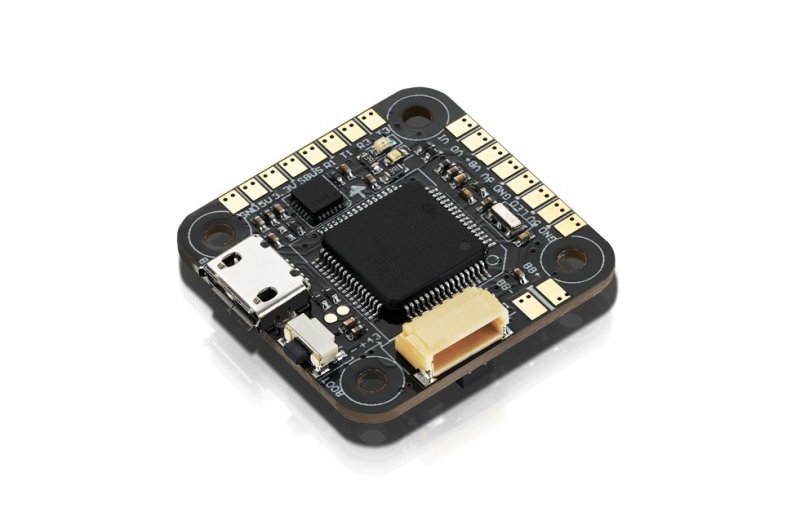

HOBBYWING XRotor Nano F4 Flight Controller - 31001001  [HW-31001001]

Small(er) Size

With the extremely little size, it could be mounted on the
more mini-sized airframe (i.e. 130mm or below) as well as
features all the functions that regular FC for FPV(s) has.

DShot 150/300/600/1200
Modes Supported

Besides the standard PWM mode,
Oneshot125/Oneshot42/Multishot modes,
the latest DShot150/300/600 modes are
also supported.

Super Fast working Speed

The STM32F405 MCU which features the powerful
computing capability and very fast running speed can
support the PID controller with greater cyclic regularity &
the gyro with higher refresh rate.

Built-in BEC & OSD

The built-in BEC (5V/1.5A) provides
power for various electronics;
the inner OSD permits users to adjust
or set all OSD parameters via the
Betaflight/Cleanflight computer software easily.

Betaflight/Cleanflight Firmware Supported

The flight controller supports the Betaflight/Cleanflight firmware and allows users
to modify or set various parameters via the Betaflight/Cleanflight software easily.
It’s more relevant toward FPV flight & racing.

Appropriate for Hobbywing XRotor Nano 4in1 ESC

When pairing the Nano Flight Controller F4 with the Hobbywing XRotor Nano 4in1 ESC,
the wiring & installation can be extremely easy and simple.

Product Specification

Basic Features

• Compatible with (Multirotors) : hexacopters
• Multi-rotor Type : Quadcopters
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
  Dshot600, Dshot1200, Proshot1000
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• BEC : 5V @ 1.5A
• USB Port : MicroUSB

Size & Weight

• Size : 27x27mm
• Weight : 3.3g
