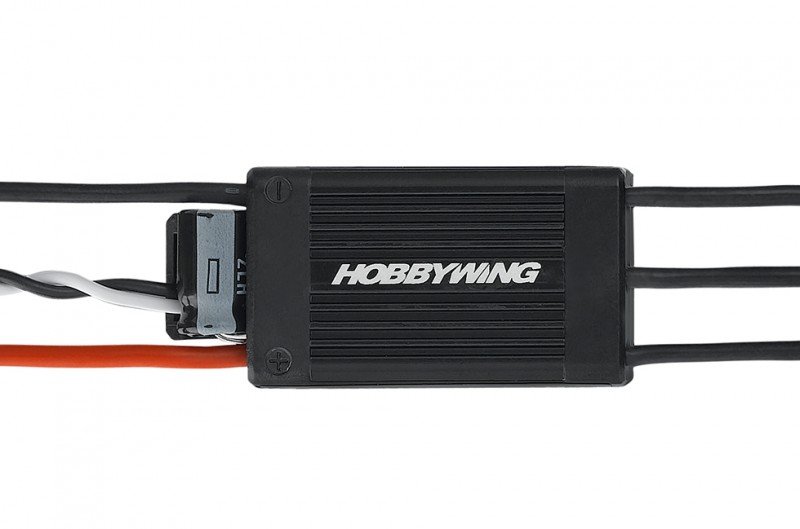

HOBBYWING XRotor PRO 25A 3D - 30902021  [HW-30902021]

3D Flight

China's very first multi-rotor controller with 3D-flight function. It could replace the motor rotation
rapidly which enable pilots to accomplish full 3D flight.

DEO Technology

The DEO (Driving Efficiency Optimization) technology implemented inside ESC has multiple
benefits:
● Active braking. When reducing the throttle quantity, the engine will decelerate quickly.
This particular feature enables pilots to quicker perform all maneuvers like sharp turns, altitude
modifications, and sudden braking.
● Higher driving effectiveness, longer journey time.
● Lower ESC temperature and a far more reliable operation .
* various companies call this technology by various names; “SimonK” calls it “Comp_PWM”,
“BLHeli” calls it “Dampaning-light” and Kontronik calls it “Active Freewheeling”.

An easy task to Use

Highly intelligent and adaptive standard settings like automobile timing for easy operation.
Quicker Heat

Less alert Interference

The twisted-pair throttle sign cable effectively reduces
interference manufactured in alert transmission and makes trip
more stable and reliable.

Product Specification

Specifications

• Cont./Peak Present : 25A/40A
• LiPo Cells : 3-4S LiPo
• BEC Output : No

Wires & Connectors

• Input Wires : Red-18AWG-150mm*1/Black-18AWG-150mm*1
• Output Wires : Black-18AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)

Features

• Throttle number Calibration : perhaps not Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : maybe not Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : perhaps not Supported

Size & Weight

• Size : 46.6x22.2x10.5mm
• Weight : 25g
