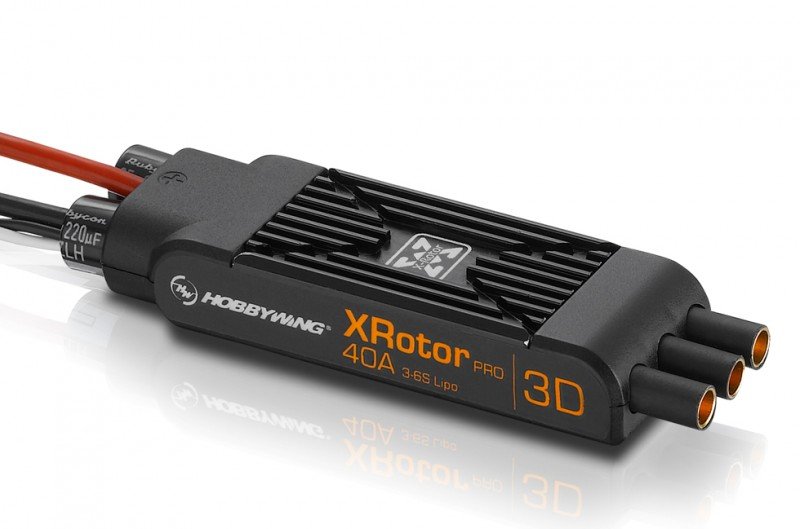

HOBBYWING XRotor PRO 40A 3D - 30902040  [HW-30902040]

3D-Flight Function

A high-performance aluminum folded fin heat sink is with the specifically
designed heat-conductive slotted structure that brings excellent heat-dissipating impact.
This is an Extremely Simplified Operational Procedure.

Newly Designed Shape

A fresh structural design which enclosed within an
exquisite solid plastic instance providing you with the all-round protection
and security for the ESC. The newly created ESC
can be easily put into a carbon-fiber pipe aided by the I. D. of 23mm.

Unique Core Program for
fast Throttle Response

The multi-rotor has made the demand over ESC response become
also harsher than usual. Our newly special core program for fast
throttle reaction rate means a far more stable hover and quick
movement during trip. With all the XRotor 3D and professional series ESC’s
new quick reaction rate, the ESC are designed for hard and brand new
challenges comfortable.

Unique Core Program for Rapid Throttle
Response

The multi-rotor has made the need over ESC response become even harsher than typical.
Our newly unique core system for rapid throttle reaction rate means a more stable hover and
swift movement during flight. With the XRotor 3D and Pro series ESC’s new rapid response rate,
the ESC can handle hard and new challenges at ease.

Driving effectiveness Optimization(DEO)
tech for Better Performance

Driving Efficiency Optimization (DEO) Technology is adopted for a higher driving efficiency

Open Cooling Fin

A high-performance aluminum folded fin heat sink is combined
with the specially created heat-conductive slotted structure that
brings excellent heat-dissipating impact. That is an exceptionally
Simplified Operational Procedure.

Item Specification

Specifications

• Cont./Peak Current : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC production : No

Wires & Connectors

• Input Wires : Red-16AWG-300mm*1/Black-16AWG-300mm*1
• Output cables : Black-16AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)

Features

• Throttle number Calibration : maybe not Supported
• Stick Programming : maybe not Supported
• DEO : Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : perhaps not Supported

Size & Weight

• Size : 66.0x21.8x11.0mm
• Weight : 50g
