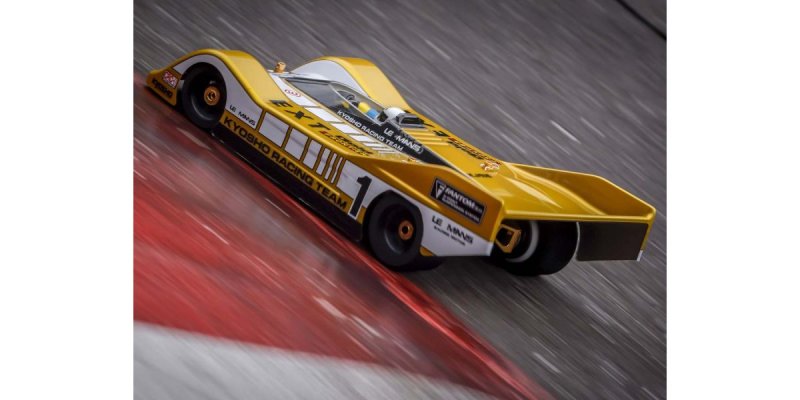

Kyosho 30644 - 1:12 Scale Radio Controlled Electric Powered 4WD Racing Car FANTOM EP 4WD Ext Gold 60th Anniversary limited  [KY-30644]

Of the numerous famous models Kyosho has manufactured in its glittering 60-year history, the 1/12 scale Phantom EP electric race automobile is a standout. First released in 1983, the Phantom EP-4WD followed by the Phantom EP-4WD Ext in 1985 obtained outstanding outcomes at Japanese Championships. For fans of the spectacular era, the Phantom EP-4WD Ext ended up being selected since the 12th model the Kyosho Vintage Series. To commemorate Kyosho’s 60th anniversary, this limited-edition of the Phantom EP-4WD Ext features silver anodized aluminum components and unique black front and rear wheels. Efficiency happens to be further enhanced with a rear ball diff (not available in 1985) that actually works in perfect combination with a thicker (increased to 6mm diameter) lightweight carbon shaft that delivers smooth cornering characteristics on various surfaces from asphalt to carpeting. In addition, the trunk damper was upgraded towards the EFW014 adjustable rear shock (formerly optional) to widen the scope of establishing options and enhance responsiveness for optimized operating performance. Since its launch in 2022, the Vintage Series Phantom EP-4WD Ext has captured the imagination of new fans as well as people who desire to relive the glory times. Even though you currently own the Phantom EP-4WD Ext, this limited-edition 60th anniversary commemorative model takes the Phantom experience to a whole new level.

●As the 12th model within the Kyosho Vintage Series, the Phantom EP-4WD Ext is upgraded into a unique edition 60th anniversary model.
●All aluminum parts are anodized in silver for the 60th anniversary model.
●While following the design of initial model released in 1985, each component happens to be enhanced to match contemporary R/C systems and power sources.
●Ladder string 4WD on-road racer demonstrates exceptional stability even on low-grip areas.
●Black FRP double-deck chassis exhibits an optimal balance of freedom and energy. Equipped with front reinforcement plate.
●3-point suspension system system sets the conventional for high dependability in 1/12 EP racers.
●Dial adjustable oil shock permits effortless adjustment of spring tension.
●Ball differential can be easily modified by tightening the nut.
●Equipped with lightweight and high-strength φ6mm carbon rear shaft as standard.
●Wheel nuts are gold anodized. Unique lightweight bolt is employed the differential housing.
●Compatible with 1:12 Scale radio control Electric Powered 4WD Racing automobile FANTOM EP 4WD Ext Gold 60th Anniversary restricted the existing Phantom EP-4WD Ext.
●Unassembled chassis kit includes pre-glued front side and back tires and unpainted human anatomy.

The 60th anniversary silver form of the Ext chassis combines 3-point suspension because of the ladder string 4WD system that revolutionized the R/C racing globe in 1985.

Ebony limited-edition front and back wheels are unique to your 60th anniversary model. The kit comes with tires pre-glued and diameter modified, in order to drive because it is, without the need for modification make use of a tire setter.

In a reaction to individual needs, this model features the initial ball differential included into the FANTOM EP series. Provides stable cornering traits in conjunction with an ultra-lightweight carbon shaft strengthened to 6mm in diameter. A newly designed special wheel bolt is employed to fix the right wheel.

Lightweight and high rigidity carbon backside shaft is included as standard. Diameter happens to be increased from 5mm to 6mm, significantly enhancing crash resistance.

The 6mm rear left wheel hub additionally features the silver finish unique to the 60th anniversary model. The dual screw clamp keeps it secure and stops loosening while driving.

Previously just offered as an option, the Rear Adjust Shock Conversion (No.EFW014) is roofed as standard, allowing precision adjustment and a wider selection of setting options.

Kingpin coil suspension with a specially shaped springtime connected to the the surface of the front knuckle supply achieves smooth cornering by inducing body roll with reduced stroke.

Back part of the key framework is extensively cut to improve flexibility and create the suspension system impact. In conjunction with the oil-filled surprise, this easy system delivers excellent surface tracing performance characteristics.

Effective aerodynamics for the original CRC-II body design understands excellent cornering performance. An optional rear wing utilized throughout the Phantom EP-4WD and BW Spider could be installed for increased stability.

TECHNICAL DATA

• Length 340mm
• Width 172mm
• Height 83mm
• Chassis kind Chain drive4WD
• Wheelbase 199-200mm(Adjustable)
• Tread F:135mm/R:133mm
• TireF:48x23mm/R:?53x35mm
• Gear ratio 3.38:1
• Weight approx.900g(with GAB4202)
• Motor 540class(both sold separately)
• utilized propo 2~3ch 2servo
• Maximum rate ?55km/h (with Le Mans480G)
• Driving Time approx.23minutes(with Le Mans480G)
