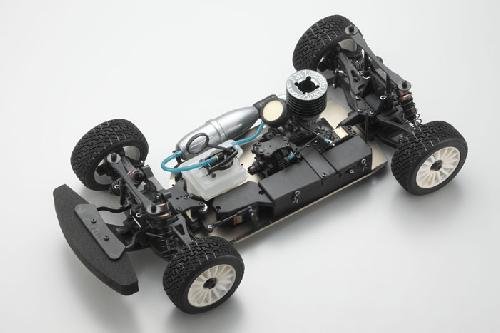

Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012  [31049]

Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012
Price:
USD$0.00
Brand:
Kyosho
Model:
31049
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Rally - Nitro Powered category
Write a review
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"

2-Speed A/T installed! Set your sights on the Kyosho Trophy!
Limited launch chassis kit for motorists hunting for additional speed!

The agile and powerful drive that the DRX rally device demonstrates across all area kinds is turbo charged with the newest Kyosho Trophy version. Standard features now integrate 2-speed A/T mission, tough R246 7075T4 primary chassis, previously optional upgrade surprise springs, front/rear stabilizers. Additionally, this kit comes packed without tires (includes wheels) in order to choose grip distinct to each competition. With it's versatile managing and also the powerful performance of a rally device, this model is fully prepared for racing battle while staying with practical scale measurements. Fingertip drift control renders you awaiting the noise of tire squeal with all the sense of realism that Kyosho rally machines are well-known for. Add your choice of human anatomy and work out a payment for the Kyosho Trophy!

  • Chassis kit is packed without body and tires so you can choose your selected options.
  • Features lightweight GXR18 engine (without recoil beginner) with SP motor head.
  • Utilizes the exact same split clutch structure as racing buggies to provide superior throttle reaction.
  • Loaded with φ2.4 stabilizers on front side and back.
  • Downward dealing with manifold and muffler achieves horizontal positioning and low center of gravity.
  • No dependence on holes within the body that spoil the scale feel utilizing the downward facing muffler exit.
  • Lightweight on-road model air cleanser is simple to recognize whenever maintenance and cleaning is necessary.
  • Big capability oil shocks with framework height modification function are included as standard.
  • Dirt resistant radio field is entirely removed with just four screws for easy upkeep.
  • 103cc fuel tank delivers run times of above ten full minutes.
  • Rushing specs consist of a transponder stay and a quick opening fuel tank limit.
  • Setting choices are around for framework height, camber and tread, in addition to front and back toe angle.
  • Very long wheelbase framework with 3-differential full-time 4WD realizes low center of gravity and excellent suspension for great operating performance on any kind of surface.
  • Completely interchangeable suspension hands and front side and rear interchangeable knuckles recognize affordable and efficient parts maintenance.
  • Knuckle design features rock guards that prevent dust and stones getting inside and securing the tires up unexpectedly.
  • Optimal rigidity and power is accomplished through included R246 7075T4 primary chassis (a popular optional upgrade part).

<Optional components included in the DRX Kyosho Trophy Edition>

No.TRW155-6514 Spring φ1.4 x 6.5
No.TRW153 Stabilizer φ2.4
No.TRW158 2-Speed Automated Transmission
No.74017-07 SP Engine Mind
No.74016-14 Back Plate
No.92023 Air Cleanser
No.R246-3010R246 Main Chassis for DRX

< Kit Contents >

  • Chassis kit
  • Restricted specification GXR18 engine
  • Scale wheels
  • Servo horns suitable for array of R/C systems
  • Hex wrench 4-types (1.5, 2.0, 2.5, 5.0mm)
  • Cross wrench


< needed for Operation >

  • Body
  • 2-channel, 2-servo (minimum) R/C system
  • Tires
  • Gas
  • Starting tools
  • Paint for human anatomy
  • Batteries for R/C system
Chassis Technical Information
Length
563mm
Width
260mm
Height
175mm
Wheelbase
316mm
Tread (F/R)
215mm / 215mm
Tire(F/R)
93 x 38mm / 93 x 38mm (sold individually)
Gear Ratio
8.86:1
Fat
2,200g (approx.) (just chassis
Engine
GXR18 restricted specification
