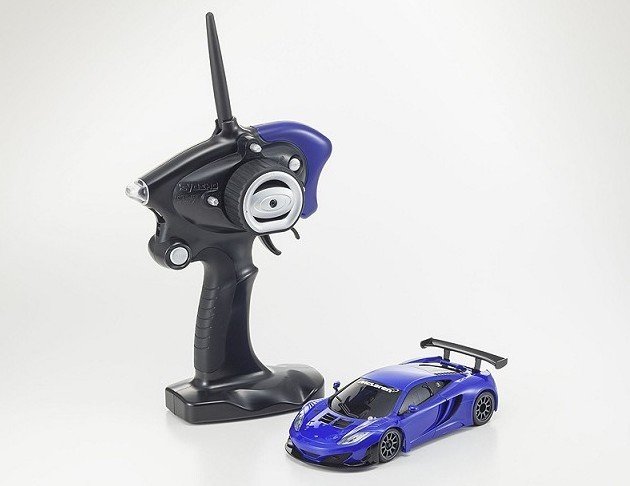

Kyosho 32217GMB - MR-03S McLaren 12C GT3 2013 Blue Metallic RS Ready Set  [KY-32217GMB]

Significant update to receiver circuit board! Brand new 2nd generation Activities chassis!

From the launch in 2013 the MINI-Z Racer Sports MR-03 Readyset caused it to be easy for a wider number of racers to take pleasure from the accuracy control of its MR-03 base chassis that built its solid reputation regarding MINI-Z race scene. This next generation upgrade remains faithful to the original concept. One major update could be the advanced gyro device (MZW431) which can be attached to the Mini-Z AWD Sports, can also be able to be attached to the MINI-Z Racer Sports 2 MR-03. The gyro’s sensitiveness are modified through an amount control set up regarding the chassis. Redesign of steering control setup to support the gyro has triggered greater amount of steering accuracy compared to the past model. Also, when utilized in combination aided by the KT-432PT transmitter (sold individually), the gyro sensitiveness could be modified directly from the transmitter, whatever the volume establishing on framework. The exact same relates to steering force settings, that may be adjusted from KT-432PT transmitter. With both of these functions, precise setting can be achieved to optimize steering feel towards individual driving style. The MR-03 chassis lays the foundation for the latest race connection with the MINI-Z Sports 2!

• MR-03 framework has a unique Sports 2 circuit board. Combines powerful and compatibility with all body styles.
• Features the newly designed FHS 2.4GHz Perfex KT-19 transmitter. Prepared with trim to modify the optional light device.
• In addition to the light unit, a particular gyro unit (MZW431) can also be installed. Gyro sensitiveness is adjusted by turning the volume dial.
• Can be set to either slim or wide tread by replacing the leading reduced and upper plates and steering tie pole. Definitely the wheelbase can be modified to match specific automobile types. *Change wheelbase calls for optional components.
• Features Perfex KT-19 transmitter. Steering volume adjustment feasible.
• Factory assembled with quality finish appropriate interior display.
• All MINI-Z Racer figures can be set up. *Requires appropriate motor situation and diff gear assembly.
• Features unique front suspension (VCS) that delivers optimum camber change together with suspension system swing.
• Spring stopper is detached with only two screws for easy replacement of coil spring on front suspension.
• A giant selection of parts for MR-03 chassis is installed.
• Optional gyro unit (MZW431) can be installed. Adjust the gyro’s sensitivity through the amount control regarding the framework.
• Also, this model is specifically designed for the KT-19 transmitter generally there is no compatibility using the former KT-18 transmitter/EX-5UR ASF transmitter (No.82011).

Readyset Articles:

• Factory assembled framework
• Pre-painted factory assembled plastic human body finished with markings
• 2.4Ghz transmitter Perfex KT-19
• Components set for changing front tread
• Front suspension spacer for adjustment
• 6T, 7T, 8T, 9T pinion gears
• Wheel wrench
• Pinion tools
• Free wheel nut
• Tires and tires included

ReadySet Contents:

• 4 x AAA size alkaline batteries or NiMH x 4 for framework
• AAA x 4 alkaline batteries for transmitter

Chassis Technical Data:

Length: 124~133mm(MM Chassis:125~133mm?RM Chassis:124~132mm)
Width: 65~76mm
Height: 34~35mm
Wheelbase: 86~106mm(86,90,94,98,102,106)
Tread (F/R): (Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0]
Tire(F/R): 23.5~25×8.5mm / 25~27×8.5~11mm
Gear Ratio: 7.3,6.3,5.5,4.9:1
Weight: 135g approx.
Engine: 130-Class
