In 2019 the planet's most popular mini RC series, known as the Kyosho MINI-Z, celebrated above two decades of unmatched performance and scale realism into the hobby-grade RC category. The constant search for performance and evolution has generated the creation of a completely-new ‘MINI-Z 4x4’ design that delivers an all-new driving experience for RC fans of stripes, with superior general design, driving performance and top-quality injection-molded scale human anatomy construction. An important function of the MINI-Z 4x4 show could be the greater emphasis of human anatomy information and quality of finish that also surpasses current benchmarks set by the MINI-Z. The body can be molded with thicker material to higher resist crash damage from procedure in rough landscapes. Integrating equivalent ladder- design frame of genuine 4WD automobiles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining just what would generally be two top links into an individual top A-arm to supply maximum suspension motion. A specially created high-torque steering servo allows this machine to put its elbows around in difficult surface for exceptional performance in most challenging rock-crawler conditions. The high-torque 130-size engine brings out the beast in MINI-Z 4x4, especially tailored for run well within the low to medium speed ranges typical in crawling. Built to balance exquisite design, scale detail and superior driving performance, most of the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (offered individually). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the wonderful visual appearance. The Kyosho Mini-Z 4x4 could be the only mini crawler that delivers a full selection of crawling performance in an inferior package.
● Adopts full-fledged solid axle links just like the 1/10 scale models, ensuring the driving performance and wheel travel needed for crawler models.
● Built with a specially tuned high-torque 130 motor. Furthermore, the key gear device features a slipper clutch that protects the drive system by releasing torque when under hefty load.
● Features a high-torque servo specifically designed for crawler models, capable of supporting authentic crawling performance. The steering website link optimization achieves the biggest steering angle in Mini-Z history.
● Full bearing specification with an overall total of 18 ball bearings. Metal gears, known because of their durability, are employed in parts that bear hefty lots.

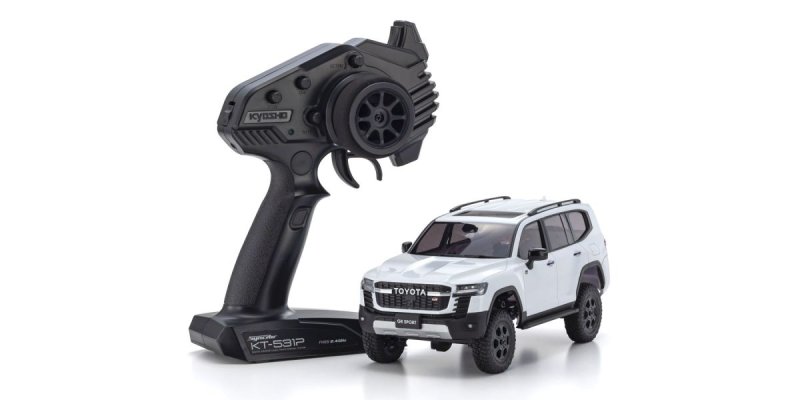

● The "KT-531P" transmitter uses the FHSS 2.4GHz system and features a sponge in the steering wheel to boost operability.
● Comes as a totally put together, ready-to-run model, requiring just the insertion of batteries to begin with operation.
● An optional light set (MZW429R) are set up on top of the circuit board. The lights answer throttle procedure, and also the headlight's lighting interval could be modified freely—from constant illumination to blinking—via the transmitter's trim.
● Supports the separately sold gyro product (MZW446), and like RWD/AWD show, manual changes are made through the amount control.
● Designed with popular BS Goodrich tires.
GR (Gazoo Racing) takes the currently formidable off road performance with this world-famous SUV as much as a greater level with strengthened suspension system and advanced electronic settings. Leading bumper and grille are exclusive to the GR Sport model.
the exact same ladder framework and multi-link rigid-axle suspension popular in popular 1: 10-scale off-road models, is condensed into Mini-Z size the most articulation and performance obtainable in any mini RC vehicle.
The Mini-Z 4x4 includes a ladder framework design with steel vertical dishes, in conjunction with various molded parts, to deliver the greatest stability of of rigidity and flex for superior performance and durability.
Solid front side and rear axles function links with steel rods and captured rod ends. Ring and pinion gears, as well as other gears and components, component steel construction to withstand the hefty lots underneath the most challenging driving conditions.
The front axle features ideal Ackermann geometry. With the higher level design of axle housing as well as the other steering elements, This model features the tightest switching radius in Mini-Z history. This means the Mini-Z 4x4 has exemplary management capability for such a thing ranging from casual driving to hard-core crawling.
Tires and tires which are certain to each model are a significant focus of the Mini-Z 4x4.
Metal gears are used in areas susceptible to high loads to ensure durability.
The Mini-Z 4x4 features a specially-designed high-torque engine that's unique in Mini-Z World. It's optimized for optimum torque, therefore develops more energy at lower speeds.
the most effective drive efficiency is accomplished utilizing the included set of 18 ball bearings, factory installed to ensure the smoothest best operation feasible, right out from the package.
TECHNICAL DATA
- Length 207.0mm
- Width 88.5mm
- Height 90.0mm
- Chassis Type MX-01
- Wheel Base 120mm
- Tread F/R: 72.7mm
- Weight 242.0g (excl. battery)
- Motor/Engine 130 Class
- Gear Ratio 55.44: 1/46.20: 1/39.60: 1/34.65: 1/30.80: 1/27.72: 1
- Front Tire Diameter ?37.0mm
- Rear Tire Diameter ?37.0mm
- Front Tire Width 12.0mm
- Rear Tire Width 12.0mm
- Battery 4 x AAA alkaline
- Transmitter Syncro KT-531P
- Speed Approx. 2.7km/h?5.4km/h
- Running Time Approx. 60 minutes
KIT CONTENT
- Complete framework with integrated electronic devices.
- Factory-painted body detailed with numerous fine details
- KT-531P 2.4GHz transmitter
- Pinion gear set(10T?12T?14T?16T?18T?20T)
- 3 types of pinion gear spacers
REQUIREMENT TO RUN
- 4 x AAA batteries for the transmitter
- 4 x AAA batteries for chassis (Alkaline or NiMH)
