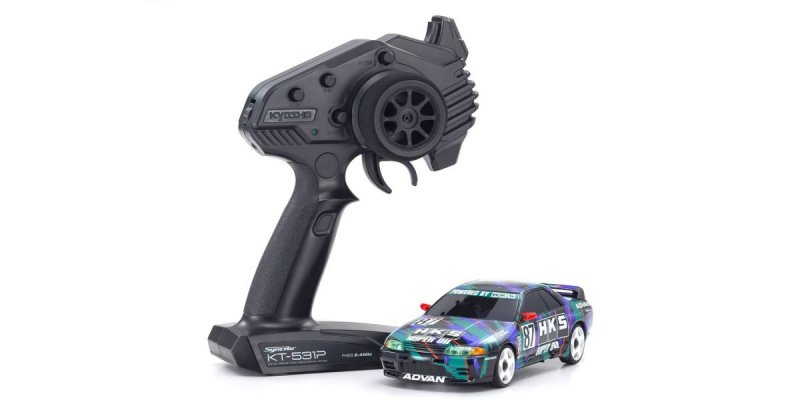

To create its dynamic performance to more motorists, the MINI-Z AWD happens to be for sale in a Readyset. The MA-020 chassis features VCS (variable camber suspension system) on the front that optimizes camber change with suspension swing and a specially designed circuit board. The chassis design permits space for setting up the optional MZW431gyro product. The gyro may be modified by turning a little volume regarding framework to mirror the quantity of steering modification responding to alterations in framework position, enabling novices through to specialists to drive to their full potential. Completely fitted out with accuracy ball bearings, the high drive efficiency for the MA-020 chassis is complimented into the Readyset by the initial scale human body and 2.4GHz Syncro KT-531P R/C system that will require no regularity band environment; all at a good value cost. Merely set the batteries to take pleasure from the thrill of drift driving using the included set of drift tires. The framework works with nearly all ASC MINI-Z bodies (additional components possibly needed for somebody styles). The MINI-Z AWD guarantees an original world of dramatic racing action to help you experience and revel in.
●MINI-Z AWD Readyset considering MA-020 chassis.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitivity adjustment function.
●Drift tires are set up as standard.
●Readyset requires just batteries become prepared for action!
●Features 2.4GHz Syncro KT-531P transmitter that requires no setup of regularity bands.
●Factory completed body includes display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber prior to suspension stroke.
●Coil spring on front suspension can be easily changed without tools.
●wide array of optional components is available to be installed.
●Note) Optional ICS can't be used. Additionally, this model is specifically created for the KT-531P transmitter. It is not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. Its just compatible with the unique (No.MZW431) gyro unit (offered individually).
Kazuyoshi Hoshino & Toshio Suzuki tore up the circuits on their method to victory inside 1990 All Japan Touring vehicle Championship, driving the very first model series to consider an all-wheel drive (AWD) system.
Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim plus double rate adjustment of steering angle and control the flashing speed of optional LEDs. Additionally, the transmitter has a Training Mode feature which limits rate of this car for simple learning (standard setting during the time of delivery is Training Mode).
Special AWD Sports framework is based on the MA-02 framework and features the RA45 product.
Features VCS front suspension system that optimizes camber change in concert with suspension system swing. Replacement of front suspension coil springs is simple without any tools needed.
Loaded with strut-type rear suspension.
Full bearing requirements include 14 ball bearings.
Built with drift tires as standard.
Loaded with unique mount space and gyro modification volume the optional MZW431 gyro device (offered individually).
TECHNICAL DATA
- Length 165.0mm
- Width 71.0mm
- Height 50.0mm
- Wheelbase 94.0mm(L)
- Tread F : 59.5mm R : 59.5mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx8.5mm
- Front Wheel Offset Narrow +1.5mm
- Front Wheel Offset open +1.5mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
- R / C product integrated complete chassis
- Painted and marked complete body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- free nut
- Wheel wrench
- Pinion treatment device
REQUIREMENT TO PERFORM
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
