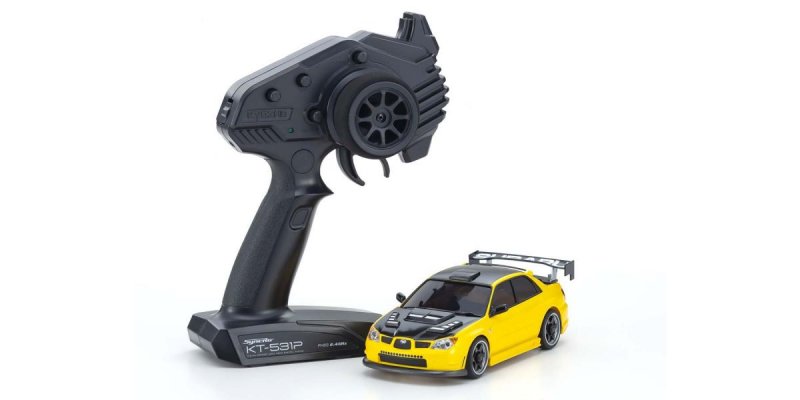

To bring its powerful performance to even more drivers, the MINI-Z AWD happens to be obtainable in a Readyset. The MA-020 framework features VCS (variable camber suspension system) in the front side that optimizes camber change with suspension stroke and a specially created circuit board. The chassis design enables area for installing the optional gyro unit. The gyro may be modified by turning a little volume regarding the framework to mirror the quantity of steering modification in response to alterations in framework posture, permitting beginners through to specialists to drive for their full potential. Fully fitted out with precision ball bearings, the high drive effectiveness of MA-020 chassis is complimented into the Readyset by the unique scale human anatomy and 2.4GHz Syncro KT-531P R/C system that requires no regularity band setting; all at a fantastic value cost. Merely set the batteries to savor the thrill of drift driving utilizing the included set of drift tires. The framework is compatible with the majority of ASC MINI-Z bodies (additional components possibly needed for somebody designs). The MINI-Z AWD guarantees a unique world of dramatic race action for you to experience and enjoy.
●MINI-Z AWD Readyset centered on MA-020 framework.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitiveness modification function.
●Drift tires are installed as standard.
●Readyset calls for only batteries become ready to use it!
●Features 2.4GHz Syncro KT-531P transmitter that will require no setup of frequency bands.
●Factory completed human body is sold with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber in accordance with suspension swing.
●Coil springtime on front suspension can be easily changed without tools.
●wide range of optional components is available to be installed.
●Note) Optional ICS cannot be used. Additionally, this model is specially designed for the KT-531P transmitter. It is not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. Its just appropriate for the unique gyro unit (offered individually).
Late model specifications had been developed inside 2nd generation Subaru Impreza. Hawkeye headlights completed the formidable face with this device that formed the beds base for aero tuning featuring large back wing and different ducts.
Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim along with double rate modification of steering angle and control the blinking speed of optional LEDs. Additionally, the transmitter has an exercise Mode function which limits rate associated with vehicle for easy learning (standard environment at the time of shipment is Training Mode).
Special AWD Sports framework is founded on the MA-02 chassis and features the RA45 unit.
Features VCS front suspension that optimizes camber change in concert with suspension system stroke. Replacement of front suspension system coil springs is straightforward without any tools needed.
Designed with strut-type back suspension.
Complete bearing specifications include 14 ball bearings.
Equipped with drift tires as standard.
Loaded with special mount room and gyro adjustment amount the optional gyro unit (sold individually).
TECHNICAL DATA
- Length 155.0mm
- Width 68.0mm
- Height 51.0mm
- Chassis MA-020-N
- Wheelbase 90.0mm(M)
- Tread F : 58.5mm R : 58.5mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx8.5mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +1.0mm
- Rear Wheel Offset Narrow +1.0mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
/li>- R / C unit integrated complete chassis
- Painted and marked complete body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- free nut
- Wheel wrench
- Pinion reduction device
REQUIREMENT TO RUN
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
