To create its dynamic performance to more motorists, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension system) in the front that optimizes camber modification with suspension system swing and a specially created circuit board. The chassis design allows area for installing the optional MZW446 gyro device. The gyro is adjusted by switching a small amount regarding chassis to mirror the quantity of steering modification responding to alterations in chassis posture, allowing novices right through to specialists to operate a vehicle to their full potential. Fully fitted away with precision ball bearings, the high drive effectiveness of this MA-020 chassis is complimented inside Readyset by the initial scale human body and 2.4GHz Syncro KT-531P R/C system that will require no regularity band setting; all at a great value price. Just set the batteries to take pleasure from the thrill of drift driving using the included set of drift tires. The chassis works with the majority of ASC MINI-Z systems (additional components possibly necessary for somebody styles). The MINI-Z AWD promises a distinctive world of dramatic racing action so that you can experience and revel in.
●MINI-Z AWD Readyset predicated on MA-020 framework.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitivity modification function.
●Drift tires are installed as standard.
●Readyset calls for just batteries to be ready for action!
●Features 2.4GHz Syncro KT-531P transmitter that requires no setup of regularity bands.
●Factory finished human anatomy is sold with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber prior to suspension swing.
●Coil spring on front suspension system can be simply replaced without tools.
●wide array of optional parts can be acquired become installed.
●(Note) Optional ICS can NOT be utilized. Additionally, this model is specifically created for the KT-531P transmitter. It isn't appropriate for the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It really is just suitable for the unique gyro device (offered individually).

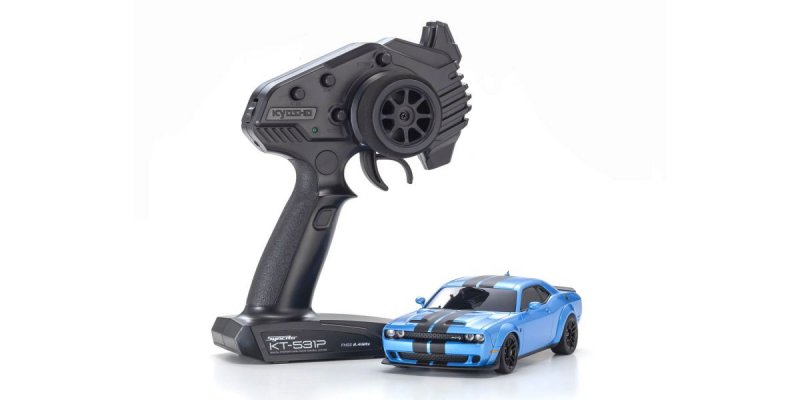

The ‘Hellcat’ is the pure definition of US muscle tissue. Featuring its 6.2ℓV8 supercharged engine creating a brutal 797 horsepower, the Hellcat may be the superior style of Dodge Challenger lineup.
Includes fashionable design of Syncro KT-531P transmitter. Features steering / throttle trim in addition to dual rate adjustment of steering angle and control the flashing speed of optional LEDs. Furthermore, the transmitter has an exercise Mode function which limits speed associated with the vehicle for easy learning (standard setting during shipment is Training Mode).
Unique AWD Sports framework is dependant on the MA-02 chassis and features the RA45 product.
Features VCS front suspension that optimizes camber improvement in concert with suspension system stroke. Replacement of front suspension coil springs is simple without any tools needed.
Built with strut-type rear suspension.
Complete bearing specifications include 14 ball bearings.
Designed with drift tires as standard.
Built with special mount space and gyro adjustment volume for the optional MZW446 gyro product (offered separately).
TECHNICAL DATA
- Length 171.0mm
- Width 75.0mm
- Height 50.0mm
- Chassis MA-020-W
- Wheelbase 98.0mm(LL)
- Tread F : 64.5mm R : 62.0mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx11.0mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +1.5mm
- Rear Wheel Offset Wide +1.5mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
- R / C device integral complete chassis
- Painted and marked complete human anatomy
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- Spare nut
- Wheel wrench
- Pinion reduction tool
REQUIREMENT TO OPERATE
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
