To create its dynamic performance to more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 framework features VCS (variable camber suspension system) regarding front side that optimizes camber modification with suspension swing and a specially designed circuit board. The chassis design permits space for installing the optional MZW446 gyro product. The gyro could be adjusted by switching a small volume on chassis to reflect the total amount of steering modification in response to alterations in framework position, allowing novices through to professionals to operate a vehicle for their complete potential. Fully fitted down with accuracy ball bearings, the high drive efficiency of the MA-020 framework is complimented into the Readyset by the unique scale human anatomy and 2.4GHz Syncro KT-531P R/C system that requires no regularity musical organization setting; all at a fantastic value price. Just set the batteries to enjoy the excitement of drift driving with all the included pair of drift tires. The framework is compatible with most ASC MINI-Z systems (additional components maybe necessary for somebody designs). The MINI-Z AWD promises a unique realm of dramatic race action for you yourself to experience and enjoy.
●MINI-Z AWD Readyset considering MA-020 framework.
●Special circuit board updated with optimized steering control system.
●Chassis features gyro sensitivity modification function.
●Drift tires are installed as standard.
●Readyset calls for just batteries to be ready for action!
●Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
●Factory completed human anatomy comes with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber prior to suspension stroke.
●Coil springtime on front suspension can be easily replaced without tools.
●wide array of optional parts is available become installed.
●Note) Optional ICS can't be used. Also, this model is particularly created for the KT-531P transmitter. It is not suitable for the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. Its only compatible with the special gyro device (offered separately).

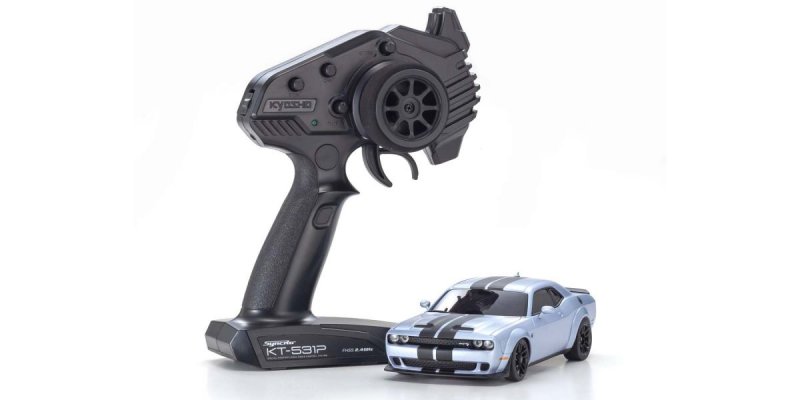

The ‘Hellcat’ is the pure definition of US muscle. Featuring its 6.2ℓV8 supercharged motor creating a brutal 797 horsepower, the Hellcat could be the superior model of Dodge Challenger lineup.
Includes fashionable design of Syncro KT-531P transmitter. Features steering / throttle trim in addition to double rate modification of steering angle and control the blinking speed of optional LEDs. Besides, the transmitter has a Training Mode feature which limits rate for the automobile for effortless learning (standard environment during the time of delivery is knowledge Mode).
Unique AWD Sports chassis is founded on the MA-02 chassis and features the RA45 device.
Features VCS front suspension that optimizes camber change in concert with suspension system swing. Replacement of front suspension coil springs is simple without tools required.
Designed with strut-type back suspension.
Full bearing specs include 14 ball bearings.
Designed with drift tires as standard.
Loaded with unique mount area and gyro adjustment amount for the optional MZW446 gyro product (offered individually).
TECHNICAL INFORMATION
- Length 171.0mm
- Width 75.0mm
- Height 50.0mm
- Chassis MA-020-W
- Wheelbase 98.0mm(LL)
- Tread F : 64.5mm R : 62.0mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx11.0mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +1.5mm
- Rear Wheel Offset open +1.5mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
- R / C unit built-in complete chassis
- Painted and marked complete human anatomy
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- Spare nut
- Wheel wrench
- Pinion elimination tool
REQUIREMENT TO PERFORM
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
