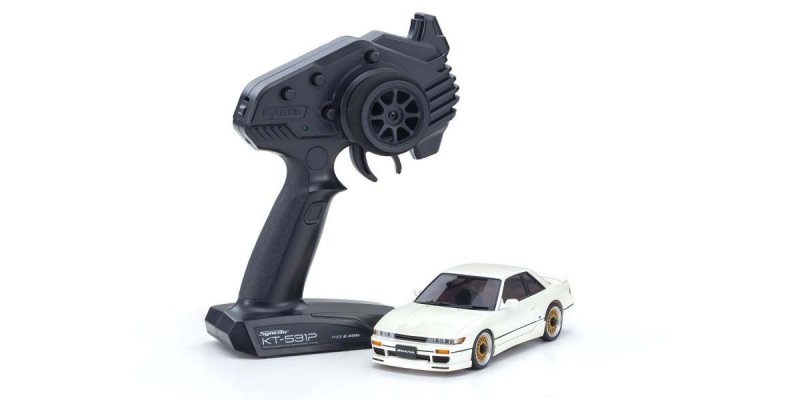

To bring its powerful performance to more drivers, the MINI-Z AWD is now for sale in a Readyset. The MA-020 framework features VCS (variable camber suspension system) regarding front side that optimizes camber change with suspension system stroke and a specially designed circuit board. The framework design allows area for setting up the optional gyro unit. The gyro can be adjusted by turning a small amount regarding the chassis to reflect the quantity of steering modification responding to alterations in framework position, permitting beginners right through to experts to push with their complete potential. Fully fitted out with accuracy ball bearings, the high drive effectiveness regarding the MA-020 chassis is complimented in the Readyset by the initial scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band environment; all at outstanding value price. Just set the batteries to take pleasure from the thrill of drift driving aided by the included pair of drift tires. The framework is compatible with the majority of ASC MINI-Z figures (additional components maybe needed for some body designs). The MINI-Z AWD guarantees an original world of dramatic racing action for you to experience and enjoy.
●MINI-Z AWD Readyset centered on MA-020 framework.
●Special circuit board updated with optimized steering control system.
●Chassis features gyro sensitivity modification function.
●Drift tires are set up as standard.
●Readyset requires just batteries become ready to use it!
●Features 2.4GHz Syncro KT-531P transmitter that will require no setup of regularity bands.
●Factory completed body is sold with display model quality finish.
●Features VCS (variable camber suspension system) that adjusts camber prior to suspension stroke.
●Coil spring on front suspension system can be easily replaced without tools.
●wide range of optional parts can be acquired to be installed.
●Note) Optional ICS can NOT be utilized. Additionally, this model is specifically made for the KT-531P transmitter. It's not suitable for the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It's just appropriate for the special gyro product (sold individually).
Amongst successive Nissan Silvia models, the S13 released in 1988 continues to be the best. Featuring its more sophisticated human anatomy type combining because of the extra K’s in turbo model, the S13 Silvia had been the embodiment of rate and design.
Includes fashionable design of Syncro KT-531P transmitter. Features steering / throttle trim and dual rate adjustment of steering angle and control the flashing speed of optional LEDs. Additionally, the transmitter has a Training Mode feature which limits rate associated with automobile for effortless learning (standard environment during shipment is knowledge Mode).
Special AWD Sports framework is founded on the MA-02 framework and features the RA45 product.
Features VCS front suspension system that optimizes camber improvement in concert with suspension system swing. Replacement of front suspension system coil springs is easy with no tools needed.
Equipped with strut-type rear suspension.
Full bearing specifications consist of 14 ball bearings.
Built with drift tires as standard.
Equipped with unique mount space and gyro adjustment amount for the optional gyro product (sold separately).
TECHNICAL DATA
- Length 161.0mm
- Width 67.0mm
- Height 43.0mm
- Chassis MA-020-N
- Wheelbase 90.0mm(M)
- Tread F : 56.5mm R : 56.5mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx8.5mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +0.0mm
- Rear Wheel Offset Narrow +0.0mm
- R/C System Syncro KT-531P
- Weight 192g
KIT CONTENT
- R / C product built-in complete framework
- Painted and marked complete body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- free nut
- Wheel wrench
- Pinion elimination device
REQUIREMENT TO OPERATE
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
