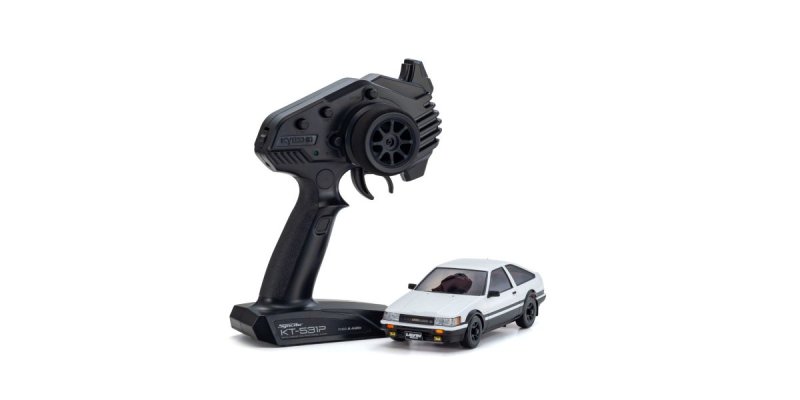

To create its dynamic performance to more drivers, the MINI-Z AWD happens to be available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) regarding the front side that optimizes camber modification with suspension system swing and a specially designed circuit board. The framework design permits space for setting up the optional gyro unit(Sold individually: No.MZW446). The gyro could be adjusted by switching a small volume regarding framework to reflect the amount of steering correction in reaction to changes in chassis position, enabling novices through to professionals to drive to their full potential. Completely fitted out with precision ball bearings, the high drive efficiency for the MA-020 chassis is complimented in the Readyset by the initial scale human body and 2.4GHz Syncro KT-531P R/C system that requires no frequency musical organization setting; all at a good value price. Merely set the batteries to enjoy the excitement of drift driving aided by the included set of drift tires. The framework works with the majority of ASC MINI-Z bodies (additional components maybe necessary for some body designs). The MINI-Z AWD guarantees a distinctive realm of dramatic race action so that you can experience and luxuriate in.
*The separately sold LED light product set (No.MZW429R) may be set up on Toyota Corolla Levin AE86.
●MINI-Z AWD Readyset predicated on MA-020 chassis.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitivity adjustment function.
●Drift tires are set up as standard.
●Readyset calls for only batteries become ready to use it!
●Features 2.4GHz Syncro KT-531P transmitter that will require no setup of regularity bands.
●Factory finished body includes display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
●Coil springtime on front suspension system can be easily replaced without tools.
●wide range of optional components can be acquired become installed.
●Note) Optional ICS can NOT be used. Additionally, this model is specifically created for the KT-531P transmitter. It is really not appropriate for the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. Its just compatible with the unique gyro unit (sold separately: No.MZW446).
also called the ‘Hachiroku’, the Corolla Levin AE86 was launched in 1983 and it is distinguished by its FR design and lively motor response. With a reputation for nimble driving performance, the AE86 along side its cousin model, the Sprinter Trueno, has extensive appeal right now.
Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim in addition to dual rate modification of steering angle and control the blinking speed of optional LEDs. Also, the transmitter has a Training Mode function which limits speed regarding the vehicle for effortless learning (default environment during shipment is knowledge Mode).
Special AWD Sports chassis is based on the MA-02 framework and features the RA45 unit.
Features VCS front suspension that optimizes camber improvement in concert with suspension stroke. Replacement of front suspension coil springs is not hard without tools required.
designed with strut-type back suspension system.
Full bearing specs consist of 14 ball bearings.
Equipped with drift tires as standard.
loaded with unique mount space and gyro adjustment volume for the optional gyro product (offered separately: No.MZW446).
TECHNICAL DATA
- Length 164.5mm
- Width 68.0mm
- Height 53.0mm
- Wheelbase 94.0mm(L)
- Tread F : 56.5mm R : 56.5mm
- Chassis MA-020-N
- Front Wheel Offset Narrow +-0.0mm
- Rear Wheel Offset Narrow +-0.0mm
- R/C System Syncro KT-531P
KIT CONTENT
- R / C product built-in complete framework
- Painted and marked complete body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- Spare nut
- Wheel wrench
- Pinion treatment device
REQUIREMENT TO OPERATE
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
