Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)  [KY-32790]

Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)
Price:
USD$0.00
Brand:
Kyosho
Model:
KY-32790
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
The prevailing MINI-Z is set up receiver, servo and ESC by 1 controlled PCB product. Nevertheless the new MR-03EVO Chassis Set has separate receiver as 1 product. By purchasing and installing an optional receiver product dependent on applied transmitter, permits for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. It will be also applied with Sanwa transmitter in future. Further, by setting up new CPU which control servo function only, it improves internal feedback of placement control which will be 11.2 times faster than existing VE professional models. The newly developed control program realizes top ever steering feeling within the MINI-Z history. The ESC also improves the reaction rate in optimum 100 times faster than existing VE professional models. The included KYOSHO SPEED HOUSE XSPEED 120 (12000KV) brushless engine features a one-piece aluminum case that provides efficient heat dissipation for superior cooling. Unlike past framework sets, it is possible to alter to the brushed motor mode although the I.C.S supervisor to put in an optional brushed engine. The I.C.S supervisor also permits more precise environment adjustments to be made. Brand new advanced performance features within the MR-03EVO simply take the MINI-Z race experience to another location level!

TECHNICAL INFORMATION

  • Length 117.7mm
  • Width F:7075mm/R:7076mm
  • Height 35mm
  • Wheelbase 98.0mm (LL)
  • Tread F:61.566.5mm/R:61.565mm
  • Tires (F/R) φ25×8.5mm (sold individually)/φ25×8.511mm (sold separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight g (approx.)
  • Motor KYOSHO SPEED HOUSE/12000KV Brushless Motor

  • KIT ARTICLES

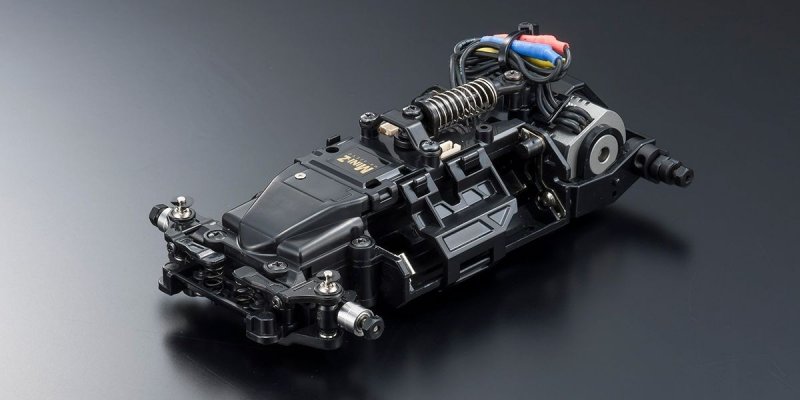

  • MR-03W-MM Factory assembled chassis with KYOSHO SPEED HOME XSPEED 120(12000KV) brushless motor
  • Parts set for changing front side tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

  • REQUIRED FOR PROCEDURE

  • Receiver unit
  • Transmitter compatible with receiver unit
  • Auto Scale Collection (body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
