Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)  [KY-32793]

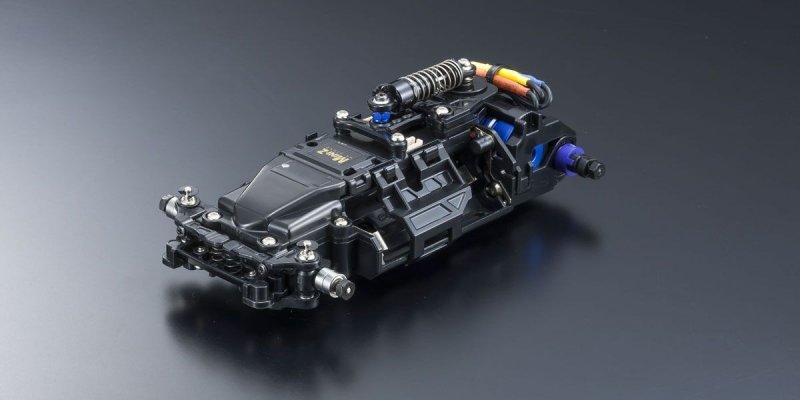

Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)
Price:
USD$192.30
Brand:
Kyosho
Model:
KY-32793
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"

The prevailing MINI-Z is set up receiver, servo and ESC by 1 controlled PCB device. Nevertheless the new MR-03EVO Chassis Set has separate receiver as 1 unit. By buying and installing an optional receiver device dependent on used transmitter, it allows for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by setting up brand new CPU which control servo function only, it improves internal feedback of positioning control that will be 11.2 times quicker than current VE PRO models. The newly developed control program realizes the best ever steering feeling inside MINI-Z history. The ESC also improves the response speed in optimum 100 times faster than current VE PRO models. The included KYOSHO SPEED HOUSE XSPEED 56 (5600KV) brushless engine features a one-piece aluminum situation providing you with efficient heat dissipation for superior cooling. Unlike past chassis sets, it is possible to change toward brushed motor mode although the I.C.S manager to put in an optional brushed motor. The I.C.S manager additionally permits more accurate setting adjustments to be made. New advanced level performance features in the MR-03EVO take the MINI-Z race experience to another level!
The SP edition has nickel plated hex screws and an oil shock (MZW432) as standard. Also, the ball diff is especially finished with blue anodizing. Additionally, new top arms with different caster angles (1 degree/2 degree/3 degree) are included allowing wider environment range.


  • First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
  • Includes brand new KYOSHO SPEED HOME XSPEED 56 brushless motor (5600KV).
  • I.C.S manager features detailed steering and throttle parameter modification, in addition to switching between brushless and brushed modes.
  • Powered by separate CPUs for ESC and receiver, increased interior processing speed plays a role in accuracy steering and throttle control.
  • Equipped with ball bearings and blue anodized Ball Diff Set II.
  • Newly designed split receiver cover and front upper supply mount render tread adjustment easier.
  • Compatible with optional components for the MR-03 chassis.
  • Including newly developed front top arms with caster perspectives (1 degree, 2 degree and 3 degree)

    • TECHNICAL INFORMATION

  • Length 115.5mm
  • Width 70~76mm
  • Height 35mm
  • Wheelbase 94.0mm(L)
  • Tread F:61.5~63.0mm/R:61.5~63.0mm
  • Motor Mount MM2
  • Tires (F/R) φ25×8.5mm (sold individually)/φ25×8.511mm (sold separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED HOME / XSPEED 56 (5600KV)

    • KIT ARTICLES

  • MR-03EVO-N-MM2 Factory assembled framework with KYOSHO SPEED HOUSE XSPEED 5600KV brushless motor
  • Parts set for changing front tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

    • REQUIRED FOR OPERATION

  • Receiver unit
  • Transmitter suitable for receiver unit
  • Auto Scale Collection (human anatomy set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
    •
