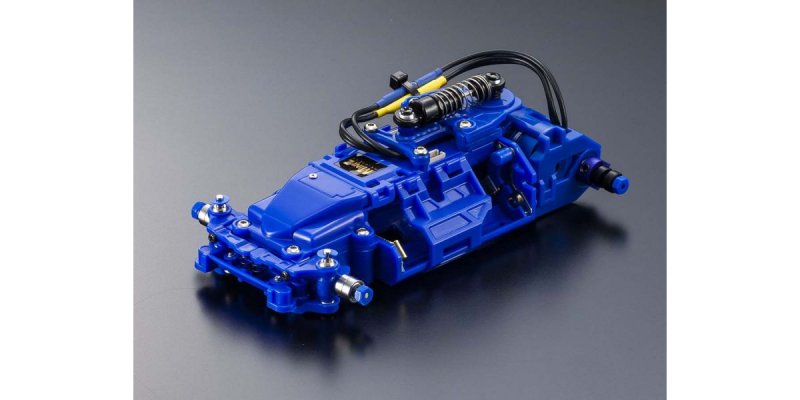

Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)  [KY-32793SP]

Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)
Price:
USD$208.40
Brand:
Kyosho
Model:
KY-32793SP
GTIN:
4548565423194
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
The existing MINI-Z is set up receiver, servo and ESC by 1 managed PCB unit. Nevertheless the new MR-03EVO Chassis Set has separate receiver as 1 unit. By buying and installing an optional receiver device dependent on applied transmitter, it allows for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by setting up brand new CPU which control servo function only, it improves interior feedback of placement control which is 11.2 times faster than current VE PRO models. The newly developed control system understands top ever steering feeling within the MINI-Z history. The ESC additionally improves the response rate in maximum 100 times faster than existing VE professional models. The included KYOSHO SPEED HOUSE XSPEED 56 (5600KV) brushless motor features a one-piece aluminum case that provides efficient temperature dissipation for superior cooling. Unlike previous chassis sets, you can alter towards brushed motor mode though the I.C.S manager to install an optional brushed motor. The I.C.S supervisor additionally enables more exact setting changes become made. New advanced level performance features into the MR-03EVO simply take the MINI-Z race experience to another location degree!
The SP edition is equipped with nickel plated hex screws and an oil surprise (MZW432) as standard. Also, the ball diff is specially finished with blue anodizing. Furthermore, brand new top hands with different caster perspectives (1 degree/2 degree/3 level) are included enabling wider environment range.

＊First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
＊Includes brand new KYOSHO SPEED HOUSE XSPEED 56 brushless engine (5600KV).
＊I.C.S supervisor features detail by detail steering and throttle parameter adjustment, along with switching between brushless and brushed modes.
＊Powered by separate CPUs for ESC and receiver, increased interior processing speed plays a role in accuracy steering and throttle control.
＊Equipped with ball bearings and blue anodized Ball Diff Set II.
＊Newly designed separate receiver address and front upper arm mount render tread modification easier.
＊Compatible with MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV) for the MR-03 chassis.
＊Including newly developed front top arms with caster perspectives (1 degree, 2 degree and 3 degree)

in line with the MR-03VE PRO framework, newly created separate receiver address and front top supply mount make tread modification easier.


Receiver units available are for KYOSHO, KO and FUTABA transmitters and may be attached/detached by detatching receiver address from top framework.


Brand new KYOSHO SPEED HOUSE XSPEED 56 brushless motor (5600KV) features a one-piece aluminum case that realizes efficient temperature dissipation.


Designed with Ball Diff Set II that reduces weight of aluminum parts regarding the spur gear part and optimizes balance on hub part. This is certainly a must-have product and it is utilized usually in competition-level racing.


Comprehensive ball bearing requirements minimize drive loss



TECHNICAL INFORMATION

  • Length 120.5mm
  • Width 70~76mm
  • Height 35mm
  • Wheelbase 94.0mm(L)
  • Tread F:61.5~63.0mm/R:61.5~63.0mm
  • Motor Mount MM2
  • Tires F: 25x8.5mm (sold individually)/R: 25x8.511mm (sold individually)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED HOUSE / XSPEED 56 (5600KV)


KIT CONTENT

  • MR-03EVO-N-MM2 Factory put together framework with KYOSHO SPEED HOUSE XSPEED 5600KV brushless motor
  • Parts set for changing front side tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts


REQUIREMENT TO OPERATE

  • Receiver device
  • Transmitter compatible with receiver unit
  • automobile Scale Collection (human body set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
