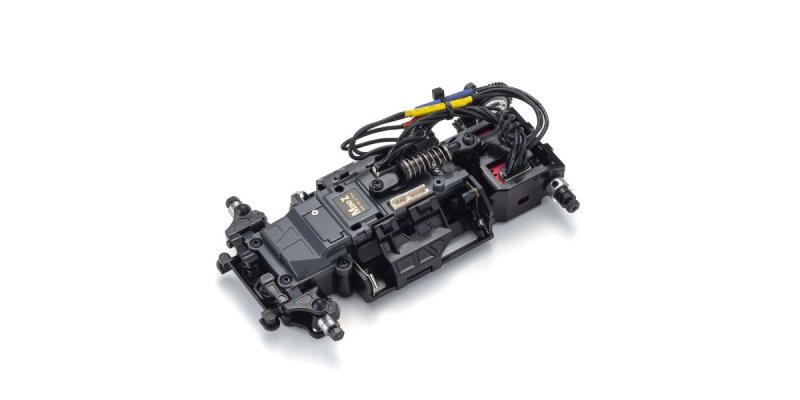

Kyosho 32890 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)  [KY-32890]

While keeping aspects of the superb MR-03 design, the brand new MR-04EVO2 chassis achieves significant performance improvements with changes to your front suspension and a diminished C of G that work in synergy with a sensored brushless engine. Both slim and wide tread settings can be found by changing the low and top plates regarding the front side along with the steering tie pole. Adjustable wheelbase enables chassis setting according to body type.

- While camber angle is optimized during cornering utilizing the swing for the current top supply design, leading suspension utilizes the brand new kingpin-integrated knuckle to further improve camber stability. Geometric modification of caster and path etc. provides more linear maneuverability. Brand new spec front side springs the MR-04 with different hardness can be found as options.

- Front knuckle design features incorporated kingpin with optimized approval utilizing the kingpin ball for smoother procedure. Ball bearings were changed to 3mm internal diameter for lower rotational resistance.

- All 7 ball bearings are 3mm internal diameter for lower rotational resistance to attenuate friction loss.

- reduced mounting for the AAA batteries on the chassis realizes a reduced center of gravity set alongside the MR-03. In combination with the chassis shape, this improves security through corners along with boosting speed and control.

- Ball differential included as standard optimizes the rotational differences when considering remaining and right back tires when turning. Additionally provides moderate slide action to enhance traction whenever excessive load is applied. Silver clear anodized finish to aluminum parts produces a formidable style to match performance.

- This new unit additionally supports high-speed interaction with various high-end transmitters and receivers to appreciate unprecedented control reaction. Achieves transmission rates of 0.99ms with KO devices (ADV mode) and 0.9ms with Futaba devices (EVO2 mode). *Previously 2.6ms ~ 3.0ms

TECHNICAL DATA

• Length 124.5mm
• Width 72-76mm
• Height 31mm
• Motor Mount MM
• Wheelbase 98.0mm (LL)
• Tread(F/R)63.5-65.0mm/61.5-65.0mm
• Gear Ratio 7.3/6.3/5.5/4.9:1
• Weight 135.5g (Body / tires / wheels maybe not included.)
• Motor KYOSHO SPEED HOUSE XSPEED 85 (KV8500)

KIT CONTENT

• MR-04 EVO2-W-MM Factory assembled chassis with KYOSHO SPEED HOUSE KV8500 brushless motor
• Parts set for changing front side tread
• 6T/7T/8T/9T Pinion gears
• Wheel wrench
• Tools for pinion gears
• Spare wheel nuts

REQUIREMENT TO PERFORM

• Transmitter
• Receiver unit (appropriate for EVO/EVO2)
• ASC
• AAA x 4 batteries for chassis
• Batteries for transmitter
