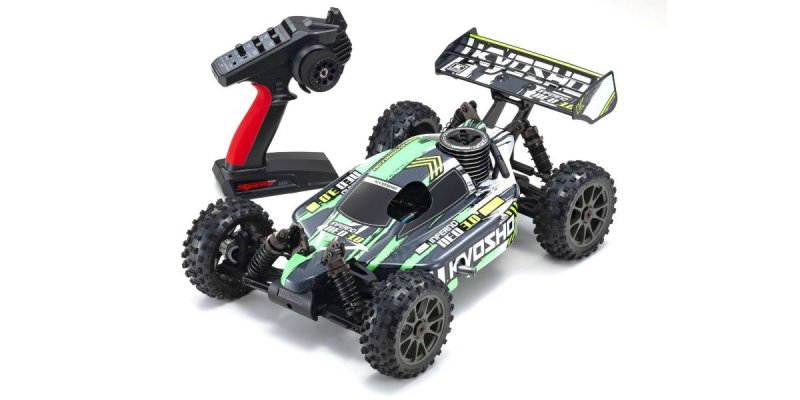

With 8 World Championship titles, the ‘Inferno’ is proud to be KYOSHO’s flagship model. Infused with Inferno DNA, the Inferno NEO 3.0 is ready to race almost once it is out from the box and brings the Inferno’s glorious performance potential at your fingertips of everyone. While excelling on racing circuits, the NEO 3.0 also runs through rough landscapes like a boss with features including the user-friendly KE21SP engine with recoil pull starter and Big Bore Shocks because of the omnipotent KC Cross Tires that deliver an optimal stability of performance and running security on any surface. In line with the competition-level framework, the NEO 3.0 promises exceptional dependability and durability plus wide scope for setting corrections and custom performance upgrades through the huge range of optional components readily available for the MP7.5 series. Exceptional excitement of engine-powered off-road buggy race is made effortless utilizing the Inferno NEO 3.0!
•Factory put together Readyset includes every thing except gas, batteries for transmitter and receiver, starting tools.
•Equipped with four-wheel double wishbone suspension.
•Universal swing shafts are standard on front drive section and minmise drive loss and improve crash resistance.
•Gear diffs on center, front and rear ensure optimal driving force is utilized in all tires.
•Double disc brakes supply the stopping power required for a sizable race machine.
•Sealed mechanical box protects the battery pack and receiver from crashes, sand and dirt.
•Rear wing angle are adjusted and combined with the brand new human body to fine-tune the traction faculties. Wing attaches toward wing stick with simply two screws and understands excellent crash opposition.
Race-bred framework combines superior driving performance with durability and dependability. Also designed with side guards to guard the RC system and muffler from crash effect.
Newly developed KE21SP motor provides an optimal stability of power, torque, idling security and easy launching. Features rear leaving exhaust, recoil starter and slide carburetor.Engine break-in is created effective and easy also for newbies with all the inclusion of reducer for break-in.
Resin Big Bore Shocks on front side and rear function spring modification and deliver excellent impact moderation and superior operating security under any situation.
Wide setting range and accuracy modification of front suspension can be done with adjustable rods on upper arms and tie rods.
High-torque & waterproof kind KS-5031-09MW servos with metal gears are equipped on both steering and throttle to carry out the heavy lots anticipated with off-road buggy driving.
Designed with KC Cross Tires which are fashioned with a block pattern noticed in motocross bikes. Wear-resistant, these tires deliver excellent performance on any area.
Newly developed human body features high-visibility graphical color printing. Body is pre-cut and filled with decals used so any further work is needed.
Front Shock Stay of MP9 TKI4 V2 reinforced to 5mm depth from 3mm among previous type to considerably improve durability and rigidity, further improves stability and traction when jump landing.
2.4GHz Syncro KT-231P+ transmitter permits dial modification of throttle trim, steering trim, throttle EPA, and steering dual rate.
TECHNICAL INFORMATION
- Length 469mm
- Width 307mm
- Height 189mm
- Wheelbase 325.5mm
- Tread (F/R) 258mm/261mm
- Tire (F/R) φ116×44mm/φ116×44mm
- Gear Ratio 11.56:1
- Weight 3,400g (approx.)
- Engine KE21SP
- Transmitter 2.4GHz Syncro KT-231P+
KIT CONTENT
- Factory assembled chassis detailed with control linkages
- Finished human anatomy detailed with imprinted color scheme
- 2.4GHz Syncro KT-231P+ transmitter
- 1.52.02.53.0mm L shaped hex wrenches
- Cross wrench
- 17mm wheel wrench
REQUIREMENT TO PERFORM
- Glow fuel
- 8 x AA size alkaline batteries for transmitter and receiver
- Engine launching tools (fuel container, plug heater)
