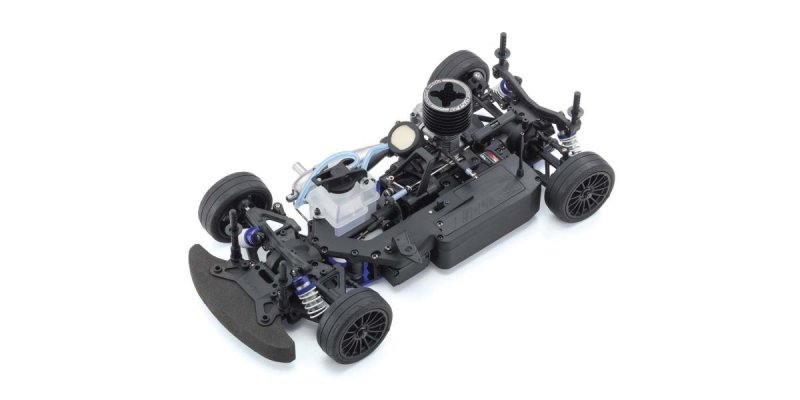

Kyosho 33216 - 1:10 Scale Radio Controlled .15 Engine Powered 4WD Touring Car FW-06 Chassis Kit  [KY-33216]

Packed with KE15SP motor with fall carburetor fitted with slow idle adjustment.

Double wishbone suspension with adjustable camber and toe perspectives.

Machined aluminum oil shocks with dial for stepless tension and height modification to realize stable operating performance.

2-speed automatic transmission included as standard makes effective utilization of the engine's power musical organization. Durable shaft-driven 4WD chassis are enjoyed an array of areas.

Turnbuckle tie-rods used for steering pole and back upper hands for fully adjustable alignment.

Universal swing shafts increase dependability of the front drive.

TECHNICAL DATA

• Length 375mm
• Width 200mm
• Wheelbase 258mm
• Tread (F/R) 176mm
• Tire(F/R) 66x25mm
• Gear Ratio 7.47 / 5.44:1
• Weight 1,800g (approx.)
• Engine KE15SP with recoil starter
• Max Speed 64Km(approx.)

• chassis kit
• FAT701M TC Tire (M)&Inner spongeVZH003BK Wheel(maybe not glued)
• Pre-mounted KE15SP engine with recoil starter
• Setting modification parts
• 1.5mm/2.0mm/2.5mm/5.0mm Hex wrench
• Cross wrench
• 3/4/5/5.5/7/8mm Spanner

REQUIREMENT TO OPERATE

• 2ch R/C automobile transmitter
• Body
• Servos x 2
• 4 x AA size alkaline batteries for receiver and Battery Holder or Battery
• 4 x AA size alkaline batteries for transmitter
• Switch
• Silicon oil for Shock
• Silicon oil for diff
• Grease
• GP opening Tool Set
• Fuel Bottle
• Glow Fuel
• Tool
