For the pure enjoyment of R/C automobile driving, the mixture of a beautifully reproduced vehicle body using the FAZER show chassis can’t be beaten. Kyosho has had its standard touring automobile framework and given it a complete model makeover that has developed performance to a brand new degree. A simplified design with less components has improved upkeep effectiveness and paid down fat while core energy and rigidity happens to be increased through brand new materials and ribbing and stiffeners on front side and backside. Besides, the symmetrical framework design synergizes exceptional front-rear balance through the suspension system with responsive control, irrespective of power supply. Featuring slipper clutch, front & backside gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance enables motorists to unleash the entire potential associated with the chassis. Brake disc wheel hubs with two various offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width human body designs and allows the wheelbase to be adjusted to 260mm by changing some components (sold separately) for compatibility with other 1/10 scale human anatomy styles, furthermore your body included. The Readyset package comes completely assembled and includes everything except charger and battery pack the framework, and batteries for the transmitter.
●“Ultra Scale Body” replicates the fine details of the body associated with the automobile. Kyosho took a step further in scale realism.
●New design shaft drive full-time 4WD touring chassis（FZ02）.
●Factory-assembled Readyset package just calls for 4 x AA alkaline batteries the transmitter, and battery pack with charger the chassis.
●Equipped with 2-bevel grease-filled gear diffs on front and rear.
●Large size dog bones and glass joints understand superior reliability and durability.
●Belt mounting battery compartment enables different battery kinds to be used.
●Full ball bearings that decrease drive loss prepared throughout the drive system.
●Features KS202W waterproof steering servo.
●Includes totally completed body with color scheme and decals used.
●Sealed differential and transmission deliver dependable performance, also on dusty parking lot surfaces.
●Performance could be further enhanced by setting up different optional components.
Completely new chassis understands low center of gravity featuring its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the primary framework, the nylon product reduces weight while enhancing effect opposition. Each key component was strengthened inside simple design without upper deck.
Features a lower number and number of screws and parts, and consolidation of frequently employed screws to the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for simple disassembly.
Handling facets including bump steer and scrub radius are optimized on front suspension system. Easy ball-connected steering knuckle promises reliable control motion. Interchangeable on both front side and rear left-right hub companies optimize extra parts utilization and improve maintenance efficiency.
Includes selection of two offset brake disk wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm human body widths.
New design oil shocks mark an evolutionary intensify from past models Oil shock is newly created. Optimal front-rear geometry and balance at the same time provides both light managing and accurate control. Loaded with long surprise end allows a higher ride height to pursue true scale look.
Standard spur and pinion gear environment is 68T and 32T, but 9 pinion gear settings can be utilized from 29T – 37T to produce an array of gear ratio settings. This new fixed gear mesh engine mount has holes to be used with each different pinion gears. Simply just mount the motor right to the opening places corresponding to the pinion gear. No gear mesh modification is necessary.

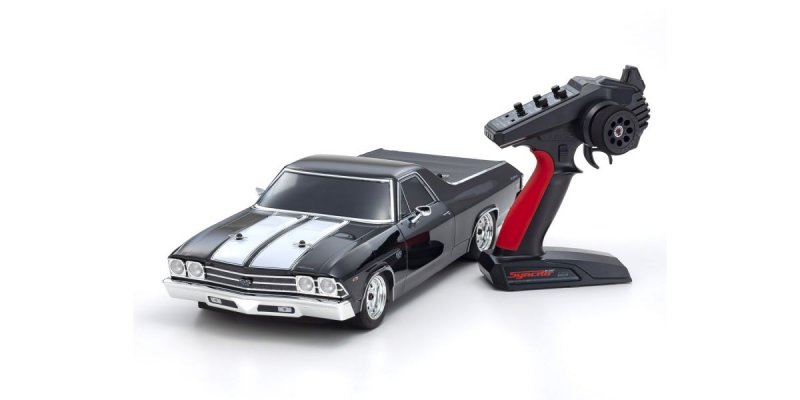

Proudly putting on America’s famous Chevrolet badge, the jet-black human anatomy regarding the 1969 model fuses strength and advanced design into the 3rd generation with this distinctive coupe energy vehicle.
Brand new design Vintage Touring vehicle (VTC) tires & Rostyle type wheels to complement vintage vehicle design.
Is sold with the newest powerful 550 size 14T brushed motor(G14L). The long can with metal band across the engine instance and internal cooling fan provides efficient torque and high speeds.
TECHNICAL INFORMATION
- Length 507mm
- Width 195mm(Body width:210mm)
- Height 136mm
- Wheelbase 260mm
- Tread (F/R) F:167mm/R:167mm
- Tires (F/R) F:64x27.7mm/R:64x27.7mm
- Gear Ratio 6.54:1
- Weight 1650g (approx.)
- R/C system Syncro KT-231P+
- Motor G14L
KIT CONTENT
- Done chassis with R/C radio installed
- Factory assembled human anatomy filled with color scheme
- Syncro KT-231P+ transmitter
- Installed 60A waterproof electronic rate controller (forward/brake/reverse)
- +5mm off-set wheel hub (for 200mm width chassis), M4 x 22 wheel screw
- Hexagonal wrench
- Spanner
REQUIREMENT TO RUN
- 4 x AA batteries for transmitter
- Battery for framework (suggested: 7.2V Ni-MH battery)
- Charger for battery pack for chassis
- Tools
