The FAZER Mk2 Readyset was created for the pure satisfaction of R/C car driving. Available these days as a chassis kit, owners have actually the flexibleness to include their own human anatomy and R/C system. Requirements were elevated with optional components such as for instance HD TC center shaft S and TC universal move shaft L to enhance the unrivaled symmetrical design and front-rear suspension stability regarding the lightweight framework for R/C racers to savor. While the deckless design appears easy, a lowered wide range of elements improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon material further reduces fat and improves effect opposition. With its unique design, the FZ02 framework embodies features and performance that will appeal to R/C motorists of all amounts.

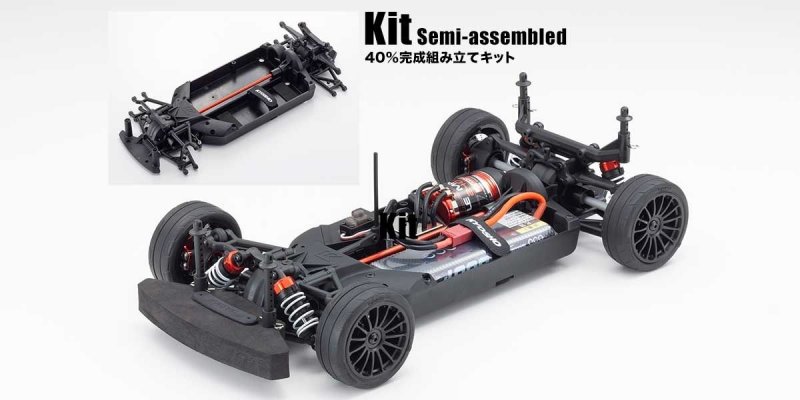

40percent pre-assembled (shocks and diff gears aren't filled with oil so set up could be completed to favored environment). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front & rear stiffeners and rib reinforcement at key chapters of the framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity set alongside the standard resin shaft included in the Readyset. As well as smoother driving transmission, the red anodized color has striking visual appeal.
TC Universal swing shafts L (FAW202) regarding the front drive part don’t drop on heavy contact like dog bone tissue shafts. In addition, the move shafts deliver constant drive transmission even though joint is at a broad steering angle.
A particular resin transponder mounting stay is included for when the framework is contending in race activities. You don't have to produce a handmade stay or holes within the body to suit a transponder.
Included body mounts enable systems from various manufacturers become fitted. Also, two different brake-disk wheel hubs allow 190mm and 200mm chassis width settings for compatibility with various human body types.
Included aluminum dish protects the motor from dust and provides effective temperature dissipation, especially within the temperature of summer time racing.
Oil shocks and springs optimize the front-rear geometric stability, delivering both light handling and accurate control. (Silicone oil the shocks is sold individually)
Bump steer and scrub radius, the 2 facets utilizing the greatest impact on handling, have already been optimized in the front suspension system. Interchangeable front-rear and left-right hub providers improve components efficiency and upkeep.
Original low-profile semi-slick pattern tires and internal sponge (FAT701M) match 15-spoke black colored tires for enhanced rushing appeal.
TECHNICAL DATA
- Length 375mm
- Width200mm/190mm
- Ground clearance 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: 66mm x 25mm/R:66mm x 25mm
- Gear Ratio 6.54:1
- Total storage space fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
- 40% pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum Motor Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human anatomy)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human anatomy)
- body mounts for various manufacturers bodies
- FAT701M TC Tires(M)
- internal Sponge
- VZH003BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO RUN
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended items No.82138/82151
- Body
- 540-550 class engine *Recommended services and products No.37031/37032
- ESC compatible with motor used(Size:L36xW32xH23mm or less)*Recommended items No.37051
- Survo *Recommended services and products No.82273
- Battery charger
- Battery for framework compatible with ESC used(SIze:L145xW47xH25mm or less)*Recommended services and products No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended products No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended services and products No.96162
- Silicone OIL(for Diff)*Recommended services and products F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless engine )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor )
- Paint for polycarbonate human body
- Tools
