O.S. Engine 30 VG(P)-X  [OS-13970]

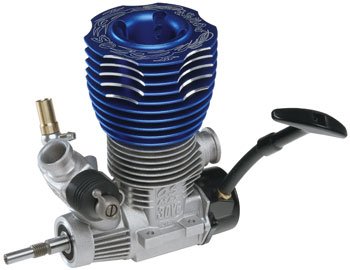

This is the O.S. Max 30VG(P)-X Rear Exhaust Monster Truck Engine with Recoil Starter and Pilot Type Crankshaft.

INCLUDES:

• O.S. Max 30VG(P) Rear Exhaust Monster Truck motor with Pull Starter, illustrated manual, #8 glow plug and #203 air filter, two foam filters and plastic exhaust ring


SPECS:

• Displacement: 0.298 cu in (5.0cc)
• Bore: 0.728" (18.5mm)
• Stroke: 0.717" (18.2mm)
• Practical RPM: 4,000-36,000
• Power Production: 3.0 ps/28,000 RPM
• Body weight: 14.4oz (408g)
• Crankshaft Size: 1/4-28
• Factory Needle Valve Setting: 2-3/4 turns available from fully closed
• Distance Between Mounting Holes Same Side: 0.83" (21mm)
• Distance Between Mounting Holes Opposite Side: 1.4" (37mm)
• Distance Between Mounting Holes Diagonal: 2.3" (59mm)
• Height Bottom of Mounting Ears to Top of Cylinder Head: 3.8" (97.7mm)
• Width of Mounting Ears: 1.8" (45mm)
• Width of Crankcase Below Mounting Ears: 1.2" (30.8mm)
• Distance from Front Bearing to finish of Crankshaft: 1.2" (29.5mm)
• Distance from Center of motor to Front Bearing: 1.7" (44mm)
• Distance from Center of motor to Starter: 1.5" (38.5mm)
