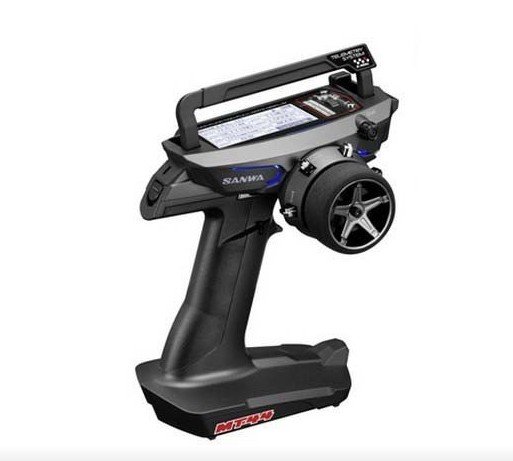

Sanwa MT-44 - 4-Channel 2.4G Transmitter With RX481 and RX482 Receiver  [SW-MT-44-812B]

Beyond Middle Income Radios, The MT-44 Transmitter

• HIGH RESOLUTION DISPLAY
  The exact same detailed dot as M12S enables so clear display.
  Three form of telemetry data is displayed simultaneously due to grey scale display.
• BEST PLACE FOR STEERING / THROTTLE
  Steering/Throttle is arranged into the most useful place for operation.
  Drop Down is used as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries enables become not just compact and light.
• USB CHARGE
  When used with optional Li-Po 1 mobile battery pack, fat become lighter and it can be changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• Quick Setup Wizard
• Safety Link
• Racing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry Switch
• Clock
• Circumstance Temperature Display
• CSV production for LOG data
• CODE 10-compatible (Naming support)
• Simultaneous three telemetry data display
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB change support)

• Large complete dot LCD monitor
• Wight LED right back light
• Full adjustable trigger
• Telemetry function
• integrated antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Dual Rate
• End Point Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable Rate Control)
• AUX1 (Movement type for 3CH. it's the same as MT-4S function.)
• AUX2 (Movement type for 4CH. it's the same as MT-4S function.)
• Fail safe (power/ battery pack) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (whenever combined with facts, 250 models can be acquired.)
• Model Name (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model Select
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• reaction Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE SETTING
• CODE AUX (w/ Naming function)
• STEP AUX (1 - 100)
• POINT AUX (2 - 6 point)
• 4WS MIXING (Front/Rear/Normal(coordinate period)/Reverse(opposite stage))
• MOA MIXING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH MIXING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• Volume Adjustment
• Mechanical Rudder Angle
• Small Grip Pad

Compatible Receivers:

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


Cautions and supplemental description:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA brand new SSL SYSTEM

• Whenever used in combination with appropriate RX-472, RX-482, Super Vortex Series, SV-Plus Series, the environment of ESC etc. by Transmitter is available through SSL functions while driving.
• Since the environment can be done with no stop of vehicle, the detailed adjustment according to Race conditions
  is available without disruption of Intervals and also the modification of machine conditions.


[Response of Telemetry System]

• It's said that telemetry system reduce reaction speed. However, SANWA Original information Processing and Algorithm Design makes Telemetry feasible without response speed decrease.
  Our Excellent Telemetry System doesn't have response speed reduction.
• With our telemetry system, the valuable battle data can help the following competition environment and driving.


[Response Mode]

• Please do not use Analog Servo for SHR mode or SSR mode.
  If analog servo is used for SHR mode or SSR mode, the servo will likely be broken and can perhaps not work.
  Digital servo (SRG show, Digital ERG show, SDX show) may be used both for NOR mode and SHR mode.
• SSR mode may be used just by SRG show servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR usually do not work.
  Please use NOR mode for the above ESC.
