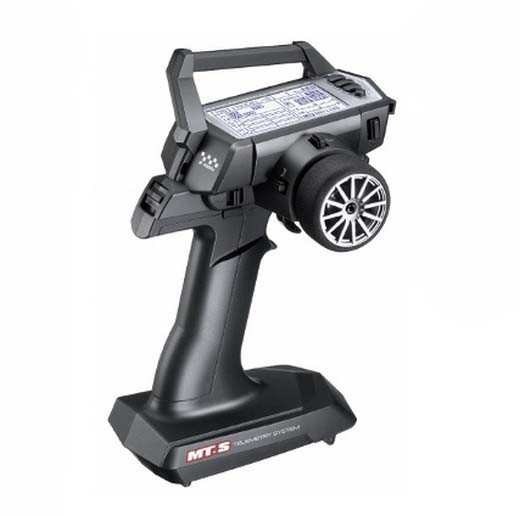

Sanwa MT-S - 4CH 2.4Ghz with RX-482 x 2, FH4/FH3 SSR SSL 4cell  [SW-MT-S]

QUALITIES:

• SETUP WIZARD FOR EASY SETTING,CAR TYPE(8 MODEL TYPES) COULD BE SET DEFINITELY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,The suitable equipment are set by transmitter through CODE AUX functions.
  *Compatible equipment: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain modification)
• LIGHT BODY (366g),EASY PROCESS FOR KIDDIES
• MIDDLE CLASS (BASIC)

SYSTEM QUALITIES:

• WHITE LED BACK LIGHT
• LARGE FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• INTEGRAL ANTENNA
• TELEMETRY FUNCTION
• DUAL RATE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE PRICE CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY PACK)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKE
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT ESTABLISHING
• TELEMETRY ESTABLISHING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / AMOUNT CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD COMPARISON
• VOLUME ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE PROCESS TYPE OF 3CH)
• AUX2(SELECT THE PROCESS SORT OF 4CH)
• AUX TYPE SETTING
• CODE AUX (SUITABLE FOR SUPER VORTEX ZERO & TYPE-D MENU)
• STEP AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS BLENDING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE PRICE IS VARIABLE.
• AUX MIXING (ST MIXING, TH MIXING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,
  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL EXPLANATION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA brand new SSL SYSTEM

• whenever used with appropriate RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter can be acquired through SSL functions while driving.
• Since the setting can be achieved without the end of vehicle, the step-by-step modification prior to Race conditions is available without disruption of periods therefore the modification of device conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• It is often stated that telemetry system reduce reaction speed. However, SANWA Original information Processing and Algorithm Design makes Telemetry possible without reaction speed reduction.
  Our Excellent Telemetry System has no response speed reduction.
• With our telemetry system, the valuable competition information can help the following competition establishing and driving.

[RESPONSE MODE]

• Please don't use Analog Servo for SHR mode or SSR mode.
• If analog servo is employed for SHR mode or SSR mode, the servo is going to be broken and can maybe not work.
• Digital servo (SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.
• SSR mode can be used only by SRG series servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR do not work.
• Please use NOR mode the above ESC. SV-08, HV-10, HV-12, F2500 can work by NOR/SHR MODE.
