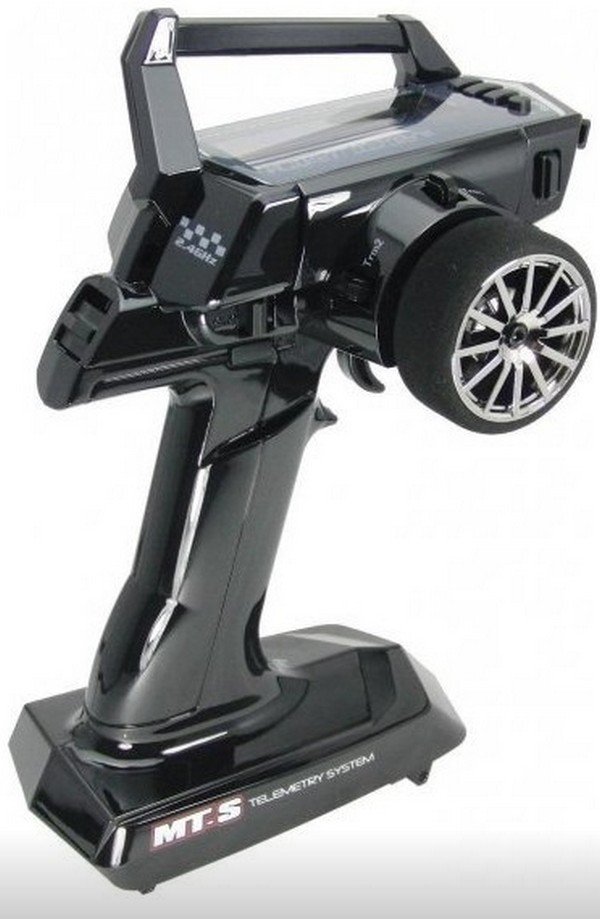

Sanwa MT-S Piano Black Limited Edition With Receiver RX-482 and RX-481WP  [SW-MTS-4821BK]

QUALITIES:

• SETUP WIZARD FOR EASY SETTING,CAR TYPE(8 MODEL KINDS) IS SET DEFINITELY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,The suitable gear could be set by transmitter through CODE AUX functions.
  *Compatible gear: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain modification)
• LIGHT BODY (366g),EASY PROCESS FOR KIDS
• MIDDLE CLASS (BASIC)

SYSTEM QUALITIES:

• WHITE LED BACK LIGHT
• LARGE FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• INTEGRAL ANTENNA
• TELEMETRY FUNCTION
• DUAL RATE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE RATE CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKE
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT ESTABLISHING
• TELEMETRY SETTING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / AMOUNT CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD COMPARISON
• VOLUME ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE PROCEDURE SORT OF 3CH)
• AUX2(SELECT THE PROCEDURE VARIETY OF 4CH)
• AUX TYPE ESTABLISHING
• CODE AUX (APPROPRIATE FOR SUPER VORTEX ZERO & TYPE-D MENU)
• STEP AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS MIXING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE RATE IS VARIABLE.
• AUX MIXING (ST MIXING, TH MIXING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,
  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL EXPLANATION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA brand new SSL SYSTEM

• whenever used with suitable RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC an such like. by Transmitter can be acquired through SSL functions while driving.
• considering that the environment can be achieved with no stop of vehicle, the step-by-step modification relative to Race conditions can be obtained without disruption of periods plus the modification of machine conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• It is often said that telemetry system reduce reaction speed. However, SANWA Original information Processing and Algorithm Design makes Telemetry feasible without reaction speed reduction.
  Our Excellent Telemetry System doesn't have response speed reduction.
• with this telemetry system, the valuable battle information may help another race setting and driving.

[RESPONSE MODE]

• Please don't use Analog Servo for SHR mode or SSR mode.
• If analog servo is used for SHR mode or SSR mode, the servo are broken and will perhaps not work.
• Digital servo (SRG series, Digital ERG series, SDX show) may be used both for NOR mode and SHR mode.
• SSR mode may be used just by SRG show servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR usually do not work.
• Please utilize NOR mode for the above ESC. SV-08, HV-10, HV-12, F2500 can perhaps work by NOR/SHR MODE.

RX-482

• 2.4GHz FHSS4 Spread range system 4ch
• SSL help (ESC: Super Vortex Series etc.)
• Integrated Antenna
• Sanwa Super Response (SSR) support
• Frequency: 2.4GHz FHSS4
• Channel: 4ch
• Nominal Input Voltage: 3.7V~7.4V
• Proportions: 18.2x24.4x27.1mm
• Body weight: 7.1g
• Appropriate radio :M12, Exzes Z, MT-4S, MT-4(No SSL support)
