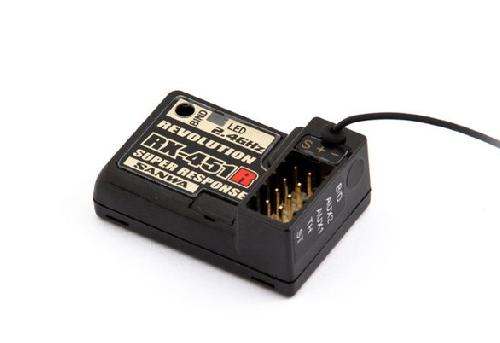

Sanwa RX-451R 4-Channel 2.4GHz Receiver  [RX451R]

2.4GHz FHSS3 Spread spectrum system 4ch,Sanwa Super reaction (SSR) help

• Frequency : 2.4GHz FHSS3
• Channel : 4ch
• Nominal Input Voltage: 4.8~7.4V
• Measurements : 36.5 x 24.0 x 14.5mm
• Weight : 9.0g
• Compatible radio : M11X, EXZES X, MT-4,MX-3X,GEMINI-X

Notice:

• This just does occur on FH3 mode and never on FH4T mode.
  In case there is utilizing M11X with RX-451R, the normal servos (like analog servos) therefore the ESC are not capable of utilizing "SSR" and "SHR" mode. Additionally "NOR" mode won't be competent to utilize, in case your receiver shows above signs.
  Proportions on item specification only shows the dimensions of receiver itself plus it excludes period of the antenna and crystal projection.
  To steadfastly keep up the reception of device, please do not cut the antenna. For additional information, please read official manual for every single product.

Notification about RX-451R using with FH3 mode.

• Please be noted that as a result of the unique specification, some transmitters show below signs using FH3 mode with RX-451R.
  (Indication On Display) (Real Movement)
  NOR > SHR
  SHR > SSR
