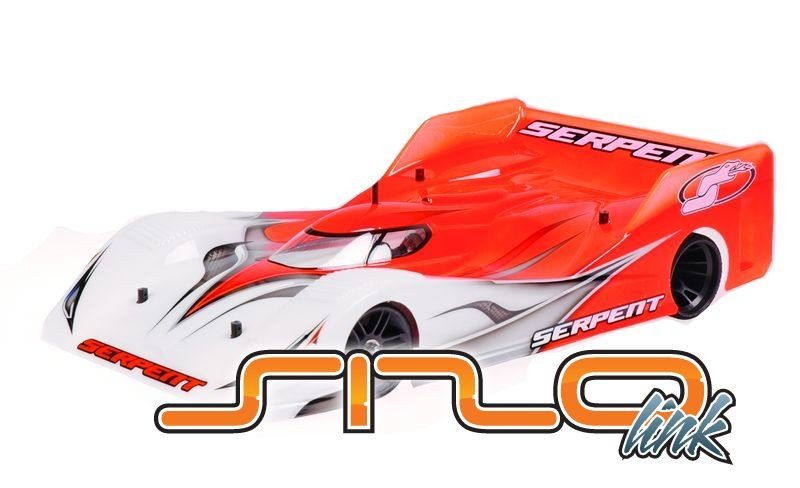

Serpent 1/12 scale pancar S120 Link. Link form of the effective S120 1/12 scale pan-car (SP-400001). High performance 1/12 scale pan chassis, with well machined carbon fiber and aluminium components.
Specifications:
- Class: 1/12th scale
- Function: Competition pan vehicle
- Chassis: 2.5mm carbon fiber, 4-cell, CNC machined
- back axle: Graphite shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: main oil filled shock absorber and lateral monoshock
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front: 163mm +/- 3mm
- Track-width backside: 170.6mm
Features:
Front end
The front end of this vehicle features 11 various alterations to help you get the most from your car, which are really easy to adjust and measure. Fixed lower suspension system hands are on their own damped by the main strut which utilizes plastic o-rings to occupy the flex in this area, whilst the grey anodised aluminium front top wishbone mounts can be found in different caster perspectives, the car being given 6 degree variations as standard. With the steering block master pins spring loaded, the cornering forces are channelled through the top wishbone, which help the car to corner at high speeds.
Monoshock
Another unique feature of S120 Link is its laterally mounted floating monoshock which dampens the flex between your chassis and the motor pod. Mounted utilizing ball bones through the top of the rear engine pod, both ends of shock shaft are connected to the the surface of the back carbon body mount plate regarding the chassis, and thanks to its design even the smallest of motions between your front side and rear regarding the car is effortlessly absorbed. This technique plays a big part in how the vehicle becomes a corner and this can be modified through the use of various oils and surprise pistons.
core area
The springloaded side-bars, backlinks, are constructed with composite nylon and control the roll for the framework, alongside the lateral damper additionally the primary central surprise. Precision made springs and pivot balls.
The main section is a mix of elements to manage the movements of the rear end completely
- a central main surprise, in line with the famous Serpent RCC technology; the shocktower enables different perspectives.
- the set down mono-shock, same as found in the S120T before, with through kind shock-rod, and exemplary dampening charateristics
- 2 spring loaded shaped side bars
These elements communicate generate perfect managing (roll, bump and positioning) under all grip-conditions.
Body post
For securely mounting the human body shell towards S120 Link, the automobile has strong synthetic human anatomy posts front and rear. All 4 posts are provided with orange anodised adjustable collars to precisely adjust your body's height and the posts are provided extra very long allowing the user to cut them with their own favored size. Leading human anatomy articles have also been built to help protect the leading associated with carbon framework from splitting in case of a heavy front impact.
Battery mounts
On S120 Link, the cells can be mounted in 2 various positions by changing the composite battery insert mounting place. Attaching it towards front side or backside of this slot means the cells can go by 4mm, perfect for adjusting the automobiles weight distribution.The S120 Link also incorporates 4 pcs of Lipo inserts manufactured in nylon, which are often glued toward Lipo pack and fit the battery-slots perfectly and so have them set up.
Servo saver
The S120 Link comes provided with a high quality miniature servo saver, which by using orange anodised shims, has adjustable Ackerman. The kit contains 3 alu servo articles from which to choose, which permit completely focused mounting of any popular brand name servo.
back axle mounts
The lightweight graphite backside axle is attached to bearings that sit within eccentric composite inserts which allows the user to capability to easily and quickly alter the trunk ride height of this car by simply changing between inserts. The kit comes provided with all 9 inserts which range between 0 and 4mm, each differing by 0.5mm and all are reversible for a straight wider array of modification.
back ball differential
The S120 Link comes supplied with a durable and high performance ball differential. Easily adjusted by a plastic nut, available through the right rear wheel, the diff makes use of top quality steel balls and dishes and it is given both suitable silicone and graphite grease for use during construction and upkeep.The re-designed back diff features enhanced hardened D-plates and carbon shaft construction for super smooth diff action.
Central shock absorber
To aid rear traction under acceleration and also to absorb bumps, the S120 Link recreations a centrally installed surprise absorber. Provided with a soft springtime, the pre load that can be modified, leading mount with this surprise absorber is employed for adjusting a corner down stop and range of motion involving the chassis and motor pod.The main surprise is installed on a shock-tower with numerous roles to pick from.
Rear motor pod, chassis
The strong basis is created by the 2.5mm dense carbon fibre framework dish with pockets to allow 4-cell packs or 1S Lipo pack, with aids enabling a forward or backward battery pack position, and enough room for all your valuable electronic devices.
The newly created motorpod is a beautifull mixture of quality machined alu brackets and excellent carbon fibre parts, bolted together to generate an ultra rigid back pod. The brand new motor-bracket allows the brushless engine to be installed inside optimal place for automobile stability while offering good heat dissipation and .
