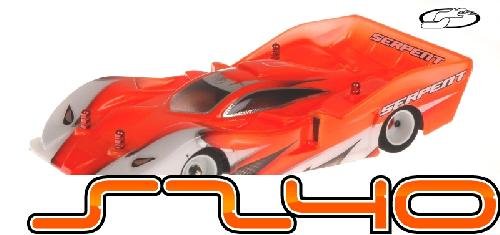

The Serpent S240 is a 1/24 scale electric 2wd pan-car. Simple, fast, proven and strong design. No complicated suspension designs or set-ups. A pure enjoyable racing framework, for sheer endless amounts of track-time.
Requirements:
- Length: 170mm
- Width: 88mm
- Height: 20mm
- Wheelbase: 116mm
- Track: 88mm/96mm
- Body weight: 190 grms (with battery/motor/tyres/body)
Features:
Front end S240
Front end is comprised of carbon fiber and aluminium components, attached to the framework, pivoting on 2 soft silicone grommets, producing exceptional front side end grip.
Machined aluminium steeringblocks with nylon insert for smooth procedure, captured by top and lower carbon fiber brackets.
Adustable toe in combined with durable anodized track-rods for precision-steering.
Body-shell
The nicely designed GTP kind body-shell in lightweight 0,5mm product, for great appearance and superb maneuvering.
Protection
Rear bumper to absorb the effect of fellow race-cars striking from back, and protect foam tyres and primary gears from hits.
Wheels, tyres and adaptors
Machined aluminium rear wheel-adaptors for super-true operating back wheels. Foam rushing tyres on closed dished type tires.
Motor
The S240 micro electric brushed engine capabilities this micro-verhicle. Motorpinion 10T is standard ( other as optionals).
Ball-differential
The ball-raced ball-differential functions with dishes and 12 steel balls. Standard with 42T white gear.
Rear end
Backside motorpod contain 2 equal machined anodized aluminium motormounts, installed on 2 carbon chassis-risers, which can be taken out as well, based on area. Carbon fibre top-plate links the motormounts and created a corner end stability and tightness. There was adequate area for the motorcables-to link.
Lipo Power
The 2 or 4 Lipo-cells (maybe not included) are captured inside lexan holder, below the radioplate. Pack sits low and central inside vehicle for most useful weight distribution, which helps ultra-quick and stabile cornering.
Upper-deck
Carbon fibre upper radioplate with anodized aluminum antenna-holder. The S240 accepts speed-controllers for micro-cars associated with major brands.Central back vertical dampening coupled with a laid down rear shockabsorber to control the trunk end of the automobile. Anodised aluminium bodyposts on far corners. Carbon fibre chassis 1.2mm with integrated T-bar flex design, 2 slots to help keeping the lexan battery-holder set up.
Bumper and servo position
Strong nylon front side bumper with machined, anodised aluminium body-posts. Adequate room for the lay-down micro-servo 30x30mm ( perhaps not included)
