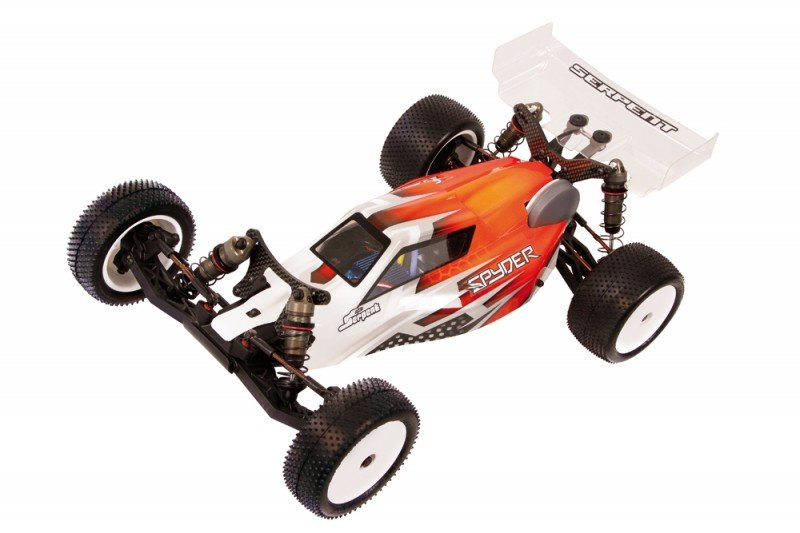

Spyder Buggy SRX-2 MM 2wd 1/10 Serpent MM MidMotor Spyder SRX-2 higher end competition buggy.The mid-motor variation is purpose built sharing many parts along with its backside motor cousin. The idea was to build two condition specific designs, aided by the highest level of performance possible. Motorists per competition will be able to select either version, and can not need to produce any modifications at that moment. Front end on both kinds is same, but framework and all sorts of rear end varies a whole lot.
Requirements:
- Class: 1/10 buggy 2wd
- Level: Competition
- Length: 385mm
- Width: varies with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Weight: varies with gear utilized
Features:
- High performance race geometry
- Mid motor design
- Unique steeringblock design
- Big bore 12mm RCM kind shocks with double system
- Innovative shocktower design
- Definitely Effective Steering ackermann
- Adjustable rear differential height
- 3 pad slipper clutch
- Narrow composite chassis design
- Low, cab ahead body
Chassis
Composite chassis dish with a layout enabling a fantastic fat stability, and optimal area for the electronic devices, battery and servo. Leading Kick-up angle into the Chassis includes more approval for race and permit to get more nose landings. Carbon fibre front and rear surprise towers. The 4mm thick carbon fiber surprise towers have multiple shock angle positions permitting clients to fine tune for varying track conditions.
Shock absorbers
Double system 12mm big bore shocks with hard coated threaded figures, a unique cap design, a fantastically sealing o-ring and spacer package. The Shocks is found in Bladder or Emulsion setups. The shock-set is sold with some moulded pistons available. A selection of 5 springs-sets can be acquired to fine-tune the suspension system settings. Shock Collars with inner o-rings are employed on threaded systems to set-ride height.
Front top bulkhead
The front upper bulkhead is and supports top of the links and surprise tower in perfect method. The leading part offers the substitute for mount a front wing and sway club product
Front wishbones
The leading Wishbones are produced from a brilliant strong composite product. The arms are angled to optimize the CG and pivot on 3mm captured pins inside and away. The hands have actually 2 mounting roles for surprise angle and therefore are prepared to make use of an optional anti-roll club if needed.
Front and Rear Track Rods
Spring steel front and back track rods are mounted to durable composite captured ball joints. The track Rods have L/R threading for easy alterations.
Castor blocks and settings
Caster block inserts come as 0, 2.5 and 5 degree variation that are included. The caster obstructs are very compact and strong devices created from a special composite product.
Steering Block and Back Upright
The steering blocks fit 5x10x4 mm bearings. The trunk hub uprights utilize a bigger 5x14x4 exterior bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and rear uprights utilize the best high energy materials available today.
Upright Settings
A corner uprights enable you to adjust, the toe in from -2 to + 2 levels by utilization of different inserts additionally included in the kit.
Steering system and Ackermann
The steering system has a reverse moving pivot system that optimizes the efficiency through various different forms of corners. You have 3 Ackerman alternatives to choose from.
Wheel-axles and wheel hex.
The springtime steel wheel-axles utilized 12mm hex adapter to adhere to current market criteria. The front springs steel axle is fixed, although the rear wheel-hex is a clamping aluminum variation.
Battery area mount and weight stability
The battery pack is mounted completely inside center line of the automobile. Its a precise fit for saddle packs. In the event of utilizing a Shorty-pack, it could be relocated to front side or back into play with weight balance. Bits of hard foam are provided doing therefore and secure the battery pack in position. The carbon fiber battery-top-brace has a secure fast release system with handy twist nuts.
Differential
The restricted slip ball differential is a brilliant compact, effective and durable unit. Utilizing 1.8th inches diff balls for ultimate durability. The structure and installation is common key in this course, however the top quality parts and well functioning could make it be noticed. The height of diff may be changed with inserts.
Engine dish and engine guard
The engine dish is a machined aluminum; it is then anodized and machined for fat loss.
Anti-roll bars
Anti-roll bars could be fitted in the front side and back associated with car, but are optional. They can be used on high hold areas to help adjust the vehicles performance
Back Transmission case
The composite backside transmission instance is light and durable. Permits the customer to adjust the differential height every single specific condition. In addition securely holds the engine plate, differential also supports the trunk wing mount and rear carbon fibre shock tower.
Back driveshaft system, wheel-axles
The spring steel drive shafts are thin and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, led by the 2 various size of bearings, internal 10x14x4 mm and external 5x13x4 mm. The driveshaft pin is completely captured to prevent any failure. These bearings are for certain to stand up the rigors of any track condition.
Rear suspension system brackets and toe in
The 3mm spring metal pivot pins take place in position by the suspension bracket created from aluminum. In the bracket you utilize inserts to set toe-in and roll center. It is possible to adjust the toe-in from 2 to 4 degrees and adjust the anti squat from 0 to 4 degrees.
Back suspension system hands
The Mid Motor certain long and durable angled back suspension arms have become tough devices to withstand the rigors for the track and also the hard landings. The rear arm provides 2 alternatives for surprise place and two mounting locations for the trunk anti-roll bar if required.
Back Chassis skid plate
The composite back skid dish connects towards the framework dish. This connection enables you to unclip the trunk end in one piece, but helps reduce the full total price of upkeep. It is also made from incredibly high power composite material.
Body shell and rear wing
The light and low cab-forward style human anatomy, produced in top quality clear polycarbonate, has a great flowing line, high front side windscreen for down force with indents in the part as you're watching windscreen. The shark fin on the top for the cabin offers not only design but stability. The smooth human anatomy lines enhance the vehicles look and achieve this any way you like
The polycarbonate back wing uses raised cutes into the sides to enhance wheel approval.
Back wing owner
The composite back wing owner is linked to the trunk bulkhead and shock tower. It really is fully adjustable from 0,2,4,6 and 8 levels. Its fixed into spot by a washers and screws.
Ballbearings
High speed sealed stainless steel ballbearings with aeroshell oil
Fastners
Tricky metal , mostly allen screws, roundhead and countersunk. Minimized quantity of various allen minds to help make focusing on the car easier.
Wheels
Durable white nylon flat faced wheels, specifically designed to make use of the advancements inside front side and back suspension geometry.
The kit comes filled with body and wheels, full color manual and exploded views, a blank and standard set-up sheet and Serpent decals.
