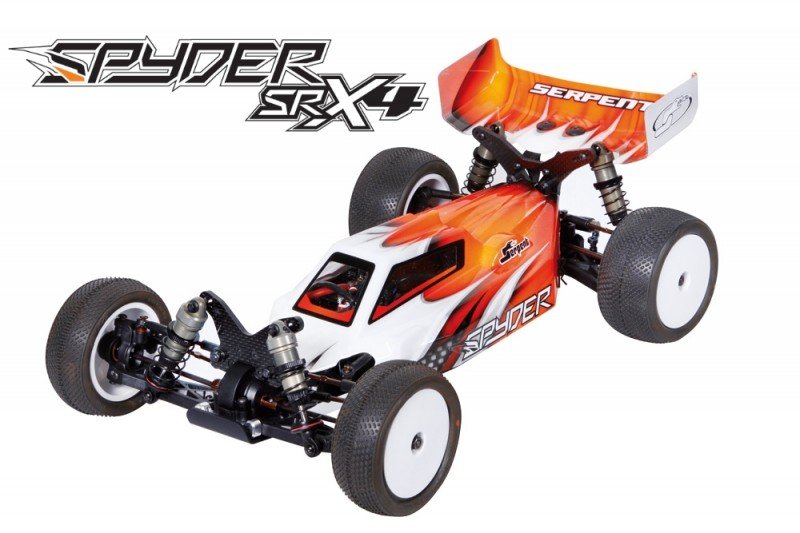

Spyder SRX4 Buggy 4wd 1/10 with alu chassis top quality Race degree 1/10 scale 4wd buggy. Ready for the racetracks in dust, clay, grass, astro or carpeting.
Specs:
- Automobile: Spyder SRX-4
- Class: 1/10 buggy 4wd
- Degree: Competition
- Included: battle framework, body, back wing, rims
- Perhaps not included: tyres, tyre-inserts, electronics
Features:
- Aluminium 7075 T6 hardcoated 2.5mm framework with composite part dishes
- Big bore 12mm hard coated shock-absorbers
- Dual belt-driven drive system, with captured long front gear and available part belt
- Compact and light front and rear gear differentials with composite front side pulley and rear difficult anodized aluminum diff gear
- Slipper clutch with friction pads and solid aluminum front locked clicker
- Durable springtime steel drive shafts, wheel axles and drive cups
- Carbon dietary fiber shock towers front side and back
Central spline
The composite main spline where the front gear runs, produces a very strong chassis stiffener, appropriate in the middle of the automobile. It protects the leading gear well against debris and insures no gear can skip.
Battery and stays
The seat pack battery (maybe not included) is held in position by 2 user friendly composite battery-covers. Small machined aluminum nuts are included to keep them in position.
Electronic Devices
The biggest market of the vehicle allows numerous room to mount typically the most popular speedo and receivers, along with the transponder. The vehicle additionally enables room enough to enable nice routing of your cables. The shorty type servo is mounted on integrated composite stands. Various spacers and horns are included to suit the most popular servo brands.
Drivetrain
The twin gear system is very durable and light. The Kevlar reinforced front belt is fully captured, therefore well protected against debris which increases life. The Kevlar reinforced side gear is open due to its location, plus the closely fitted body will prevent debris from pressing the gear. The belts run on precision machined pulleys. The front gear tension is changed with eccentric inserts.
Gear-diffs
The 2 compact oil-filled gear differentials front side and backside. These super smooth units are light and compact and incredibly durable. The differentials may extremely simple to build and therefore are low upkeep. The diff-inserts inside instances enable for your requirements operate a minimal, mid or high place which alters grip.
The trunk gear diff has a hard coated aluminum gear for durability.
Drive shafts
Serpent springtime metal CVD drive shafts and wheel axles for durability. Also the lightened differential drive cups are in springtime steel.
Suspension pins
Produced in durable and strong Serpent hardened metal. Captured units with curved end which turn in small ball-cups inside the suspension system brackets, therefore it?s super free.
Shocks
Serpent difficult coated shock systems and shock tops for super smooth operation and durability. 3.2mm shafts with brand new X-ring package and molded pistons. The shocks can be utilized either emulsion or membrane layer setup. The surprise springs have actually ground ends, checked and matched for perfect equal procedure. Ride height can be easy set because of the threaded collars which have o-rings inside to stay in position.
Steering
The completely ball raced angled twin axis steering system with integrated servo saver function, offers a nearly perfect Ackermann impact. Ackermann may be set with little dishes which mount toward steering hands. 3 types included to play with. The angled system will prevent bump steer.
Chassis
The Aluminium 7075 T6 hardcoated 2.5mm chassis gets the right flex combined with the composite side-guards / framework stiffeners and center spline. All holes are countersunk to own a completely flat bottom surface. Holes are focused and symmetrical even for flex.
The entire layout gives a 42/58 or 44/56 weight stability. Optional weights and brass parts could be used to influence that.
Shock towers
Very durable 4mm dense carbon dietary fiber front side and back surprise towers with 4 roles for surprise angle.
Shock remains
Very durable aluminum surprise stays along with a small bushing and nylon flanged nuts.
Slipper clutch
This light slipper-clutch product, is a spring packed 3 pad variation, enable to manage the ability distribution.
Front suspension system
Strong composite reduced suspension system hands with mounting spots the optional anti-roll club. Aluminum suspension system brackets with inserts to change set-up. Tiny but effective composite front bumper to protect the front end. The angled front side built-in kick up enables smoother landings. The composite front diff case is a tremendously strong affair to install the diffs, front shock tower, main spline and chassis too.
Steering obstructs and c-hubs
The composite steering blocks and c-hubs provide a variety of set-ups with inserts and shaped changeable Ackermann dishes which all 3 composite ones are included.
Rear suspension
The trunk end stocks numerous components utilizing the 2wd MM Spyder, that is nice if you also operate 2wd. Also here a tremendously sturdy structure using the diff-case as base to mount diffs, surprise tower, framework and engine mount to. Strong composite lower hands. Suspension brackets in aluminum also here with inserts to relax and play with set-up. The beefy composite uprights provide 3 setup position inside top and inserts in underneath.
Back wing and wing owner
The strong clear polycarbonate wing is installed towards the nylon back wing owner. The wing angle can be changed using the included wing angle spacers: 0, 2, 4, 6, and 8 angle are included.
Anti-roll club
Both front side and rear allow mounting anti-roll pubs. As standard Serpent only materials the rear ball-raced anti-roll club, as that is used more commonly.
Motor mount
The engine is installed firmly towards the thick 3mm cnc machined 7075 T6 alu motor plate, which doubles as cooler. Machined slots enable motion of motor to fine-tune the pinion/spur space. The engine holder also holds the shafts of the side belt system, and allows mounting.
Body mounts
The strong composite body mounts are often situated in situation used. As alternative velcro can be included with along side it of the chassis stiffeners.
Body
The human body is made in the same Avenger design due to the fact 2wd buggy and shares its looks and compact form. High quality clear polycarbonate is employed. The body is sold with a masking sheet.
Rear wing and wing owner
The strong clear polycarbonate wing is installed towards the nylon rear wing owner. The wing angle could be changed by using the included wing angle spacers: 0, 2, 4, 6, and 8 angle are included.
Rims
Durable Serpent created wheel are included in white color for front and rear (tires and inserts aren't included).
Clicker system
Standard inside vehicle the ?solid clicker? is employed for permanent 4wd, which for high grip conditions is most beneficial to make use of. The optional clicker system calls for few additional parts only and can be properly used well in medium and reduced grip conditions, to permit the front tires to spin more free and create more corner entry speed as required.
