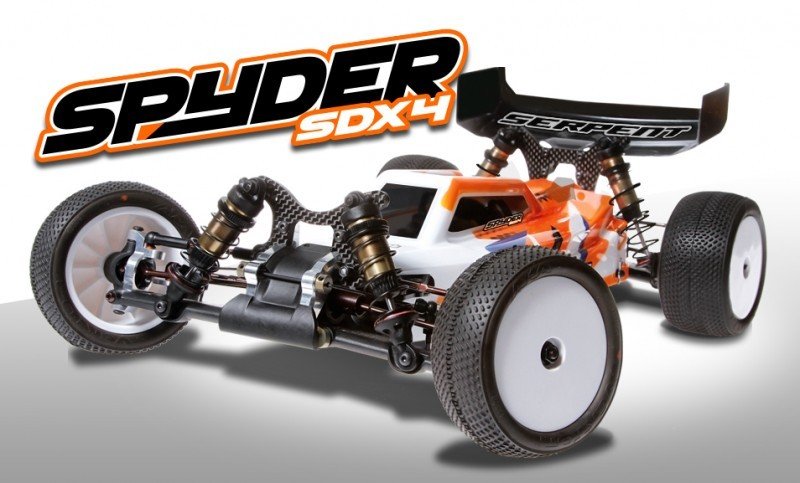

Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd  [SER500020]

Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd
Price:
USD$427.97
Brand:
Serpent
Model:
SER500020
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category
Write a review
alt="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd" title="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd"
alt="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd" title="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd"
alt="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd" title="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd"
alt="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd" title="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd"
alt="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd" title="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd"
alt="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd" title="Serpent SER500020 Spyder SDX4 Buggy 1/10 4wd"

A brandnew higher end Race degree 1/10 scale shaftdrive 4wd buggy in an exceedingly clean, simple and easy available design. Made to perform on all areas with versatile layouts which motor, battery pack and speedo may be installed in many different locations. Highly accessible for maintenance and set-up, with a minimal wide range of screws and screw types.


Specifications:

  • Automobile: Spyder SDX-4
  • Course: 1/10 buggy 4wd
  • Level: Competition
  • Wheelbase: 288mm
  • Front width: 240mm
  • Back width: 240mm
  • Weight: is based on electronic devices and tyres used
  • Included: race chassis, body, rear wing, rims
  • Perhaps not included: tyres, tyre-inserts, electronic devices


Features:

  • Lightweight clamp fitted gear-diffs along with a central slipper
  • Front and back compact and light gear diffs and central slipper
  • 7075 T6 aluminium central diff/slipper owner and motormount
  • 7075 T6 aluminium bulkheads front and rear
  • 7075 T6 aluminium 2mm hard coated framework and carbon stiffeners
  • 7075 T6 aluminium c-hubs
  • 7075 T6 aluminium uprights, equal L and R
  • 7075 T6 aluminium hardcoated suspension system brackets x 4
  • Closed kind suspension hands with optional carbon top-inserts
  • pivotball kind inner hinges
  • bigbore 1/10 shocks with hardcoated housings can be utilized emulsion or membrame design
  • spring metal universal drive and central shafts
  • carbon shocktowers
  • carbon framework stiffner
  • carbon mid area top-plate
  • carbon top steering bracket
  • carbon steeringplate u-bracket
  • Very low and sleek 4wd body and big durable rear wing
  • High-quality ball-bearings

Framework
The hardcoated lightweight 2mm 7075 T6 aluminium framework has the right flex combined with the composite side-guards / chassis stiffeners and center spline. All holes are countersunk to have a completely flat bottom surface. Holes are centered and symmetrical even for flex.

Chassis stiffener
Inside backside the SDX4 features a carbon fibre framework stiffener that is clamped between the rr fr suspension system bracket and bulkhead and also includes the guts. The brace has 5 optional holes to choose the stiffness by putting the little stiffener pole and screw or even incorporating more poles/screws.
The device influences tail flex and is set according to grip levels and driving style.

Battery and stays
The SDX4 car takes a shorty in standard trim, you could additionally mounts saddle packages as needed. The battery pack is held in place by an easy to use composite battery-cover with a twistnut on a single side.

Electronic Devices
The middle of the vehicle enables many space to mount the most popular speedo and receivers, along with the transponder. The automobile additionally allows enough room make it possible for good routing of one's cables. Quietly associated with slipper the SDx4 offers 2 unique cable guiders.

Designs to select from

  • Default is shorty battery pack backside right, motor back left, speedo/RX front kept , servo front side right
  • Motor more toward center ( and swap front and rear central driveshafts)
  • Shorty left and motor right
  • Motor front side left and esc rear left
  • Motor front side left and seat packs in back ( needs optional saddle pack battery brace-set)

Servo mount
The servo is mounted inside car with a stand produced from alu and carbon parts, and is mounted on the centerline inside car, to help keep even flex. Various spacers and horns are included to accommodate the most used servo brands. An optional component additionally permits the servo to be relocated in steering dish and driveshaft. Maximum choice of designs.

Drivetrain
The SDX4 uses lightweight springsteel univeral driveshafts front and rear and main universals too.

Gear-diffs and situations
The 2 compact oil-filled gear differentials front side and backside. These super smooth devices are light and compact and extremely durable. The differentials are also very an easy task to build as they are low maintenance.
Both exterior differential situations ( front side and back) are clamped involving the aluminium bulkheads and need no other fasteners at all. Super simple and fast for maintenance.

Differential primary gear and bevel gear.
The precision machined directly cut differential primary gear and bevel gear are produced in hardened springsteel for smooth procedure.

Balljoints / trackrods
New style and material balljoints for smooth suspensions and steering. The outer steering balljoints are angled to clear all rims/tyres . The trackrods and camberlinks are produced in thin but durable springsteel with L/R threading for easy adjustment.

Shocks
Serpent hard coated surprise figures and composite surprise tops for super smooth procedure and durability. 3.2mm shafts with brand new pre-oiled X-ring package and molded pistons. The shocks may be used either emulsion or membrane layer configuration. The shock springs have grounded ends, checked and matched for perfect equal procedure. Ride height may be effortless set using the threaded collars which have o-rings inside in which to stay position.

Shock towers
Extremely durable 4mm dense carbon fibre front and back shock towers with 3 jobs for surprise angle. For roll center modification the leading bracket features 6 holes to chose camberlink jobs. 3 inner and 3 exterior. The rear you have 8, 4 internal and 4 outer.

Shock remains
Very durable aluminum shock remains along with a little bushing and lightweight composite flanged nuts.

Slipper clutch
This light slipper-clutch device, is a spring loaded 3 pad version, enables to control the power circulation.

Front suspension
Strong composite reduced suspension system hands with mounting spots for the pivotball triggered anti-roll club. The arms are a shut kind design for aero effect, rigidity and clean looks. Regarding top side optional carbon inserts is applied in case harder arms are expected for control. Composite insertplates are standard. The leading arms have 2 shockangle jobs.

Steering blocks and c-hubs
The lightweight composite steeringblocks are combined with aluminium 7075 T6 c-hubs. The c-hubs has 2 roles for rollcenter, and can be further finetuned simply by using just about shims. The c-hubs are 5 degree, other optional people are 0 and 3 degree.

Steering
The completely ball raced angled double axis steering system with built-in servo saver function, offers a very nearly perfect Ackermann impact. Ackermann could be set with small plates which mount towards steering arms therefore the black colored cotaed aluminium steeringbrace has 2 holes available. The servosaver has a pre-load nut to easily set the specified stress.
The steeringsystem is mounted on a carbon fiber u-bracket which also links leading left and right edges and acts stiffener.

Rear suspension
Strong composite reduced suspension system arms with mounting spots the pivotball triggered anti-roll bar. The hands are a closed kind design for aero impact, rigidity and clean looks. In the upper part optional carbon inserts may be used in case harder hands are essential for control. Composite insertplates are standard.
The rear arms have actually 2 shock mounting positions for each side front and backside. The front side and back shockmounting positions are different and arms may be used on both sides associated with the vehicle, and that means you have 4 shock angle jobs to choose form.
The trunk arms enable to mount the shocks additionally in the backside for the car

Suspension arms pivot balls
Instead of inner pivot pins the SDX4 utilizes tiny pivotballs which thread inside the supply. The suspension brackets are machined to adjust the pivotballs and create a decreased friction, no binding suspension system. By turning the pivotballs in or out you can set the optimal play involving the front side and back bracket.

Suspension brackets
Rough coated aluminum suspension system brackets fr fr and fr rr. Small but effective composite front side bumper to guard the leading end. The angled front integrated kick up permits smoother landings.
A corner rear suspension bracket may be used standard with o-degree or upside down as 3-degree anti-squat.

Bulkheads
The strong front side diff instance set up predicated on 2 durable 7075 T6 bulkheads is a very strong affair to mount the diff-housings, front surprise tower and chassis too. Its additionally features the holders for the ballraced anti-rollbarmounts.

Anti-roll club
The front side and rear hands and bulkheads enable mounting the ball-raced anti-roll bars. The cable type anti-roll pubs are lasered for simple indentification. The cable connect to the hands aided by the proven friction free supersmooth pivotball system. Its super easy to get into and alter the anti-roll bars as required.

Motor mount
The engine is installed securely towards dense 3mm cnc machined 7075 T6 alu motor dish. The engine is installed towards the sliderplate, which can be then effortlessly slotted constantly in place.

Center drive holders
The slipper clutch device is hold set up by the motormount bracket and a H shaped lightened 7075 T6 aluminium owner topped by a carbon connector plate which also holds the cable guiders in place.
The slipper may also be replaced by a geardiff into the center. Its supereasy to gain access to the slipper or central geardiff.

Uprights
The lightened 7075 T6 aluminium uprights are same left and right and have 3 camberlink roles.

Wheelhex
Leading and rear wheel hex are 12mm industry standard size. The hexes are clamp type and anodised to endure. Flanged wheelnuts are included to help keep the wheels in place.

Body mounts
The strong composite human anatomy mounts can be based in case utilized. As alternative velcro could be added to along side it regarding the framework stiffeners/side pubs.

Body
Top quality clear polycarbonate is employed for the Spyder SRX4 buggybody . The well shaped human body has flat edges and roof for extra downforce and great managing. It actually leaves room enough for electronics and cooling discovers as needed. The human body closely follows the chassis form, so less debris can enter the automobile. The human body comes with a white precut masking sheet.

back wing and wing holder
The strong clear polycarbonate wing is mounted towards the nylon rear wing owner.

Rims
Durable Serpent created wheel are included in white color for front and backside (tires and inserts are not included). Rear wheels are just like SRX2 and SRX4, the leading ones have actually yet another offset and therefore are brand new. Compliant toward latest IFMAR rules.
