Serpent SER500503 Upgrade-set Aluminium Chassis SRX2 MH  [SER500503]

500503 Upgrade-set aluminium framework SRX2 MH3

The 2mm 7075 T6 chassis is hard anodized and all reduced holes are countersunk. The set includes the sidebars and center moulded parts to help keep the electronic devices positioned well and stiffen up the chassis. The framework is able to accept the 3 and 4 gear standard transmission plus the 3 and 4 gear laydown transmissions.

The batteryplate is a well machined carbon fibre one and increases the framework tightness too.

The front end has another aluminium kickup-plate which can be attached to the chassis with the durable moulded connector brace. This allows you to also decide to try a carbon fibre framework effortlessly whenever required and its own cheaper and more straightforward to change a kickup dish if required.

The set also incorporates the latest Srx2 human body that can easily be employed for the existing 4-gear vehicle, along with the laydown 3 and 4 transmissions.

The front and tail simply mount on top of the chassis update.

All components offer separate a spares also.

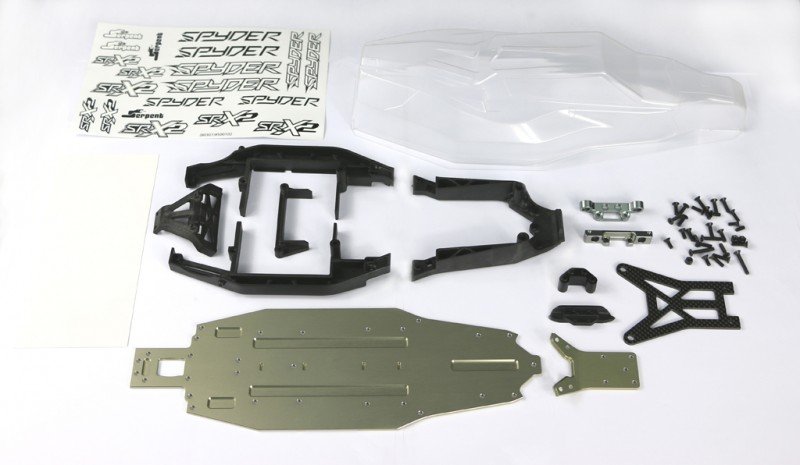

Contents regarding the set:

• S502 Spyder decal sheet b/wh 1
• S503-MM-Masking sheet 1
• S503-mm-battery-stap 1
• S503-mm-carriage-L 1
• S503-mm-carriage-R 1
• S503-mm-fr-kick-plate 1
• S503-mm-front-section 1
• S503-mm-inline-batt-holder 1
• S503-mm-rear-bulkhead-spacer 1
• S503-mm-rear-bumper 1
• S503-mm-rr-fr-toe-block 1
• S503-mm-rr-rr-toe-block 1
• S503-mm-trans-brace 1
• S503-mm-body 1
• S503-mm-chassis-alu-std 1
• cs-allen-m3x20 2
• cs-allen-m3x8 5
• cs-allen-m3x10 10
• cs-allen-m3x12 8
• CS Allen M3x16 1
• setscrew-m3x8 2
• nylock-nut-m3 3
