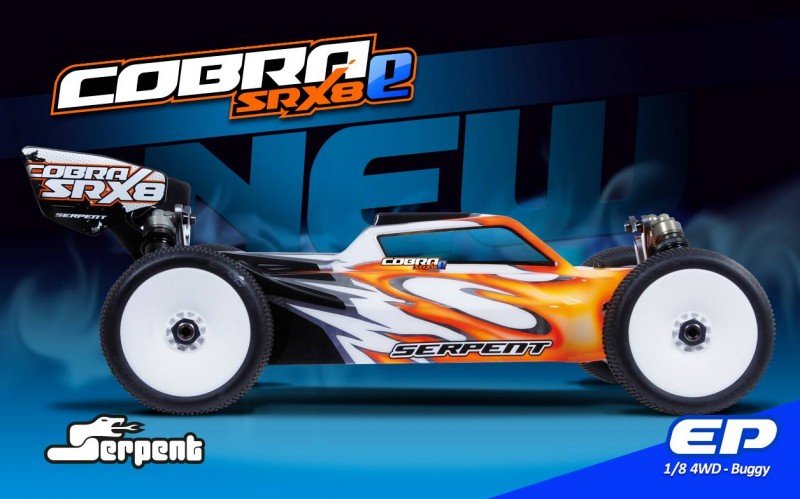

Cobra SRX8E buggy 1/8 EP high-end competition racing E-buggy in block-layout ( upgrade to saddle pack as choice). The car was created by Billy Easton in the united states and it is on the basis of the 2016 released Cobra SRX8 gas-powered buggy and shares your whole front and back suspension system system, shocks and geardiffs.
Requirements:
- Class: 1/8 scale 4wd buggy EP
- Type: kit-version, top end competition
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3.700 grms ( race prepared, is based on radio-gear and elctronics )
Features:
- rough coated 4mm framework 7075 T6 aluminium , flat design edges, with kick up
- Block kind design with long front centre shaft and quick back one
- quick access receiver package and speedo/servo owner
- Smart integrated design framework stiffeners
- Machined aluminium 15 dgr C-hubs, steeringblocks, uprights, shocktowers, one-screw motorholder and centre diff brackets, and suspension system mounts
- rough coated Big bore shocks 16mm ( emulsion/membrane ) with high end rushing springs and hardcoated aluminium shock standoffs
- Durable suspension hands with top and bottom mounted inserts ( for optional carbon inserts)
- Coated aluminium suspension holders with a varierty of feasible inserts
- curved spring metal pivot pins rotate in pivot inserts for minimal friction
- Angled steering system with adjustable Ackermann and incorporated effective servosaver
- 3 big amount durable gear differentials with foam compensator inserts
- quick access differential situations
- Springsteel transmission parts, cvd design drive shafts and rear centre dogbones
- rubber dustcovers on front and rear cvds
- Black coated 7075 T6 aluminium front side centre shaft
- Ballraced front and back anti-roll bars with Serpent pivotball linkage system regarding hands
- quality NSK ball bearings in primary areas
- Lightweight hardcoated aluminium track and steeringrods
- minimal profile medium downforce bodyshell and polycarbonate mudguards
- big high downforce moulded right type rear wing and strong monotype adjustable wingmount
Motorholder
- The light machined aluminium engine owner makes use of a slider which can be secured with only one screw, a system which Serpent used from very beginning in the 811-Be and 977-e already. The slider dish is a little bit thicker to install the motor whilst still being clear the mount whenever sliding. Both slider and mount come grey anodised. In case of utilising the seat layout, the same motor mount is used, simply the centre insert is turned around 180 levels. So a very smart, integrated and versatile design.
Centre diff holder
- Strong grey coated aluminium machined centre diff holder using one side plus the other part is incorporated in the motorholder featuring a fall, which are often turned around whenever employed for the saddle design.
Speedo/servo holder/front stiffener
- The combined speedo holder / servo holder is a durable product that may fit all best speedo’s and servo’s easily. The whole product with mounted gear can be easily removed for upkeep or cleansing.
Receiver package
- The composite receiver package with cover bolts onto the chassis and fits all modern receivers, even ones with build in antennas. The receiver field may also be mounted in the front centre part, which is typically used in the seat configuration just. A good carbon appears decal at the top cover.
Chassisplate
- The completely closed SRX8-E chassis is manufactured in 4mm 7075 T6 aluminium and has flat but chamfered sides, countersunk holes and a kick up. Hard coated for durability. The exact same framework is employed for the block and seat design. The chassis tightness arises from the smart design incorporated moulded centre stiffeners as well because the strong and durable sideguards. This package produces the suitable flex characteristics required.
Sideguards
- The remaining side-guard on the block layout features and easy to use rail and top cover to nicely guide and protect the longer receiver cable. The sideguards keep debris out and protects against side-impact.
Battery-tray
- Composite block design battery tray with self-adhesive base foam padding and side foams for battery pack protection. 3 pieces OneTouch straps are included to fasten the Lipo constantly in place.
Centre shaft
- The lightweight long centre shaft is manufactured in 7075 T6 aluminium, black coated and the quick backside one in Serpent springtime metal, dog bone style. Combined with really durable and lightened springtime steel driveshaft adaptors.
Chassis stiffeners
- The sturdy composite chassis stiffener in the back increases as geardiff-cover, and one more stiffener in the centre links the front and tail. For more flex that one may be removed, since additionally the battery-box already adds tightness for the reason that area. The leading stiffener is integrated in servo/speedo owner and links towards the top-bracket.
Steering system
- The twin axis steering system with built-in servo saver is installed under an angle on the cheap bump steer and an even more direct steering feel. The axels are made in lightweight aluminium.
- The bell crank accepts a bearing raced crossbar with zero slop. Its designed with all the optimal Ackermann to improve the automobiles driveability.
Sero saver
- It includes a helix in order to guarantee the proper working regarding the servo saver construction. The servo saver spring is protected by a dense foam address, to help keep debris out. The springtime pre-tension clamp nut can be locked set up to avoid switching loose. Ackermann changes are made effortlessly.
Differential cases
- The differential front side and back can be removed after taking out only 4 screws and removing the anti-roll pubs, super-easy!
- The strong moulded differential cases that have the differential and support the surprise towers.
Gear-Differentials
- The diff-gearcases are larger in volume allowing more diff oil. The diff now has cavities created especially for shut cell foam. This foam will compensate for expansion of this oil, that'll allow us to fill the diffs more complete, keeping the gears fully engulfed in oil. The cavity where in actuality the gears sleep has additionally been redesigned making sure that there is not low pressure areas outside of the gears. This will keep more oil regarding the gears even if spinning at high rpms. This in turn could keep the diff more constant at low and high speeds in addition to hot or cool.
- Gears 28 / 14 / 44: The hard metal 28T and 14T satellite gears have actually a more substantial general diameter, to make sure they're more in oil, making the diff more consistent, smoother and more powerful. The steel 44T band gear is lighter and has a great match with the new 28T gear.
Wheel axels / hex / boots
- The durable Serpent springtime steel wheel axles are captured CVD style and now have rubber boots to protect the device and bearings against dust and dust, therefore it will all keep going longer. The wheel hex is a durable difficult aluminium version which fits all popular tires very well. The pins in use are 3mm people to boost durability.
Steeringblocks aluminium
- The steering obstructs are made in 7075 T6 aluminium as they are anodised in black. These steering blocks were built to enable you to change the Ackermann during the steering spindle along with give us the perfect scrub offset in conjunction with the caster block. The bushings push to the blocks and reduce any undesired play.
C-hubs aluminium
- The 15 dgr c-hubs are produced in 7075 T6 aluminium and generally are anodised in black. These open design extremely durable units enable enough space to permit the optimum steering angle and invite space to mount the rubber dirt protectors on the CVD system. As optional you can expect 13, 17 and 19 dgr c-hubs too.
Uprights aluminium
- The uprights are constructed of 7075 T6 aluminium and are also universal people become usage left and right . The new uprights have the roll centre modification in them with tiny inserts. Set screws are acclimatized to tighten down on the hinge pin to eliminate any unwanted play. Into the underside 2 threaded holes are made to permit mounting the optional brass weights of 15 gr each for rough conditions.
Wishbones, composite
- Very durable and long moulded wishbones front and back. The composite is plumped for to possess enough flex as needed. The look has pouches inside top and bottom part of each arm to mount the conventional moulded insert plates, and/or optional carbon fibre ones. In that way you can select the right supply flex for each condition. Even various or no inserts front side or back and mixing moulded and carbon inserts is possible. The moulded inserts will stiffen the arms only a little, but keeps them cleaner. The carbon ones, or blended with moulded people will stiffen the arms a whole lot. Many choices in an attempt to use. The leading wishbones have 2 holes for shock-mounting, the trunk people also 3.
Mudguards
- The mudguards can be found in lightweight clear polycarbonate and that can be kept clear, be painted or skinned as preferred.
Suspension brackets
- The suspension brackets are CNC machined in 7075 T6 aluminium and grey anodised. They key in to the chassis for perfect fit. The brackets have precision machined pockets to make use of a full array of moulded inserts to alter the set-up.
Anti-roll bars
- The anti-roll club system is the greatest around. Precision made cable runs in ball raced adaptors on the front side and rear diff case-plates. Super free and stabile. The cable links to a ballpoint that will be fitted with a pivot ball toward wishbone. The works!
Shock Towers
- The front and rear surprise towers are durable difficult anodised 4.5mm 7075 T6 aluminium units, CNC machined. 4 positons each for shock-angle and 6 for roll centre.
Shocks
- Big bore surprise with hard coated dual-system caps and hard coated figures. Durable refined metal 3.5mm rods are employed with difficult anodised caps and threaded shock-bodies. A new seal pack is composed of machined bushings and brand new x-rings and is held in spot with a tiny inside clip. The shock pistons are machined delrin devices for most useful performance. The shock -tops in kit may be used membrane layer design or emulsion kind with seals.
Shock Springs
- Race shock springtime which are hand-selected and paired. The surprise springs are grinded flat for perfect operation.
Wing rear black
- the brand new flat type rear wing is an effective high downforce device with large side wings
Wingholder rear
- the trunk wing holder is a brilliant durable and light one piece moulded product. The owner has 4 different angle spacer to chose from .
Body
- the human body for the SRX8-E buggy is a medium downforce design with steep angle front windshield, wide angled edges and stepped rear side to steer the air onto the back part and back wing. The body renders a lot room to mount electronics and fans as required. Produced in quality, clear polycarbonate and is sold with a practical masking sheet and a different Serpent and Cobra SRX8 logo design decal sheet.
- Cab-forward design human anatomy with little fin on top for security. Sweet moving edges with small back upward fins for back downforce. Supreme quality polycarbonate. The human body has good trim lines for easy cutting. Exact same for the human anatomy holes. A masking sheet is included to assist with paintjob preps.
Body mounts
- This back human anatomy mount has a rubber pillow inside. Permits the human body mount to turn front side to rear in a visible impact or crash. This saves your body from breaking or tearing. Leading one is a fixed type and is simple available.
