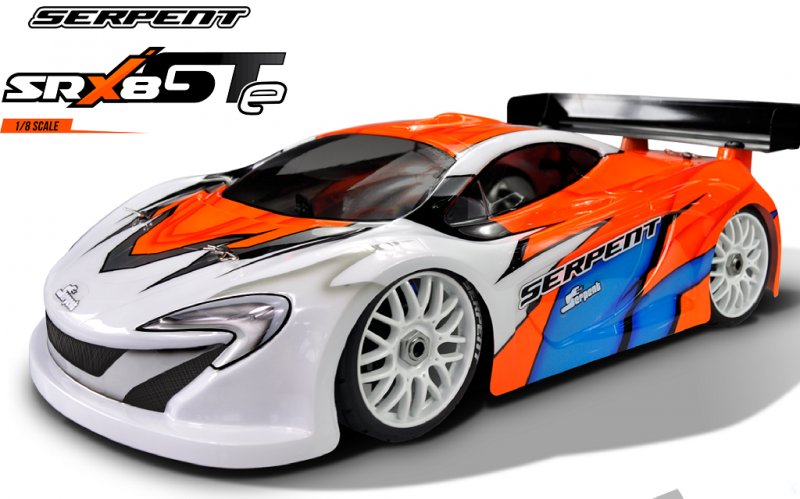

Serpent SER600058 Cobra SRX8 GTE 1/8 EP [SER600058]

Price:

USD$442.47

Brand:

Serpent

Model:

SER600058

Condition:

Brand New

Quantity:

Write a review

alt="Serpent SER600058 Cobra SRX8 GTE 1/8 EP" title="Serpent SER600058 Cobra SRX8 GTE 1/8 EP"

Description

About road program rushing, framework width and corner clearance is huge, this controls the lean and human body roll everywhere. Likewise, the roll and slim perspectives ultimately control the most cornering force. We kept the chassis the narrowest in nature that was feasible, while increasing the corner approval. However, we took it another action further. We pioneered the leading of the framework to adhere to the ROAR and IFMAR rules of a minimum kick-up angle, while increases approval, for curbs, uneven track and under hefty braking. This enables an excellent mounting area and simple to find human body posts because they is supposed to be facing fully straight. These great design principles are nicely nestled in a 7075-t6 aluminum alloy framework. This chassis will require the punishment and stay the test of the time.
As previously mentioned above there are many brand new adjustments, however some old ones as well. The 7075-T6 brackets additionally allow you to completely adjust leading kick-up 0,0.5,1,1.5 and 2 level increments.
The rear anti-squat is not any various as you can adjust that from 1,1.5,2,2.5,3 degrees, and also the Toe-in modification are made, 2,2.5,2.75,3,3.25,3.5 and 4 degrees using the inserts provided within the kit.
Not just can you adjust the toe, anti-squat and kick angle, then put in Roll Center height modifications aswell. We spare no expense about performance and also this SRX8-GTe isn't any exclusion. We have also added brand new RC shims to modify the roll center at 1 and 2 mm off the chassis plate.
This lets you fine tune your kick position, anti-squat and Roll center height further than ever before. We understand winning is an addiction also to be truthful, with these features, absolutely nothing will stay inside way.
A carry over from our Nitro on road history, the GT system ended up being upgraded with fully aluminum bulkheads and suspension brackets, additionally the SRX8-E Center diff mount, Motor Mount and engine mount fall. All these components are contained in the kit and made from 7075-T6.
They are black colored anodized with Silver shiny sides, how fashionable usually? The appearance are 2nd to no other brand name, regardless if others have actually jumped on the band wagon, you may be proud you purchased the original trend establishing design.
The next few items will definitely blow away your competitors also to further establish the Serpent brand as an innovator. The SRX8-GT will be the very first to come with not merely 4 adjustable diff positions, however it also include quick access differentials.
The 4 adjustment positions will allow the racer to fine to his model race automobile from lowest grip, all the way to the highest grip conditions. Both the front and back bulkheads share equivalent Diff inserts, and pinion holders, to attenuate extra parts and also to maximize your race enjoyable. The differentials both front and rear are eliminated and changed in just a few seconds. This provides you no reason not to freshen them up, fine tune or reconstruct your differential.
To deliver the energy to the ground the middle differential had been eliminated and replaced with a brilliant lightweight spool. Whether you might be on a top hold track and need maximum acceleration, or want to do some ill drifting in the pub, our company is certain you are going to love this upgrade.
The spool adapts the SRX8-E’s 44 tooth Module 1 spur gear, therefore it encourage all popular brands of pinion gears.
A recent addition to your SRX8-GTe is an appartment steering system. Since minimal kick-up perspectives are utilized there is no need to have the angled steering system seen on our off road vehicles. We took the successful steering system from our SRX8 and SRX8e and created a version designed for our GT vehicles. Not merely made it happen allow us to still use our existing Ackerman dishes, but it addittionally permitted us to lower the CG for the bulkheads and further enhance this vehicles power to corner with less human body roll. Maintaining many constant Ackermann curves really helps to make sure you are receiving what you anticipate without any shocks, when you approach a turn, travel through and leave. The end result is more efficient cornering with less tire wear.
In purchase to fully utilize our steering system and make sure this model does exactly as you command. The steering servo is mounted to a beautifully crafted 1 piece servo mount produced from 7075-t6 aluminum. That mount then is directly mounted to the chassis to create many solid foundation a servo could request. If accuracy is one thing you want in your RC model, search no further, this SRX8-GTe is for you.
At the leading and backside of the Asphalt slaying machine we took some pride in wanting to have as symmetrical flex feasible. In testing it was shown to have a confident influence on lap times including managing left and straight into a corner. This SRX8-GTe uses a high deck that's mounted right to the middle bulkhead along with the rear bulkheads. The framework makes use of the twist for the top deck mounted during the chassis to control the twist of chassis while nevertheless supplying super stiffness front side to right back. With Controllable twist, you will generate more cornering force, while nevertheless obtaining the front to back tightness; you can further boost the grip out of the corners. Don’t forget to break open the throttle out from the corners or push much harder than ever before within the corners. This child will require all you could will give it.
When Center of Gravity (CG) and fat distribution have huge results on how an RC car will perform, have you thought to optimize it. Within the GT course in which you competition on high hold asphalt together with automobiles capacity to part is dependent upon just how well it may make use of the tires. We merely state…” lower is better”, generally speaking the bigger the hold the larger the main advantage of low CG. This SRX8-GTe has the batteries mounted directly on the framework; it can’t improve than that. The batteries are secured in place by plastic mounts after which fixed into place with Velcro straps. Just remember, cars are made for performance, perhaps not luxury.
The SRX8-GT framework comes with holes pre drilled in to the chassis for optional loads. At Serpent we comprehend the need for having the ability to adjust the weight distribution of one's racing device. This GT would be no exclusion as you're able to include a 25-gram fat towards front side and/or rear. The loads would be sold individually however the framework is able to accept them.
The front and rear gear differentials are fully sealed, adjustable and lightweight. The differentials viscous nature could be adjusted to each track condition by changing the viscosity for the silicone oil always fill it.
The band gear is 44t, even though the pinion is 13t, providing you the perfect gearing for the GT course. The internal Ratio of this differential is 2:1 that is industry standard.
If you have got the best thing, let’s keep it going... That's precisely what we did aided by the ball bearing raced sway bars. We introduced this first the 1.8thoffroad then used that up into our GT type of automobiles.
Both leading and back suspension are certain to get equivalent therapy. The sway bar are firmly fastened therefore the left and right play is modified. You will be rest assured there isn't un-necessary friction plus roll club is completely procedure when driving your competition car.
besides the ball raced roll bars. The hands have a captured pivot-ball for the sway bar. This design lets you adjust the play associated with ball as well as always do not have binding in every direction if your suspension system operates. The synthetic nut, keeps the ball retained into place. You are able to replace the plastic limit with an aluminum optional version if you like a far more safe nut.
Carried over from our effective SRX8 could be the C-hub front side end and long back supply. A corner supply provides 2 size hands, quick and long. Besides the supply size, we now have gone another step further and refined the suspension system geometry for maximum cornering. Through countless hours of assessment, the brand new arm risers both on front side and back match this GT to a whole new amount of performance. If that isn't enough you can outfit the most effective and base for the hands with nylon or carbon supply stiffeners to control the flex characteristics.
The shock towers have actually all been optimized to provide you with the appropriate along travel for the many demanding Racing circuits around.
The front side and back suspension system hands, both component supply dishes that can be added, eliminated or exchanged for Carbon dietary fiber. This particular feature can be utilized for a bunch of reasons, which could include looks and or performance.
Depending on your hold level and track area, you are able to adjust the tightness of SRX8-GTe’s hands. Generally stiffer hands have actually an even more linear feel but can reduce hold. This happens by forcing the surprise to complete more work.
A softer arm can increase hold by reducing the shocks importance, but may also give the automobile a less direct feeling. Most of these modifications might have a huge effect on your lap time and outcomes.
The Back uprights come completely machined from 7075-T6 aluminum. We anodized them black colored and then dolled them up somewhat with some good machined silver sides. Aside from their stunning appearance, there is also Rubber CVD shoes to keep the grease contained. This minimizes wear and maximizes your cars life. Along with, the Roll center is adjusted in 4 jobs the brief arm and in addition 4 jobs in long supply. On a day whenever you are feeling bored stiff at track, provide several of those corrections a try, we think you will end up impressed with simply how much more speed you are able to find.
The front Caster obstructs were tested rigorously. We settled on 10 degrees, because it appeared to produce the greatest lap times. Besides the angle, they're fully machined from 7075-T6 aluminum and possess nice machined silver edges. There is also setscrews that hold all pins into place, ensuring you will finish every competition you start. They likewise have steering end screws you can use to restrict the steering throw on absolute ideal of angles.
The Front steering spindle, created from 7075-T6 is black colored anodized with silver machined edges. This part is a carryover part through the SRX8. In addition includes a rubber CVD boot to help keep the driveshaft greased, to attenuate wear.
The steering spindle also accepts 5 various Ackermann plates. 0,1,2,3,4. Generally speaking 0 is the easiest steering while 4 is more aggressive. It is possible to fine tune your GT’s steering to suit your driving needs. All plates can be easily identified by the notch markings into the part of the plate.
16mm threaded shocks with o ring seals. Carried over from our past GT, these foolproof shocks have not why don't we straight down. They have quite challenging 4mm surprise shafts and aluminum shock caps. The threaded figures make it super easy getting the ride height or tweak settings you may be seeking. The shock may be arranged in a variety of ways based on your setup. With “Pro “caps available as optional you can have Emulsion or bladder shocks all in a single cap.
The SRX8-GTe also is sold with fully adjustable front and rear human anatomy mounts, and platforms. The platforms are oversized to be sure your body had plenty to rest on and held in place with a sold metal pin.
The articles on their own are extra-long so that they can be cut to length depending on just what human body you prefer and positioned with the use of a threaded screw.
A recent addition towards the SRX8-GT is the back Diffuser. Testing revealed amazing outcomes with this particular part. More security, simple driving, better ventilation inside and out of human anatomy and faster lap times.
Finally, we arrive at the leading bumper. We provide an oversized large foam bumper in the kit. The bumper is securely mounted involving the upper and reduced bumper. This solid mounting enables you to take more direct effect and make sure your car will soon be correctly protected. The bumper could be trimmed to fit many if you don't all systems at this time in market
Being involved with the Gt category from nearly the start, Serpent has understood the direction and path necessary to produce a race winning car. The SRX8-GTe was a collaborated effort of numerous people specialized in the Serpent Brand. Performing tirelessly on brand new principles, suspension geometry, item installation and durability, our team could produce a complete monster of something. The SRX8-GTe has innovations at nearly all corner, while being one of the easiest cars we now have ever produced to the office on. At Serpent our company is exceedingly pleased with the SRX8-GTe and also have taken great pride into the design, all the way through. We didn’t only want to make a brand new car, we wished to make a fresh car that just changed the game. If you’re wanting sheer performance and quality in a single item, look no further the SRX8-GTe could be the one available, this product is actually rivaled by no-one.

Sincerely,
Billy Easton
Serpent designer
