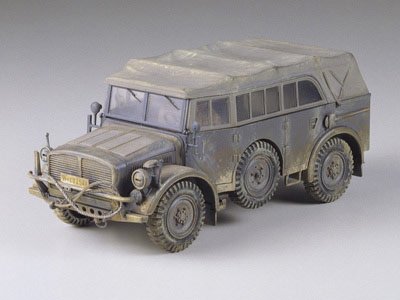

Schwere Einheits PKW A.U. Horch kinds 1a and 1b
Since the Reichswehr of 1920's was really restricted both in dimensions and scope by the regards to the Versailles Treaty, so when the economic situation did not, regardless, enable lavish paying for gear, all of the transport requirements regarding the army were met by making use of adapted commercial vehicles. Hottest of all vehicle types, since they were cheap and extremely mobile, were workers providers considering commercial vehicle framework fitted with an easy available human body associated with the kind known as the Kubelsitzer (literally "bucket-seater"). This kind of car, because the name suggests, consisted of a bit more compared to framework and normal front end, like in the normal motor vehicle, with sturdy metal supported seats guaranteed to the framework structures. Folding canvas screens took the place side, and there was a canvas cover, like in a sports vehicle, become erected in foul climate. Though cross-country performance ended up being limited, the type of the car was something of a trend setter and little utility workers carriers have actually since be typical gear in all armies.
To enhance on cross-country capability, these early "Kubelwagens" had large section tyres, strengthened springs, and reduced axle ratios than their commercial equivalents. Throughout the 1930's, this sort of automobile saw ever wider usage with the German army and ended up being one of its most characteristic and distinctive types. These "Kubelwagens" had been used as light weapon tractors, staff cars, radio vehicles, command automobiles, artillery survey automobiles, and alert line levels, as well as serving as personnel carriers for motorized units. Trials held in 1930 had established your vehicle framework produced by Daimler-Benz, Adler and Wanderer were the most effective, that makes predominated in service.
From 1933, whenever National Socialist took power and started overt re-armament associated with the German forces, there clearly was an expansion on an ever-increasing scale with mechanisation of greatly enlaged military among priority schemes. In those days the many automobiles on adapted commercial chassis had been categorised the following: Leichte Personnenkraftwagen (light passenger automobile) authorized makeup to 1500cc motor capability. Mittlerer Personenkraftwagen (moderate passenger automobile) approved make-up to 3,000cc motor ability. Schwerer Personenkraftwagen (hefty passenger vehicle) authorized constitute to 3,000cc engine ability.
The light passenger car kinds were each provided a designation based on their meant function. Thus Kfz (kraftfahrzeug) 1 ended up being the designation for the basic light workers provider; Kfz 2 designated a light signals vehicle (Kraftkahrzeug car). The medium cars were designated similaryly from Kfz 11 upwards based on function. Within the heavy class just the Kfz 21 hefty cross-country personnel carrier had been produced, as this was the very last type become authorized and ordered. It joined solution in 1937 and ended up being in line with the Auto-Union/Horch EFm chassis, remaining in manufacturing until 1940 (after Austria was annexed, the Steyr 1500A had been also built to this "heavy" requirement, nonetheless additionally designated Kfz 21). The Auto-Union/Horch EFm model had a V-8 80 hp engine and four wheel drive. Because of its length it had three rows of two seats, seating six guys in all. Spare tires were continued along side it panels flanking the initial and 2nd rows of seats. The standard commercial tourer car on which the military "kubelwagen" a senior officer's staff automobile. The Kfz 21 was described in German as the "Schwerer gelandegangiger personenkraftwagen (6-sitzer)" hefty cross-country passenger vehicle (6 seater). It had the standard sort of open Kubelsitzer human body and a folding canvas top. Overall size had been 15 ft 11 inches.
The 'Einheits' Programme
Among the dilemmas presented by the first policy of buying commercially based vehicles had been the vast variety of makes taken about the inventory, and the associated maintenance and spares supply issue. Various makes of engine, transmission, chassis, an such like meant your stock of spares required was enormous. Therefore, when the big armament programme got under method, it had been decided in 1934 to displace the number of commercially based chassis with a new selection of standardised framework types. It had been intended that the three classes of industry automobile, light, medium, and hefty, could have numerous components in common, including suspension units, and that the light and hefty vehicles might have steerable tires in front and right back, and might have four wheel drive. This became too committed a great, even right away, for the price and time element associated with developing such an advanced variety of automobiles was immense. Only the very early cars had rear wheel steering, and also this requirement had been fallen in 1940 to simplify production. Auto-Union/Horch were the primary builders of both the medium and hefty passenger cars inside Einheits programme (einheitsfahrgestell: standard motor framework). The Auto Union/Horch Chassis we for hefty passenger vehicles (schwerer personenkraftwagen)was produced in 1935. Included in the general plan it absolutely was meant to use this chassis with a back mounted engine for armoured cars along with a front mounted engine for passenger automobiles. The original chassis with steerable tires front side and straight back was designated we a, and subsequent production chassis (from 1939-40) had been designated I b. The framework showcased four wheel drive. There is a torque converter with a restricted differential action to stop winding up in transmission. The front side axle was driven straight through the primary gearbox, including a third differential. There were five forward gear ratios, one reverse, and an auxiliary low gear for cross country work. There was a self locking differential in the back axle with a normal differential at the front, this arrangement ensuring that all wheels received driving energy no real matter what the type of this terrain. There was fully independent suspension, each wheel having two radius arms sprung by two coil springs involving the energy radius arm and a bracket on the chassis frmae. Shock absorbers had been integrated to the suspension to avoid damage toward steering hands. The four wheel steering facilty became unsatisfactory ultimately. The trunk wheel steering had been optional, controlled by your dog clutch operated by a lever through the driving position. Utilizing four wheel steering and driving fast, the car had been found to slew sideways; therefore it was not popular and after some experience four wheel steering ended up being forbidden completely at speeds over 13 miles per hour. This limitation made the entire facility of these small value that it absolutely was dropeed completely from the 1940 onward manufacturing chassis.
Field automobile manufacturing with tis chassis began late in 1938. Externally all Auto-Union/Horch heavy cars looked alike regardless of real chassis model, nevertheless. By 1940 the framework had been simplified considerably, while the Berlin Ford factory was additionally by then involved in manufacturing. Ford built automobiles had a Ford 3.6 litre V-8 78 hp motor as opposed to the Horch product. The belated 1940 models lacked recesses in the body and chassis mounted support arms for extra tires. Manufacturing ceased in 1941 in preference of a brand new scheme under the Schell-Programm which desired to rationalise vehicle production entirely. Within scheme the hefty automobile provided the framework regarding the 1.5 ton light truck. Auto-Union/Horch hefty cars stayed in solution throughout World War 2, however, and had been being among the most common of German cars on every front. The Auto-Union/Horch on the hefty passenger automobile chassis had been used in several functions, and even though the layout of open human anatomy implemented the old Kubelsitzer idea, all but the very earliest had the added refinement of metal part doorways in the place of canvas part displays. These were among the list of types considering this chassis: Fernsprechkraftwagen (Kfz 23) Telephone Truck. Leichter Scheinwerferkraftwagen I (Kfz 83) Light Searchlight Truck We Leichter Scheinwerferkraftwagen II (Kfz 83) Light Searchlight Truck II Protzkraftwagen (Kfz 59: Limber (or towing) car for Light Guns. Mannschaftskraftwagen (Kfz 81): Light AA Vehicle (some with 2 cm Flak Gun mounted) all above had the available human body but differed in function and, in certain cased, interior stowage and gear. Furthermore, these were constructed on the framework: Sanitaetskraftwagen (Kfz 31): Ambulance Verstarkerfraftwagen (Kfz 24): repair Truck Both of these had a closed van type human anatomy.
