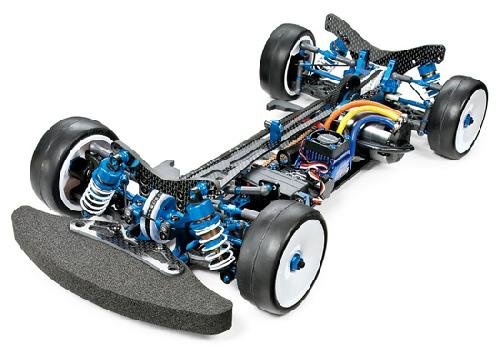

Tamiya 42205 Tamiya 1/10 RC TRF417X Chassis Kit  [42205]

This is actually the latest spec TRF 417 device. The key improvements feature delicate revisions. A newly-designed lower deck offers enhanced framework freedom for better low-speed traction. The prior one-piece engine mount was replaced with a three-piece kind allowing further adjustment of chassis' freedom by linking them together. The depth of front and back damper stays have actually been risen up to 3.5mm and other new developments include a new upper deck, metal battery pack holders which serve as counterweights, and low-height kingpins. Front direct coupling and back gear diff device (Item 42197 TRF417 Gear Differential Unit II) are included in this latest spec variation.

Specs and Features

• Advanced TRF (Tamiya Racing Factory) competition level touring car framework
• 4WD twin belt drive system
• 4-wheel separate suspension system with carbon strengthened plastic components
• Universal drive shafts
• Aluminum 5mm hex hubs for wheel mounting (industry standard size, fits all 24mm Tamiya wheels and most aftermarket brands)
• Camber, castor, toe-IN/OUT, roll-center, anti-dive/anti squat, shock angle, wheel-base, track width are all completely adjustable
• Battery compartment accommodates LiPo and lifetime difficult case battery pack packs
• Carbon fiber top and lower decks (Newly created lower deck)
• Machined aluminum (TRF blue anodized) suspension blocks, bulk-heads and motor dish parts
• Complete ball bearings (Teflon Sealed)
• Aluminum threaded turnbuckles (TRF blue anodized)
• TRF417 Gear Differential Product II x 1pc.
• Front direct spool
• Fits 190mm touring car and sports car human body sets (note: Some Tamiya TA-05 IFS low nose human body sets intended for the TA-05 V2 or TA-06 may be too low to fit the TRF417's front end because of its operate shock design)
• TRF aluminum threaded dampers with Teflon pistons and cartridge elements
• Includes front and rear sway bar set
• New piece: Three-piece motor mount enables adjustment of chassis rigidity and brand new roles of engine attachment holes enable a wider selection of gear ratios to raised suit your track or racing class.
• Damper remains have damper attachment slots to permit fine environment modification. Increased thickness of 3.5mm offers improved damper accessory rigidity for greater damper effectiveness.
• The upper and reduced deck happen reshaped to obtain improved freedom. These are interchangeable aided by the initial TRF417 top and reduced decks to adjust chassis roll traits.
• Kit includes COMPLIMENTARY BONUS PARTS (Touring vehicle Damper Spring x 4pcs.) Later 2011 manufacturing only.
