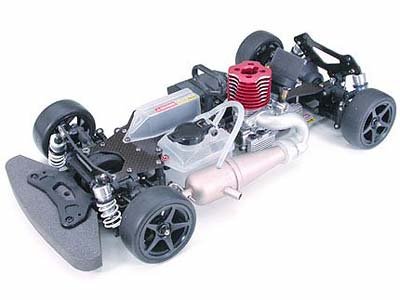

Tamiya 44032 - 1/10 TG10R Chassis Kit  [44032]

Towards TG10R

The glow-engine (TG10) race scene has become faster and hotter than previously with all the brand new battle form of the radiance engine framework, the TG10R. Made for race, this framework employs a 2.5mm thick, hardened carbon double-deck frame. The chassis additionally packs 4-wheel dual wishbone suspension and high-efficiency TRF dampers and stabilizers. 2.5mm dense carbon damper stay are fine-tuned and is extremely responsive. This 198mm wide framework assumes high-speed cornering with remarkable stability. The TG10R chassis employs similar 6mm diameter axles used in the 1/8 Scale R/C Glow Engine automobile TGR framework and brings with it the same power. Responding to expert driver need, this framework comes fully loaded with specs essential for racing regarding the edge!

Crucial Rushing Features

• Comprehensive ball bearings
• Carbon-built top deck
• Front/Rear carbon damper stay 2-speed objective
• High-grade brake disk TRF
• Damper Front universal shaft
• Front/Rear stabilizers Medium-narrow tire, type A

Basic Specifications

• General size: 376mm
• General width: 198mm
• Total height: 100mm (not including body mounts)
• Clearance: approx. 7mm (adjustable)
• Weight completely equipped: 1,580g (unfueled with 4 R6/AAUM3 batteries, Novarossi engine and TM2 Muffler)
• Wheelbase: 260mm
• Tread F/R: both 174mm
• Chassis product: 2.5mm Duralumin +2.0mm Carbon Fiber
• Chassis shape: dual deck framework
• Steering tie pole: 3 part
• Suspension system: front and rear dual wishbone
• Caster angle-F/R: 8deg/0deg
• Camber angle-F/R: adjustable
• Toe angle-F/R: adjustable/1.5deg
• Damper: F/R TA04R super low-friction
• Transmission type: Shaft drive full-time 4WD
• Gear ratio: 8.1:1-6.4:1 (7.5:1-5.6:1)
• Diff. gear system: F/R 3-bevel diff
• Gas tank capability: 75cc
• Brake: disk type
• Tire width: F/R both 24mm
• Tire diameter: F/R both 64mm
• Tread pattern: F/R slicks
