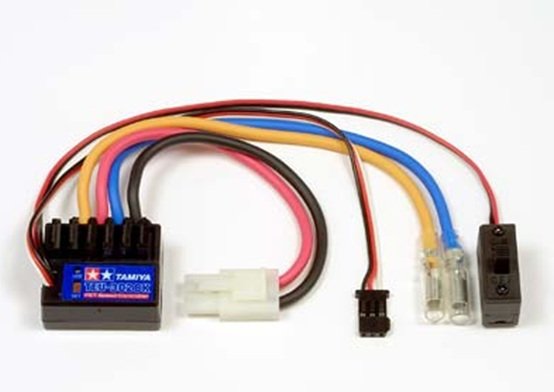

Tamiya 45028 - ESC TEU-302BK Speed Controller TEU-302BK  [45028]

FET Speed Controller TEU-302BK

A concise forward/reverse running electronic rate controller (ESC) featuring a high regularity wave drive system. Three forms of current flow adjuster, adjustment of optimum forward and reverse throttle trigger settings, and reverse termination is controlled via transmitter and ESC procedure.

Tamiya R/C System No.28 (ITEM 45028)

Appropriate for down seriously to 23 change stock engines. Transmitters from other manufacturers may also

Here is the Tamiya Forward and Reverse Electronic Speed Control.

QUALITIES:

• Compatible with stock engines down seriously to 23 turns
• Present adjustment permits motorist available three modification rates including mild setting for slippery conditions and fast setting for high hold songs
• Reverse could be changed into braking function
• Three safety functions:
• Paid off voltage reduction security circuit stops loss of control
• Temperature security function
• Overcurrent protection function
• Receiver connector appropriate for Tamiya, Futaba KO, JR, and Airtronics/Sanwa (azure)

INCLUDES:

One Tamiya Forward and Reverse Electronic Speed Control with Kyosho design battery pack connector, pre-installed engine leads, universal receiver connector, and instruction manual

REQUIRES: Installing in model and connecting to motor and receiver

SPECS:

• Length: 1.3" (33.5mm)
• Width: 1.1" (27.2mm)
• Height: 0.6" (14.3mm)
• Weight: 1.7oz (48g) with cables
• Weight 1.5oz (43g) human body just
• Control System: tall regularity revolution drive
• Max Continuous active: (FET spec) ahead 120A, Reverse 60A
• Power Supply: 7.2V - 8.4V (6-7 cells)
• Appropriate engine: R/C vehicle motor over 23 turns
• Driving Frequency: 500Hz, 1kHz, 2kHz (with three actions)
• Receiver Output Voltage: 6V (input 7.2V)
• Receiver Output Present: 1A
