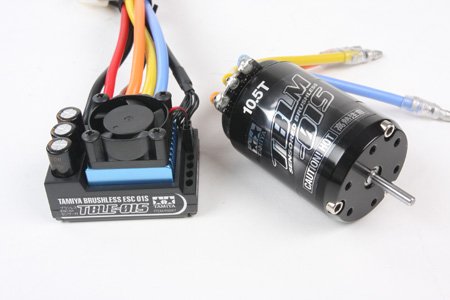

Tamiya 45048 - RC Tamiya Brushless Motor 01 - 10.5T/Brushless ESC01 Sensored  [45048]

Tamiya 45048 - RC Tamiya Brushless Motor 01 - 10.5T/Brushless ESC01 Sensored
Price:
USD$179.12
Brand:
Tamiya
Model:
45048
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - Combo Set category
Write a review
Sensored brushless motors offer smooth procedure at both low and high rates. The sensor's positional feedback is with the ESC's RPM information to provide a top level of control. Brushless design makes for long motor life and reduced maintenance hassle.

*Not suitable for trucks, CR-01 and twin-motor chassis machines.

*To enhance performance together with life associated with engine, regularly lubricate motor bearings with Item 53508 or 53782.

12T Specification

KV: 3050KV (KV denotes RPM per volt), body weight: 200g, Input Voltage: 6.6-7.2V.

In regards to the Sensored Brushless ESC

This ESC is especially designed for use aided by the TBLM-01S series of Tamiya Brushless Motors (Sensored). As well as 5 preset pages,settings such as brake, basic braking system, and dead musical organization are adjusted separately. Additionally features 3 protection systems including overheating, overloading, and low voltage.

ESC Specifications

  • Suitable for Tamiya, KO, Futaba, JR, and SANWA receivers.
  • Features Forward, Reverse, and Brake functions. *Reverse function could be terminated.
  • ESC also features Overheat, Overload, and minimal Voltage protection systems-Compatible with Tamiya TBLM-01S Series engines. *Only for use with sensored brushless motors.
  • Max. Continuous Current: 100A, Receiver Voltage: 5V, Receiver Current: 3A, Drive Frequency: 16KHz.
  • Dimensions: 47x35.5x31mm, Weight: 90g (Including cables).
