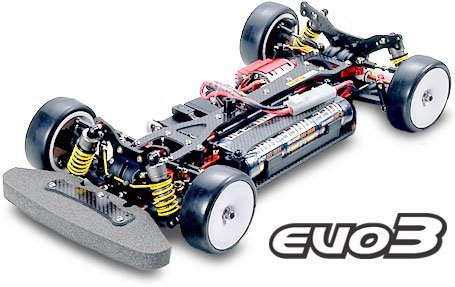

Tamiya 49283 - 1/10 RC TB Evo.3 Surikarn Ltd. - Limited Edition - TB Evolution III Chassis  [49283]

Tamiya is proud to present the TB Evolution III that permitted Surikarn Chaidejsuriya to simply take the success both in the Modified Class together with Stock Class during the Thailand Global Touring vehicle Championship that occurred final February. This limited edition kit was released to celebrate these great victories and offer you with champ class performance. TB Evolution III Surikarn Limited framework employs many particularly created parts and choice components. A pure racer only for you! As soon as the highest degree of R/C framework evolution gets paired with the choice and specially designed parts utilized by the greatest R/C racer on the planet, the end result is nothing lower than excellence. Additionally features a 3mm dense reduced deck (Standard Evo. III features 2.5mm thick lower deck) to create a diminished center of gravity (reduced balance). Red anodized components boost the machine's "hot" appears.

Introducing Surikarn Style

• Red anodized aluminum parts
• Titan hex screws and titan turnbuckle shafts
• Rubber sealed ball bearings
• 3 mm thick reduced deck
• Reinforced diff. joint with rear lightweight universal shafts
• SOREX tires (36R)
• Newly designed aluminum upper arm mount
• Newly created front/rear special damper stay
• Newly designed carbon plate for one-way unit
• Evo III special stickers
• A brand new packaging

Basic Specifications

• Total length: 365mm
• Total width: 190mm
• Clearance: 5mm, body weight Fully-Equipped: 1,440g (Measurement includes TP-S3003 servo, CPR Unit and RC2400SP Battery with RS-540 motor)
• Wheelbase: 259mm
• Tread F/R: 163mm
• Chassis Material: Carbon
• Chassis Shape: Double-Deck Frame
• Steering Tie Rod: 3 part
• Suspension system: Front and Back Double Wishbone
• Caster Angle-F/R: 4deg/0deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2 to 3.5deg
• Skid angle-F/R: both 0deg (adjustable)
• Damper: F/R TRF Super Low Friction Dampers
• Drive train: Shaft-Driven 4WD
• Gear Ratio: 7.34:1, 6.88:1 (Standard in kit)
• Diff. gear system: F/R One-Way/Ball-Diff
• Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks.

Necessary Things (perhaps not included)

• Body
• RS-540 Type Engine
• R/C device: Adspec GT-I or 2-channel R/C system with electronic speed controler
• Battery: Tamiya 7.2V Racing Pack or comparable
