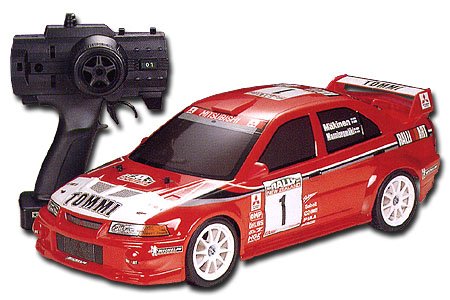

Tamiya 57706 - 1/10 XB Mitsubishi Lancer Evolution VI WR  [57706]

Tamiya 57706 - 1/10 XB Mitsubishi Lancer Evolution VI WR
Price:
USD$172.53
Brand:
Tamiya
Model:
57706
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review

The Lancer Evolution VI is created on a precisely designed TL-01 framework that includes shaft-driven full-time 4WD system equipped with quality differential gears in front/rear sealed gearboxes. This system is fitted on a lightweight yet durable monocoque frame. Responsive double wishbone suspension system system with four friction dampers ensures a smooth ride even over rough areas.

Basic Specifications

  • Chassis Type: TL-01
  • Scale: 1/10
  • Length: 17.40 ins (442mm)
  • Width: 7.24 inches (184mm)
  • Wheelbase: 10.12 ins (257mm)
  • Front Tread: 6.18 ins (257mm)
  • Rear Tread: 6.18 inches (257mm)
  • body weight: 2.31 lbs. (1048g)
  • Chassis: ABS Monocoque
  • Suspension: 4 Wheel Independent
  • Damper Type: Plastic coil over friction
  • Drive Train: 4WD shaft drive
  • Gear Ratio: 7:96:1
  • Differential Gear System F/R: 3-Bevel Diff
  • Differential Type: Bevel Gear
  • Engine: Electrical 540
  • Transmission Type: Shaft drive mid-ship full-time 4WD
  • Steering Tie Rod: 2 part
  • Speed Controller: 3 Step F&R Mechanical
  • Wheels & Tires: Chrome 5 spoke/radial
  • Tire Diameter F/R: both 64mm
  • Tire Width F/R: both 27mm
  • Body Type: Polycarbonate Cut & Printed
  • Radio: 2-Channel Pistol (included)
  • Power supply: 7.2V battery (maybe not included)

Hop Up Options

  • 53467 TL-01 & FF02 Long suspension system supply set
  • 53440 On-road tuned hard spring set / 53418 -
  • TL-01 Universal shaft (2pc.)
  • 53347 3x3mm springtime set screws (10pc.)
  • 53346 TL-01/M03 fast launch battery owner
  • 53345 TL-01/M03 toe-in backside upright
  • 53342 TL-01 speed-tuned gear set
  • 53333 Touring car tuned spring set (short)
  • 53324 TL-01 stabilizer set
  • 53323 TL-01 carbon propeller shaft
  • 53322 TL-01 hollow carbon gear shaft
  • 53303 TL-01 adjustable upper arm set
  • 53301 TL-01 stainless suspension system shaft set
  • 53300 TL-01 turnbuckle tie-rod set
  • 53295 Tire inner foam
  • 53292 TL-01 ball bearing set
  • 53280 TA03 super low friction damper set (4pc.)
  • 53267 TA03 ball differential
  • 53163 On-road tuned springtime set
  • 53162 4mm anodized aluminum flanged lock nuts (black)
  • 53161 4mm anodized aluminum flanged lock nuts (gold)
  • 53160 4mm anodized aluminum flanged lock nuts (red)
  • 53159 4mm anodized aluminum flanged lock nuts (blue)
  • 53144 Touring & rally car bushing & ball connector set
  • 53141 4WD touring & rally car lightweight master pins
  • 53095 3x10mm titanium tapping screw (10pc.)
  • 53056 Pin type wheel adapter / 50357 - 22T, 23T AV pinion gear set (only the 23T gear inside set is compatible with all the TL-01)
  • 50356 20T, 21T AV pinion gear set (just the 21T gear works with all the TL-01)
