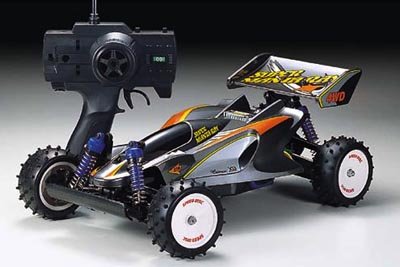

Tamiya presents this pre-assembled 1/10 Scale handheld remote control Buggy. The Super Manta Ray's reliable 4WD-shaft drive, 4-wheel double wishbone suspension system, and spiked tires alllow for a machine effective at dealing with the hardest of off road courses. The handy remote control system comes pre-installed and pre-adjusted with a wheel and trigger-type transmitter. Batteries and charger available separately. (Batteries and charger may be a part of some nations. Please contact your local Tamiya representative for details.) All you have to complete is open the container and grab the transmitter- now you are ready for many severe R/C action!
The polycarbonate body comes pre-paintedThe shock-resistant, lightweight polycarbonate human anatomy comes pre-painted in weapon metallic with stickers already attached. Lettering on white meal wheels can also be pre-printed.
Monocoque Type New DF-01 ChassisNewly designed ABS monocoque frame is lightweight and shock-resistant. The Super Manta Ray employs a laterally installed motor that effectively transmits energy via its 4WD mid-ship shaft drive.
Car Body Design Maximizes Resistance to DebrisA polycarbonate upper-cover affixed towards monocoque kind frame stops small stones from getting lodged in the internal parts. Removal of assessment cover enables simple upkeep of crystal and speed controller.
Included PartsWheel and trigger-type Adspec GP transmitter especially made for radio control procedure. Batteries and charger available separately. (Batteries and charger are incorporated into some countries. Please contact your local Tamiya agent for details.) Transmitter requires eight R6/AA/UM3 batteries.
Optional components readily available for Increased EfficiencyThe Expert Built Super Manta Ray is built in the same fashion as an R/C construction kit. Parts may be disassembled and re-assembled. The kit is equipped with a regular 3-step speed controller that may be replaced with the Tamiya CPR product. High-power engine, ball bearings, and wheel dampers can be included with enhance performance. As much as 6 separate devices can run at the same time so long as various transmitter crystals are utilized.
fundamental Specifications
- Chassis Type: DF-01
- Scale: 1/10
- Length: 15.35 inches (390mm)
- Width: 9.84 inches (250mm)
- Wheelbase: 10.63 inches (270mm)
- Front Tread: 8.15 ins (207mm)
- Rear Tread: 8.15 ins (207mm)
- body weight: 3.57 pounds. (1620g)
- Chassis: Monocoque
- Suspension: 4 wheel separate
- Damper Type: vinyl coil over friction
- Drive Train: 4WD shaft drive
- Gear Ratio: 9.49:1
- Differential Type: Bevel Gear
- motor: Electric 540
- Speed Controller: 3 action F&R Mechanical
- Wheels & Tires: Dish/Pin Spike
- physique: Polycarbonate Cut & Printed
- Diff. gear system F/R: 3-Bevel Diff
- Tire width F/R: both 40mm
- Tire diameter F/R: both 84mm
- Tread pattern F/R: Pin Spike
- Power source: 7.2V battery pack (not included)
