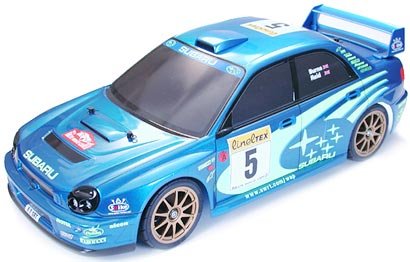

Tamiya 57713 - 1/10 XB Subaru Impreza WRC 2001  [57713]

Tamiya 57713 - 1/10 XB Subaru Impreza WRC 2001
Price:
USD$172.53
Brand:
Tamiya
Model:
57713
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review

The Subaru Impreza WRC 2001 is made on a correctly created TL-01 framework that includes shaft-driven full-time 4WD system designed with quality differential gears in front/rear sealed gearboxes. This system is fitted on a lightweight yet durable monocoque framework. Responsive double wishbone suspension system system with four friction dampers guarantees a smooth trip even over rough surfaces.

specs

  • Chassis Type: TL-01
  • Scale: 1/10
  • Length: 17.36 ins (441mm)
  • Width: 7.28 ins (185mm)
  • Wheelbase: 10.12 ins (257mm)
  • Front Tread: 6.18 ins (157mm)
  • back Tread: 6.18 ins (157mm)
  • Weight: 2.29 pounds. (1038g)
  • Chassis: ABS Monocoque
  • Suspension: 4 Wheel Independent
  • Damper Type: synthetic coil over friction
  • Drive Train: 4WD shaft drive
  • Gear Ratio: 7:96:1
  • Differential Gear System F/R: 3-Bevel Diff
  • Differential kind: Bevel Gear
  • Engine: Electrical 540
  • Transmission Type: Shaft drive mid-ship full-time 4WD
  • Steering Tie Rod: 2 part
  • Speed Controller: 3 action F&R Mechanical
  • Wheels & Tires: Spoke/radial
  • Tire Diameter F/R: both 64mm
  • Tire Width F/R: both 27mm
  • physique: Polycarbonate Cut & Printed
  • Radio: 2-Channel Pistol (included)
  • energy Source: 7.2V battery pack (perhaps not included)

free Parts & Hop Up Options

  • 53467 TL-01 & FF02 Long suspension arm set
  • 53440 On-road tuned hard springtime set
  • 53418 TL-01 Universal shaft (2pc.)
  • 53347 3x3mm spring set screws (10pc.)
  • 53346 TL-01/M03 quick release battery owner
  • 53345 TL-01/M03 toe-in back upright
  • 53342 TL-01 speed-tuned gear set
  • 53333 Touring car tuned spring set (brief)
  • 53324 TL-01 stabilizer set
  • 53323 TL-01 carbon propeller shaft
  • 53322 TL-01 hollow carbon gear shaft
  • 53303 TL-01 adjustable upper supply set
  • 53301 TL-01 stainless steel suspension shaft set
  • 53300 TL-01 turnbuckle tie-rod set
  • 53295 Tire inner foam
  • 53292 TL-01 ball bearing set
  • 53280 TA03 super low friction damper set (4pc.)
  • 53267 TA03 ball differential
  • 53163 On-road tuned spring set
  • 53162 4mm anodized aluminum flanged lock nuts (black)
  • 53161 4mm anodized aluminum flanged lock nuts (silver)
  • 53160 4mm anodized aluminum flanged lock nuts (red)
  • 53159 4mm anodized aluminum flanged lock peanuts (azure)
  • 53144 Touring & rally car bushing & ball connector set
  • 53141 4WD touring & rally car lightweight master pins
  • 53095 3x10mm titanium tapping screw (10pc.)
  • 53056 Pin kind wheel adapter
  • 50357 22T, 23T AV pinion gear set (only the 23T gear in this set works with with all the TL-01)
  • 50356 20T, 21T AV pinion gear set (just the 21T gear is compatible with all the TL-01)
