Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)  [58278]

Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)
Price:
USD$298.58
Brand:
Tamiya
Model:
58278
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"

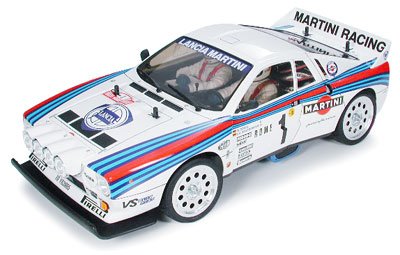

The Lancia 037 Rally was created relative to 1983 World Rally Championship, Group B laws. Adjusted from the Lancia Beta Monte Carlo, the glass-fiber reinforced resin body ended up being designed by Sergio Pininfarina and encases a 2 liter 4 cylinder super-charged engine that boasts over 300 hp. The car's dependability and top condition assisted make it the title of providers' Champion.

Realistic, Detail By Detail Reproduction of Automobile Body
A reproduction accurate to your littlest parts with a resin strengthened human anatomy, the model features the Lancia's trademark 4-headlight unit. The model even includes motorist and co-driver numbers, along with stickers found in the Monte Carlo rally.

High-Efficiency Belt Transmission 4WD
A hardened bathtub kind FRP primary frame serves as the backbone the high-efficiency 4WD gear transmission. Also tightly fastened gearboxes inside front and rear regarding the car contain a total of 9 ball bearings, minimizing drive loss and maximizing effectiveness.

Independent 4-wheel Suspension Built With Wheel Dampers
4-wheel independent double wishbone suspension system for exceptional road keeping loaded with high-shock taking in wheel dampers. Authentic semi-slick tires to give you psyched up for intense rally car action.

Fundamental Specifications

  • Chassis Type: TA03
  • Scale: 1/10
  • Overall Length: 416mm
  • Overall Width: 186mm
  • Overall Height: 130mm
  • Minimal Clearance: 8mm
  • Body weight Fully Equipped: 1,700g (including battery)
  • Wheelbase: 237mm
  • Tread (front side and back): 157mm
  • Chassis Material: ABS Resin Type
  • Chassis Type: Bath-tub chassis
  • Steering Tie Rods: divided in three sections
  • Suspension (front side and rear): dual wishbone
  • Caster Angle (f/r): 10 deg./3 deg.
  • Camber Angle (f/r): 1.5 deg.
  • Toe Angle (f/r): 0 deg. (variable)/1.5 deg.
  • Dampers (f/r): CVA Damper super mini/CVA Damper mini II
  • Drive Train: gear driven mid-ship full-time
  • 4WD Gear Ratio: 8.51:1(OP gear use 4.76-9.93)
  • Diff Gear System (f/r): three bevel diff
  • Speed Controller: amplifier
  • Tire Width (f/r): 27mm
  • Tire Diameter (f/r): 65mm
  • Tire Pattern (f/r): semi-slick racing
  • Type 540 engine
ELECTRICAL KITS REQUIRE: (unless reported differently above)
  • Broadcast: 2-Channel with servo(s)
  • Battery: 6-cell flat with standard Tamiya connector
  • Charger: AC/DC timed or top for 6-cell battery
  • Paint: PS for Polycarbonate/TS for ABS
  • Misc. Items: Building and track gear
