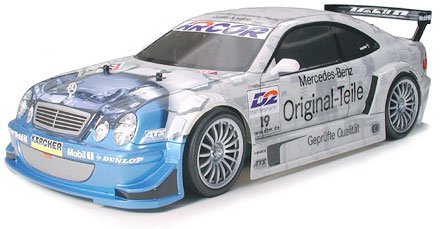

Tamiya 58279 - 1/10 TA04 Mercedes-Benz CLK DTM Original Teile  [58279]

Tamiya presents the high-performance, recreations form of the most popular TA04 chassis used by R/C enthusiasts of ages and levels of experience. Built to battle, this chassis includes the full ball-bearing set to attenuate drive loss and employs adjustable change buckle shafts. The high effectiveness 2 gear 4WD system, the 4-wheel double wishbone suspension system, as well as the hardened resin double deck framework for the TA04 have been kept unchanged. Simply find the human anatomy and motor of one's choice and you'll took pick in to the realm of real R/C racing!

Complete Ball-BearingsThe chassis is equipped with ball bearings not merely in the drive shaft, but in the steering hands and. This permits for smoother driving and increased durability. Maintenance is created easier aswell.

Equipped with Turn-Buckle ShaftsThe front side and back top arms, steering tie rods, and steering linkage all employ turn buckle shafts. Along the shafts may be modified without removal for simple steering shaft adjustment.

2 Belt 4WDThe TA04-S framework employs a top efficiency 2 gear drive 4WD system with an 83T spur gear. *Motor perhaps not included.

Specifications

• General Length: 365mm
• Overall Width: 184mm
• Clearance: 8mm
• Weight Fully Equipped: 1,517g (dimension includes TP-S3003 servo, CPR Unit and RC2400SP Battery.)
• Wheelbase: 257mm
• Tread F/R: both 162mm
• Chassis Material: ABS/Polycarbonate
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 part
• Suspension system: Front and Rear Double Wishbone
• Caster Angle-F/R: 10deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Damper: F/R CVAMiniII
• Transmission Type: 2 Belt Mid-ship Full-time 4WD
• Gear Ratio: 7.08:1 (kit standard)
• Diff. gear system: F/R 3-Bevel Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 26mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks
