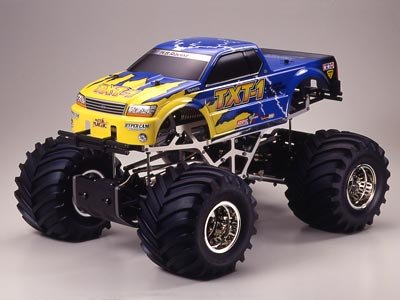

Tamiya 58280 - 1/8 TXT-1 TAMIYA XTREME TRUCK  [58280]

The TXT-1 is made like the full size monster vehicle with an aluminum ladder frame and multi-link suspension. Solid axles with a cantilever system enables massive suspension articulation. This kit includes equipment another servo saver for four wheel steering. The servo (or servos) are found next to the axle for direct steering. Kit requires a 2 or 3 channel radio and may operate on a 7.2V or 8.4V battery pack.

Heavy-duty Parts for Rugged Driving Aluminum part structures and suspension hands add a customized feel and ensure high durability. The TXT-1 features a 2-level gearbox for efficient energy transmission.

High End Wheels The 4-link rigid wheels function push rods and securing hands in addition to dampers that employ cantilever suspension. The extraordinary suspension stroke and monster tires permit the TXT-1 to deal with the most difficult of roadways.

510mm Giant
This gargantuan R/C vehicle has a complete duration of 510mm and a complete width of 385mm. The model emulates the crushing energy demonstrated by real-sized US monster tucks as they pound their means over rows of junkyard automobiles. This excellent colossus needs no roads, just grab the transmitter and watch as the TXT-1 paves a course of its.

See the powerful TXT-1 for action!
You can now browse the TXT-1's hardcore off-road performance with only the simply click of the mouse. The TXT-1's sheer power lets it tackle the harshest terrain- no roadways, not a problem. But don't simply take our word for it, click on the website link below to check it away!

• General size: 510mm, General width: 385mm, Overall height: 297mm
• Minimum clearance: 49mm
• Body weight completely equipped: 5,010g (including TP-S3003 servo x 2, TP-R122JE receiver, and RC2400SP battery)
• Wheel base: 330mm
• Tread (front side and back): 280mm
• Chassis product: aluminum
• Chassis type: ladder frame
• Steering tie rods: divided in 2 segments
• Suspension system (front side and back): 4-link rigid
• Caster angle (f/r): 0 deg.
• Camber angle (f/r): 0 deg.
• Toe angle (f/r): 0 deg.
• Dampers (f/r): CVA damper
• Drive train: shaft drive 4WD
• Gear ratio: 34:1
• (2) kind 540 motors
• Diff gear system (f/r): 3 bevel diff
• Speed controller: 3-step speed controller
• Tire width (f/r): 106mm
• Tire diameter (f/r): 165mm
• Tire pattern (f/r): Lug pattern

• R/C product: Adspec GT-II or 2 channel 2 servo-type transmitter
• Battery: Tamiya 7.2V battery pack
• Receiver batteries: (4) R6/AA/UM3
• Transmitter batteries: (8) R6/AA/UM3

�ELECTRIC KITS REQUIRE: (unless claimed in a different way above)

• Broadcast: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Items: Building and track gear
